Photo DIY- Parking/Emergency Brake Shoe R/R
Topic Tools Message Format
Author
Posted 7/20/2014 11:02 PM
G-AMG
G-Class DIY Host




Date registered: May 2006
Location: South Texas
Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350
1000
Photo DIY- Parking/Emergency Brake Shoe R/R

Well, "While I'm at it.... WHY Not Do the Parking/Emergency Brake??? It *IS* a very Important Component to the Braking System, ?NO?"

Uffff, Big mistake.

This Job was quite the pain in the Ca-tukus!! I would not recommend it for the "Faint of Heart".

*MAJOR CAVEAT TO ALL- THIS IS NOT THE WIS-Specified WAY OF DOING THIS PROCEDURE!!!!!*

With the Advice of my Dealer-Shop-Foreman-Friend, he thought I could get away WITHOUT taking the Rear Exhaust Apart.... Removing the Rear Seats.... Lot's of "Extra" steps in order to De-Tension the Parking Brake Automatic Tensioning System.

Sooooo, I was **EXTREMELY CAREFUL** to not let the Parking Brake Tensioning Plate at the Bottom, become Dislodged!!

If I had it to do over again, I DON'T think I would have tackled the job.

Getting the Retracting Springs back in took QUITE a long time!!

Anyhooo, since I did the work, I might as well show the NON-STANDARD method I came up with.

It is NOT intended as a guide, and I would suggest you Consult Manual/WIS and do it the "By-the-Book" method. This is for your entertainment value/Laughing at me purposes ONLY.

Please See the "Rear Brake Pad/Rotor R/R" Post to get to the point where you can remove the rear Shoes:

http://www.pointedthree.com/disc/forums/showthread.php?tid=21742&po...

G

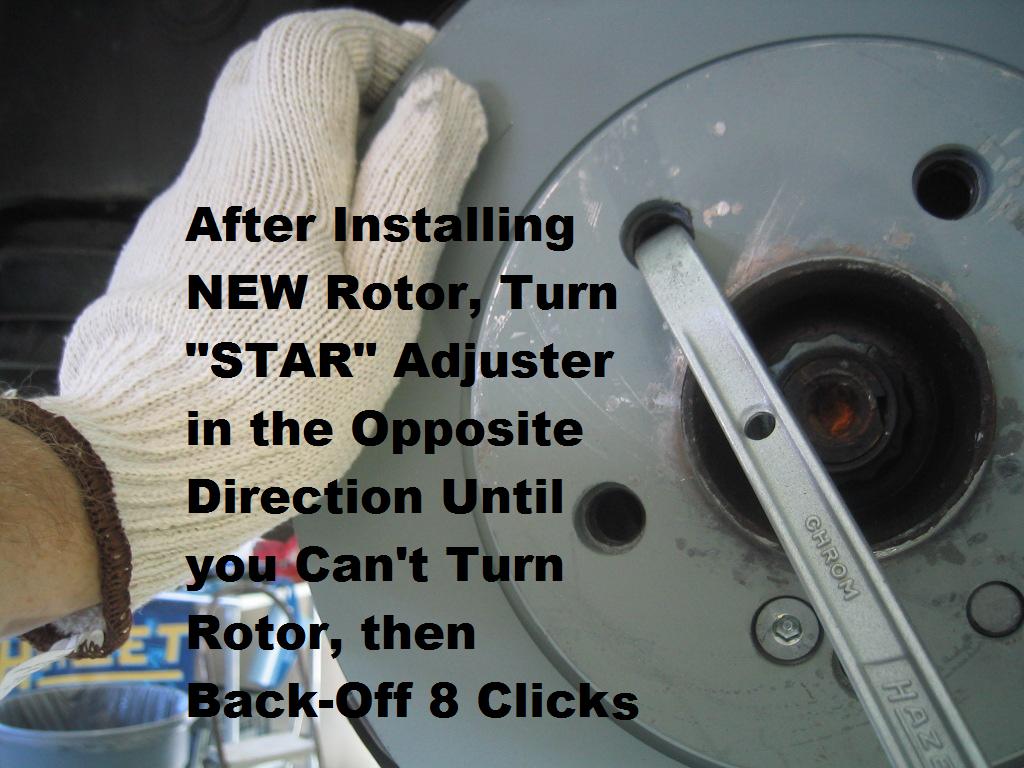

(1.jpg)

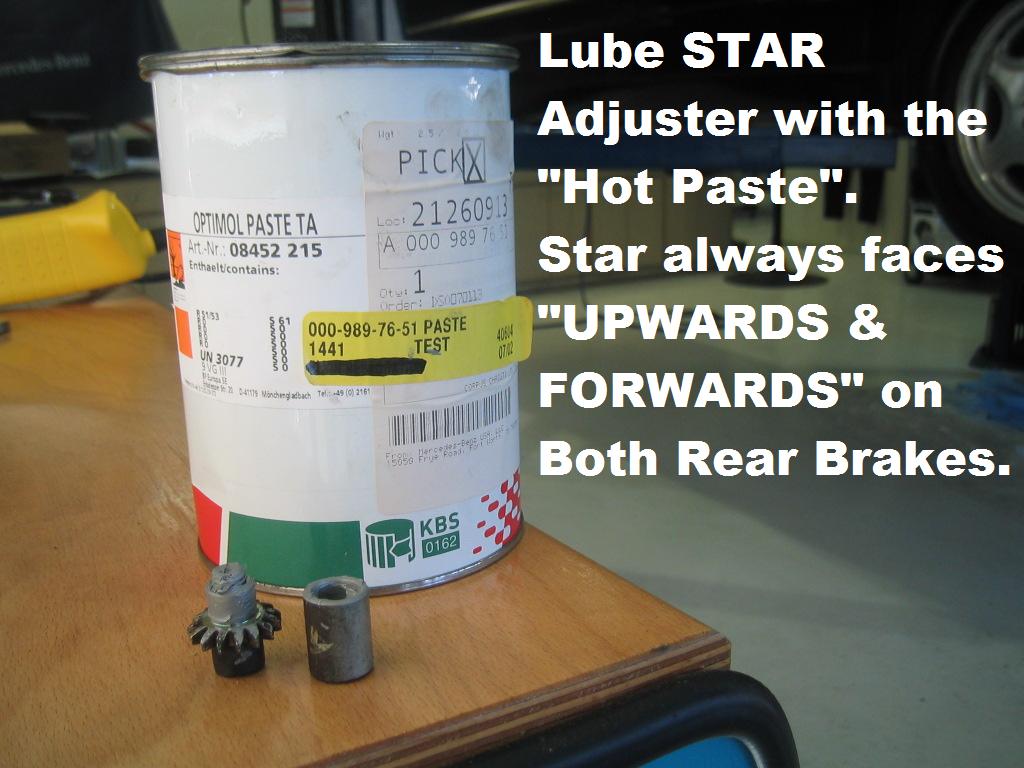

(2.jpg)



(3.jpg)



(4.jpg)



(5.jpg)



(6.jpg)



(7.jpg)



(8.jpg)



(9.jpg)



(10.jpg)



(11.jpg)



(12.jpg)



(13.jpg)



(14.jpg)



(15.jpg)



(16.jpg)
