Photo DIY- Rear Sway Bar Link/Bushing R/R Corrected
Topic Tools Message Format
Author
Posted 8/17/2014 3:05 PM
G-AMG
G-Class DIY Host




Date registered: May 2006
Location: South Texas
Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350
1000
Photo DIY- Rear Sway Bar Link/Bushing R/R Corrected

Per my previous posts, I have the unfortunate situation of a BROKEN left rear Sway bar Link.

Yes, Yes, I accept full responsibility for my Self-Inflicted Wound. I should have listened to my "Inner-Voice" (a la Magnum P.I.) and Kept the car out of Service... Very Time-Consuming "Oooops". As you can see, the rear Axle shaft got destroyed with the Sway Bar Link Missing.

WHY in the heck they would use a PLASTIC Sway-bar link on such a heavy, Over-Engineered vehicle, I will never understand...

Anyhoooo, although WIS specifies removing the entire Rear Sway bar? I just did one side at a time and had Zero problems doing it this way. Plus, with one side secured, at a time, there is no risk of the Bar moving significantly.

G



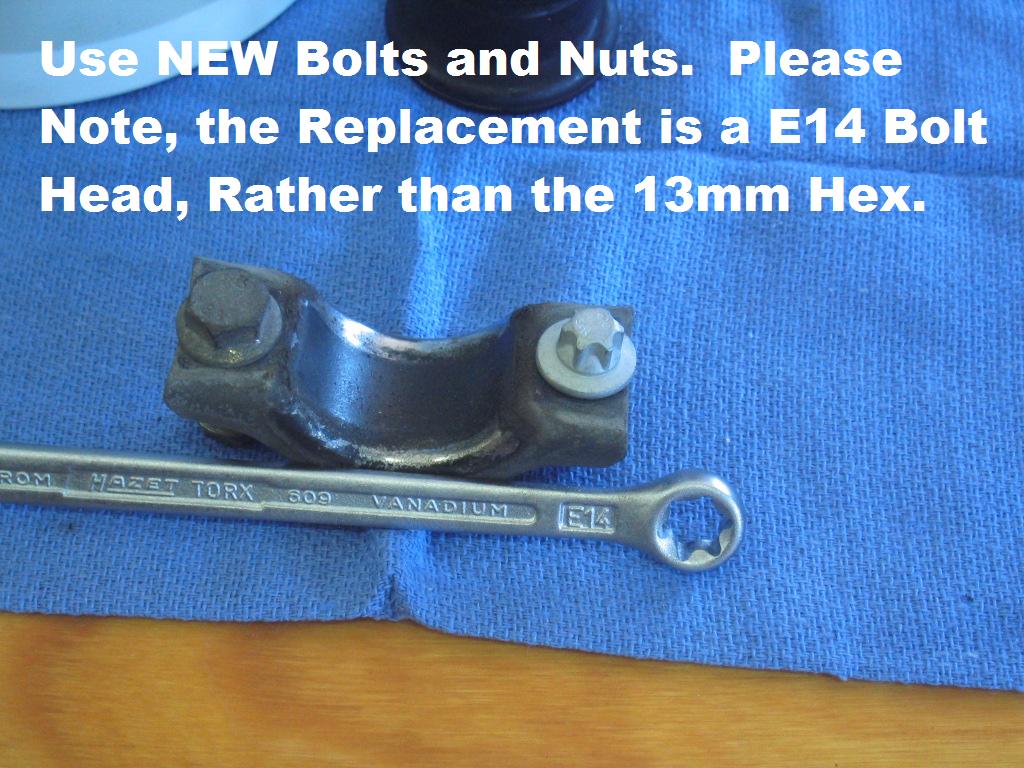

(0.jpg)



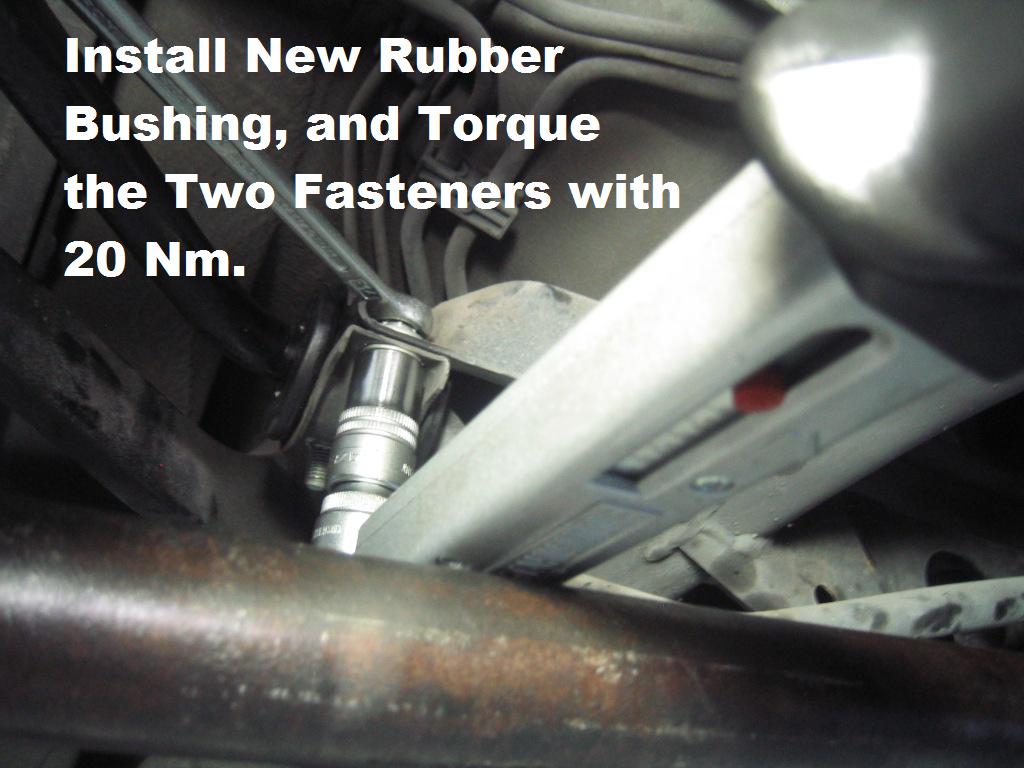

(1.jpg)



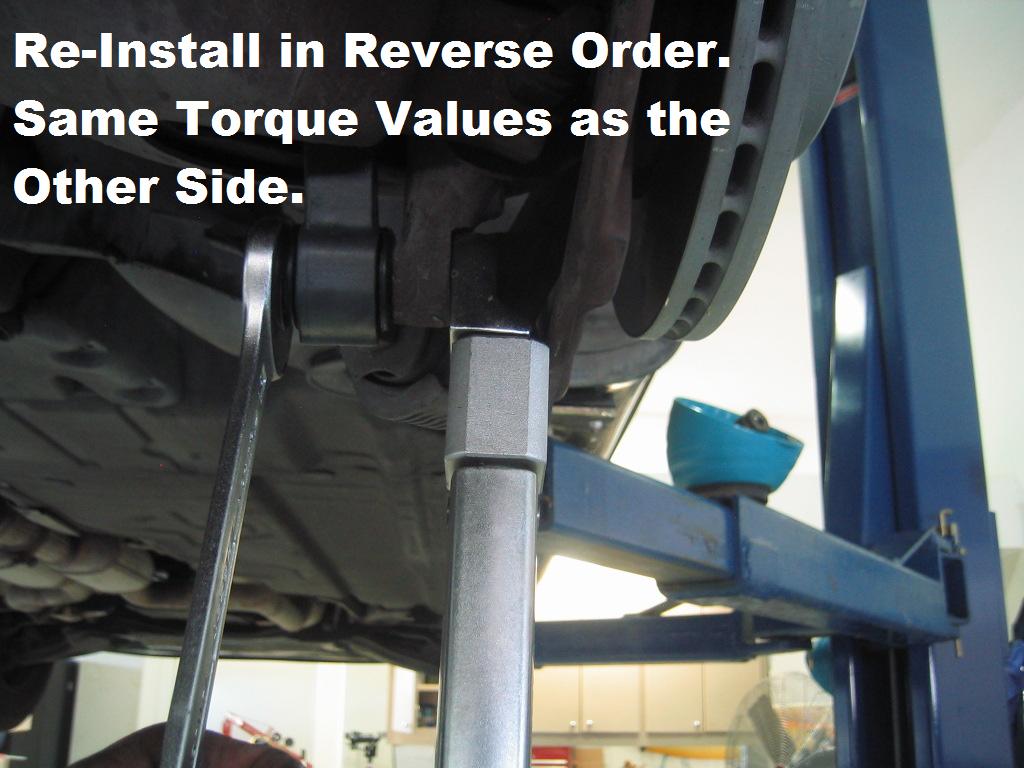

(2.jpg)



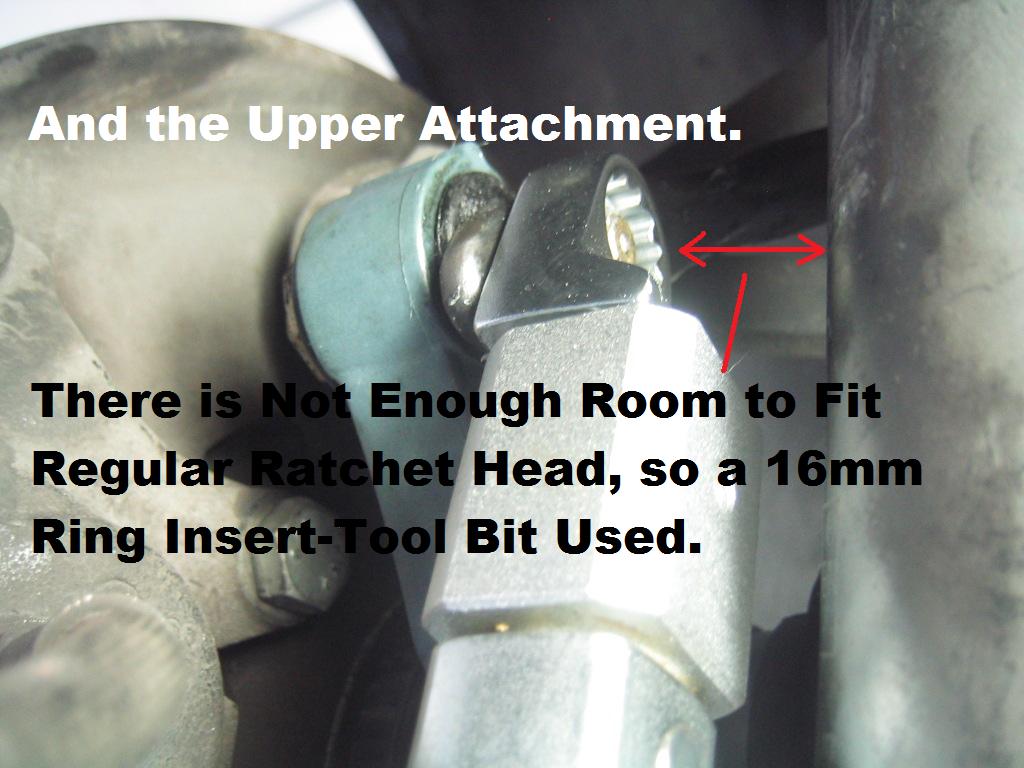

(3.jpg)



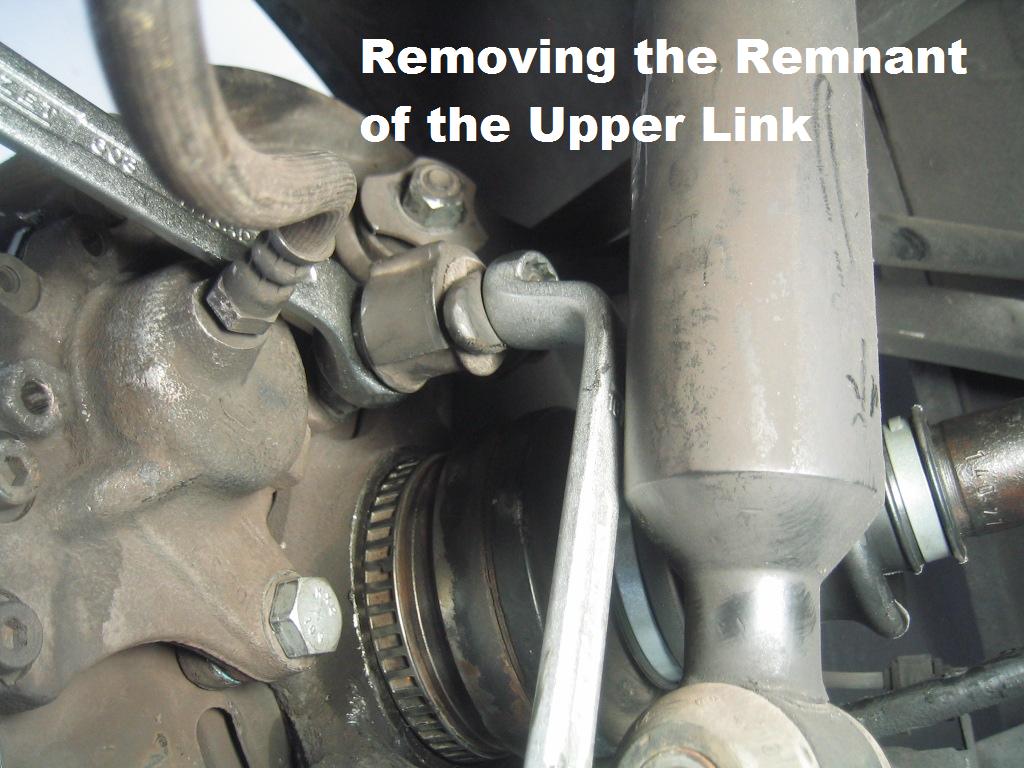

(4.jpg)



(5.jpg)



(6.jpg)



(7.jpg)



(8.jpg)



(9.jpg)



(10.jpg)



(11.jpg)



(12.jpg)



(13.jpg)



(14.jpg)



(15.jpg)



(16.jpg)



(17.jpg)
