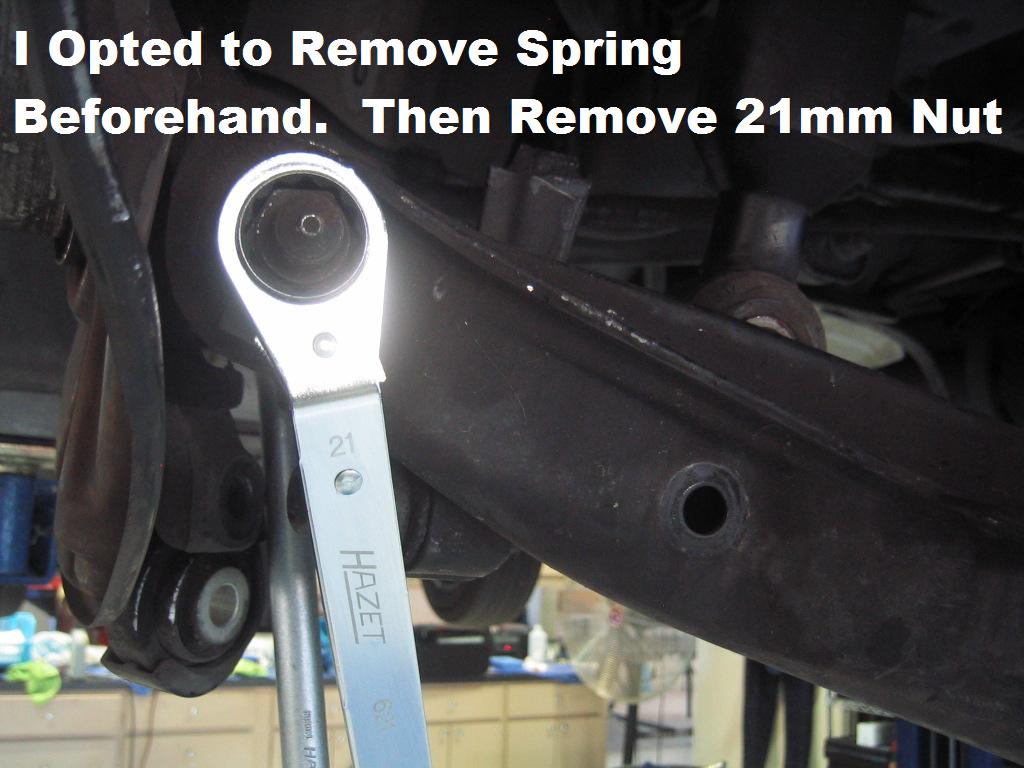

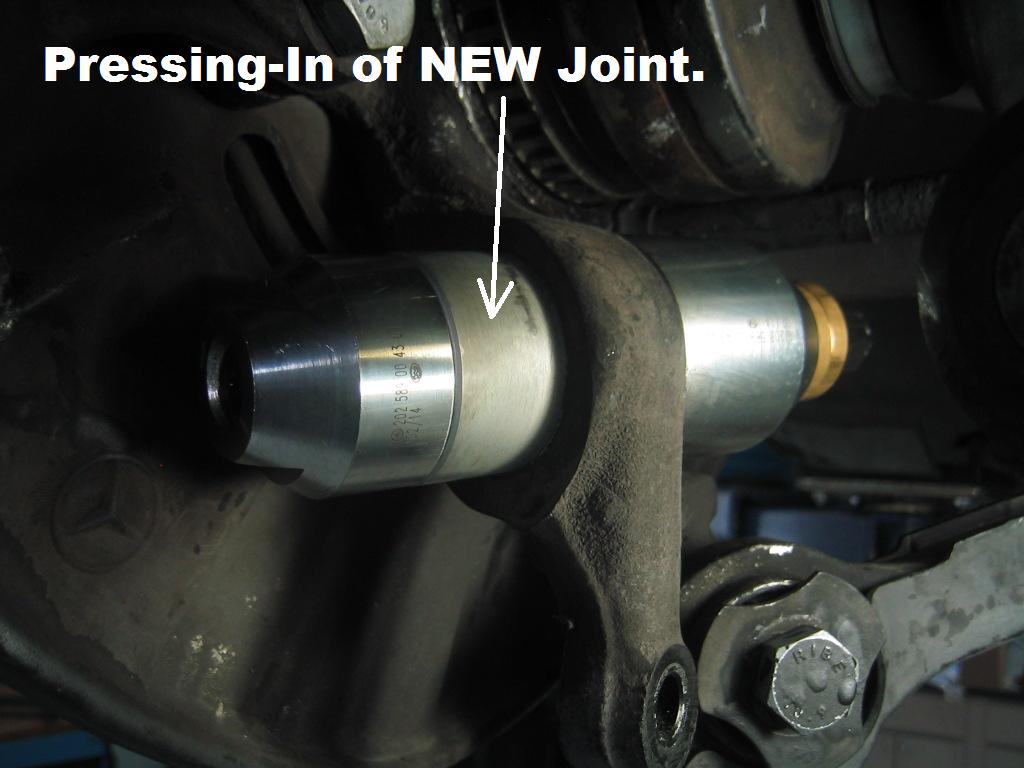

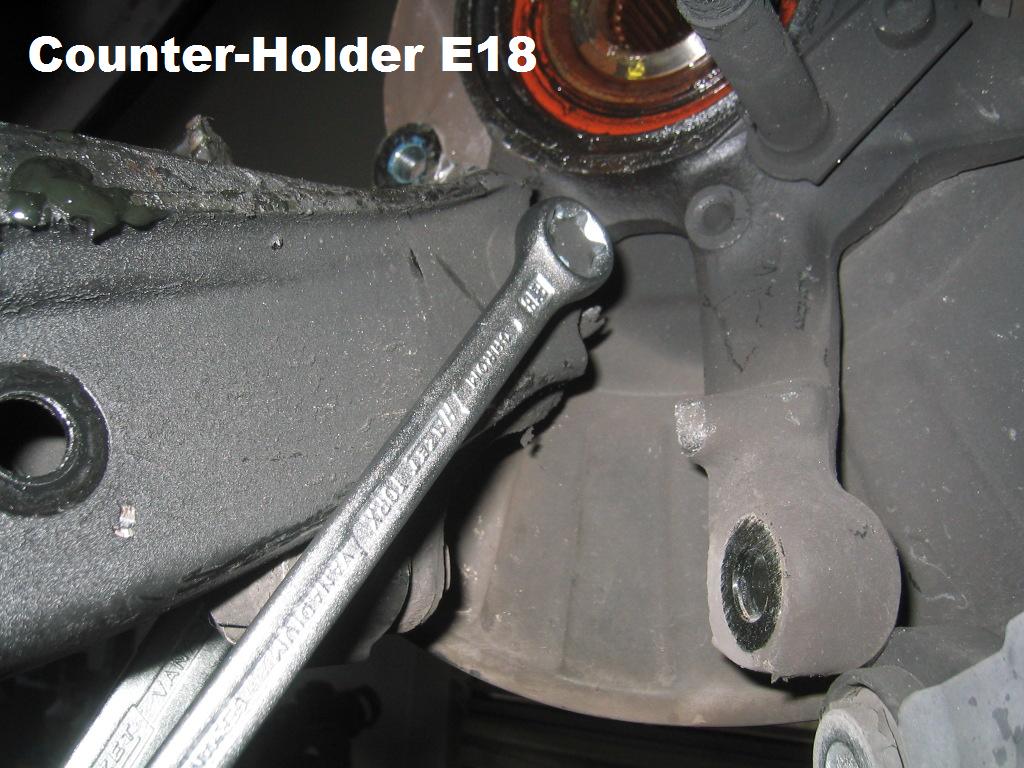

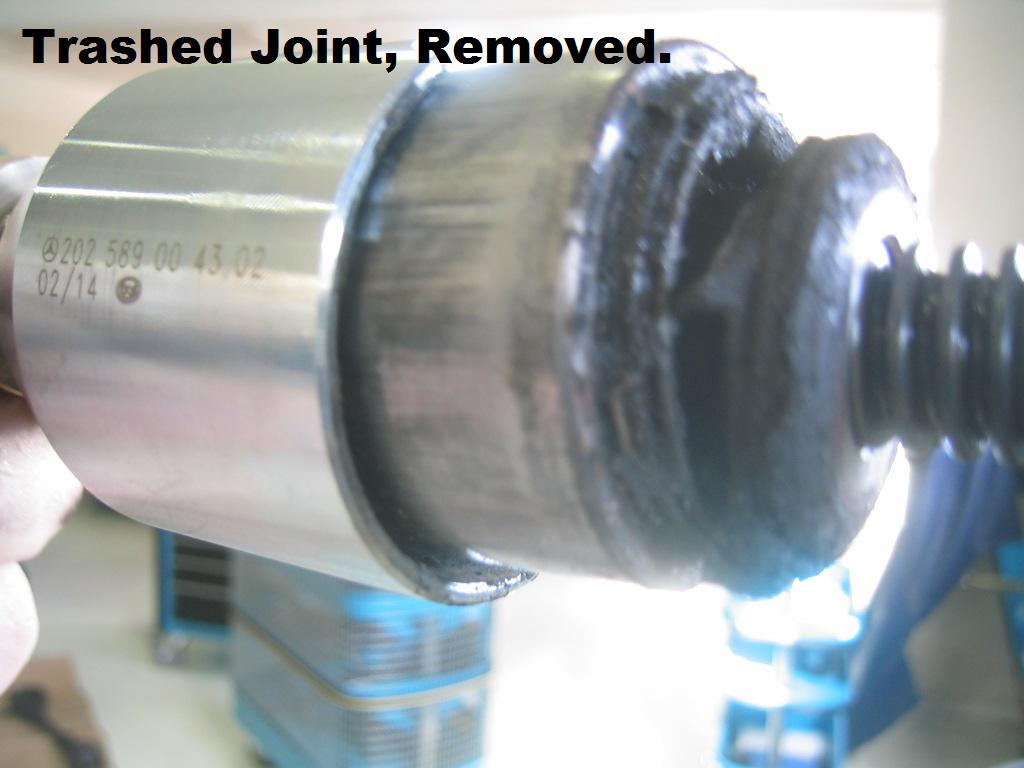

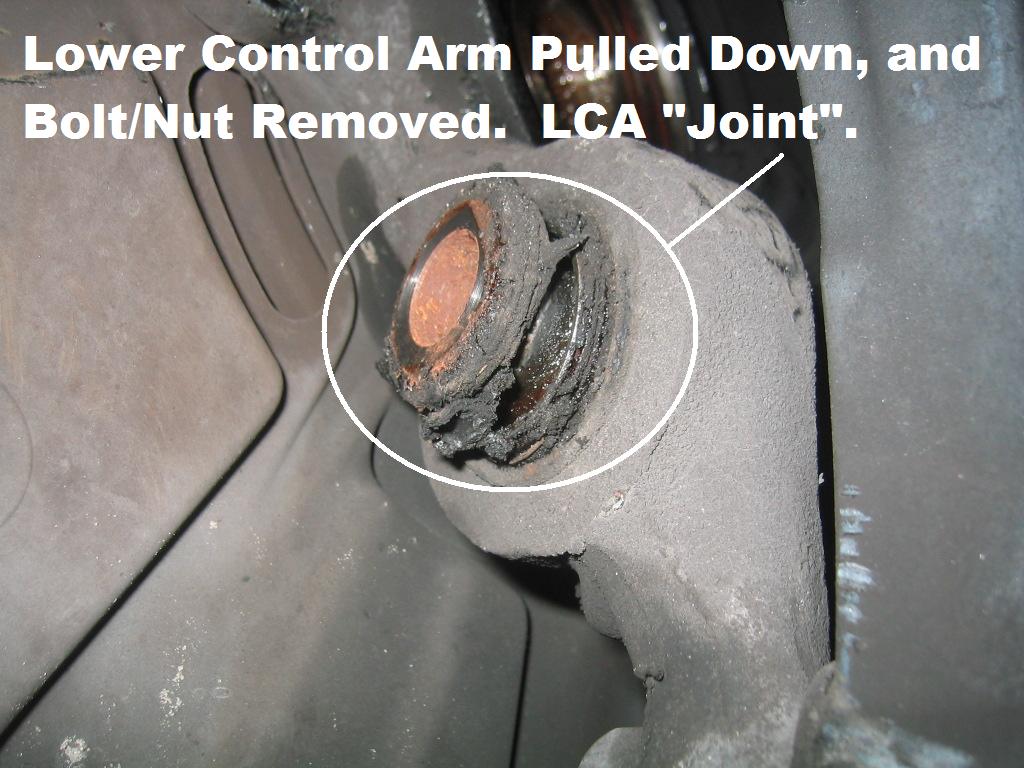

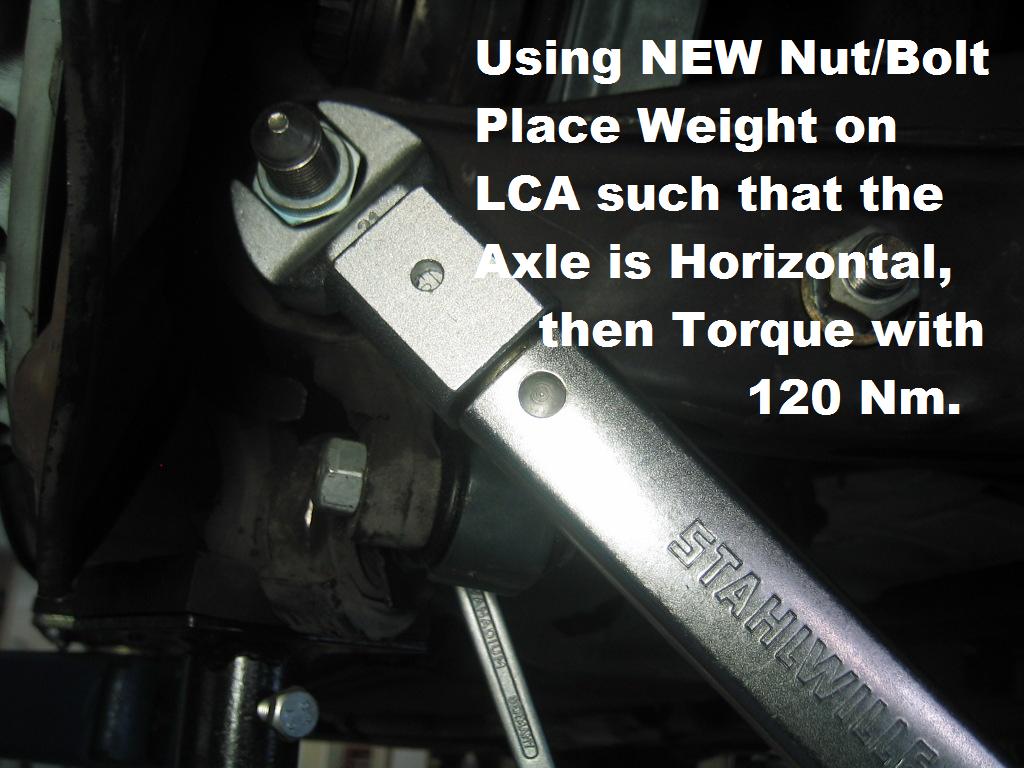

| G-AMG G-Class DIY Host Date registered: May 2006 Location: South Texas Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350  | Photo DIY- Rear Lower Control Arm Supporting Joint R/R While Repairing the Rear-End of the Queen, I found the LCA supporting joint TOTALLY Trashed. Here is a Video Clip of how Loosy-Goosy, it was: https://www.youtube.com/watch?v=gQLmt8a7Whk&feature=youtu.be I think you could probably do the job with the Rear Spring installed, "I" felt it safer to not be working under "Tension", so I removed the spring tension. Please refer to this post for R/R: http://www.pointedthree.com/disc/forums/showthread.php?tid=19900&po... (1.jpg) (2.jpg) (3.jpg) (4.jpg) (5.jpg) (6.jpg) (7.jpg) (8.jpg) Attachments ----------------  1.jpg (123KB - 56 downloads) 2.jpg (90KB - 63 downloads) 3.jpg (118KB - 60 downloads) 4.jpg (71KB - 56 downloads) 5.jpg (64KB - 64 downloads) 6.jpg (95KB - 59 downloads) 7.jpg (72KB - 57 downloads) 8.jpg (97KB - 65 downloads) | |
| ||
|
