Photo DIY- Instrument Cluster R/R with Bulb Changes.

Greets.

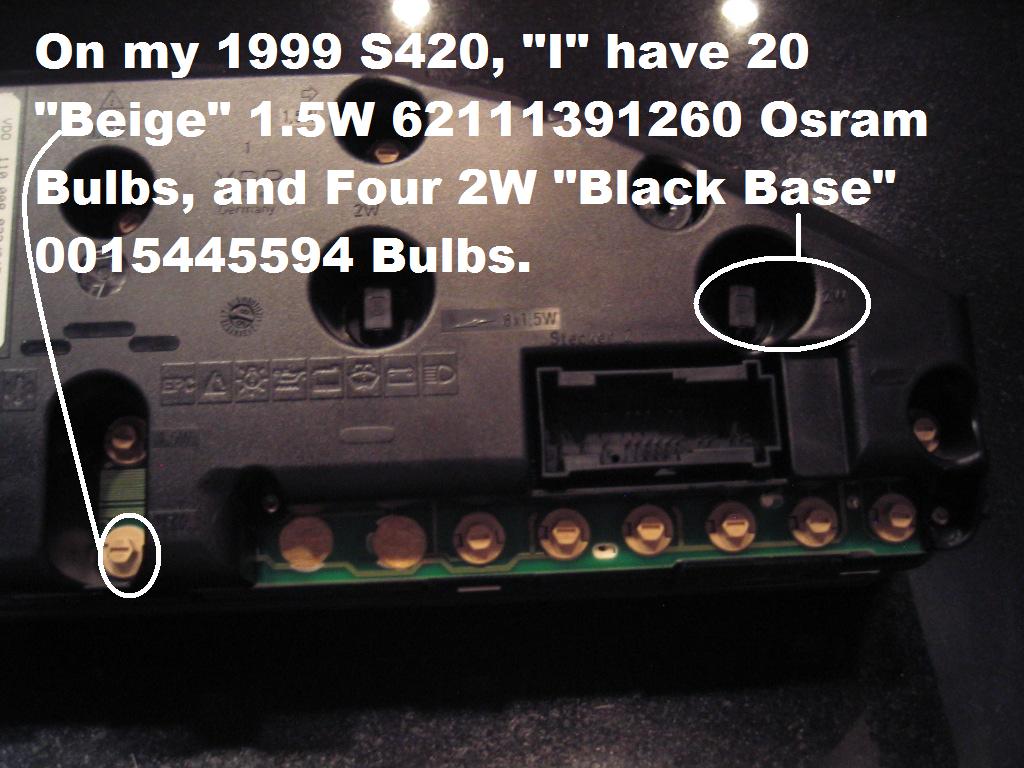

I realize there are different Variations on different years/models... but Still... I had a difficult time researching the "Type and Number" of Bulbs in the Instrument Cluster.

Surprisingly, even EPC does not give an actual Break-down of the type/# !!!

Sooo, I thought I would give "my" particular model and experience... a 1999 S420.


PLEASSEEEEE be very very Careful! These Clusters (by History) are "Sensitive" to Stresses, and have been know to Crack/Break, with is a Crazy-Expensive "Oooopppsss". Use care on both Removal AND Install!

Anyhoooo, I think the photos are self-explanatory...

G
#215587
Top of the page Bottom of the page
Author
Posted 7/11/2013 11:40 PM
G-AMG
G-Class DIY Host




Date registered: May 2006
Location: South Texas
Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350
1000
RE: Photo DIY- Instrument Cluster R/R with Bulb Changes.

1



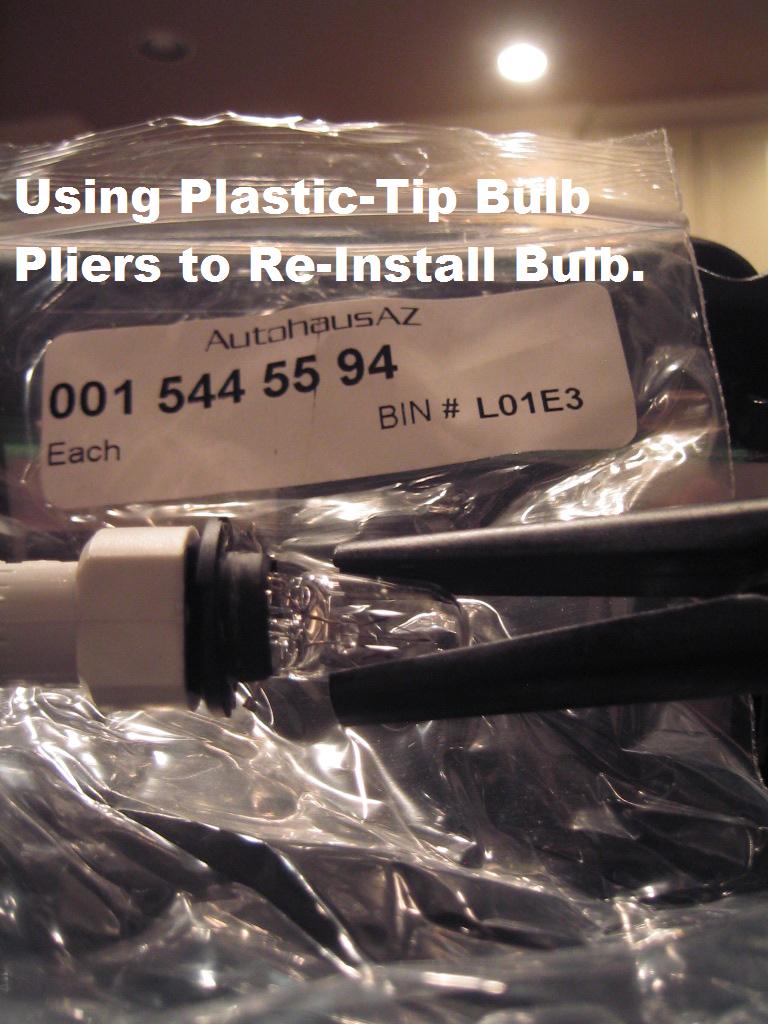

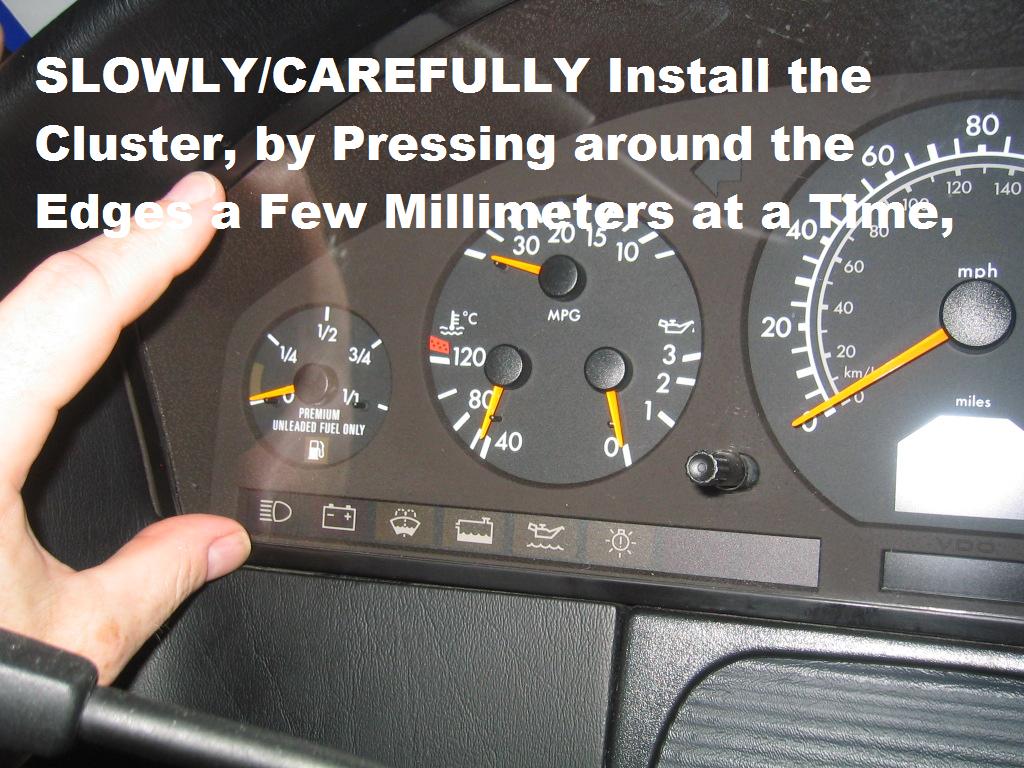

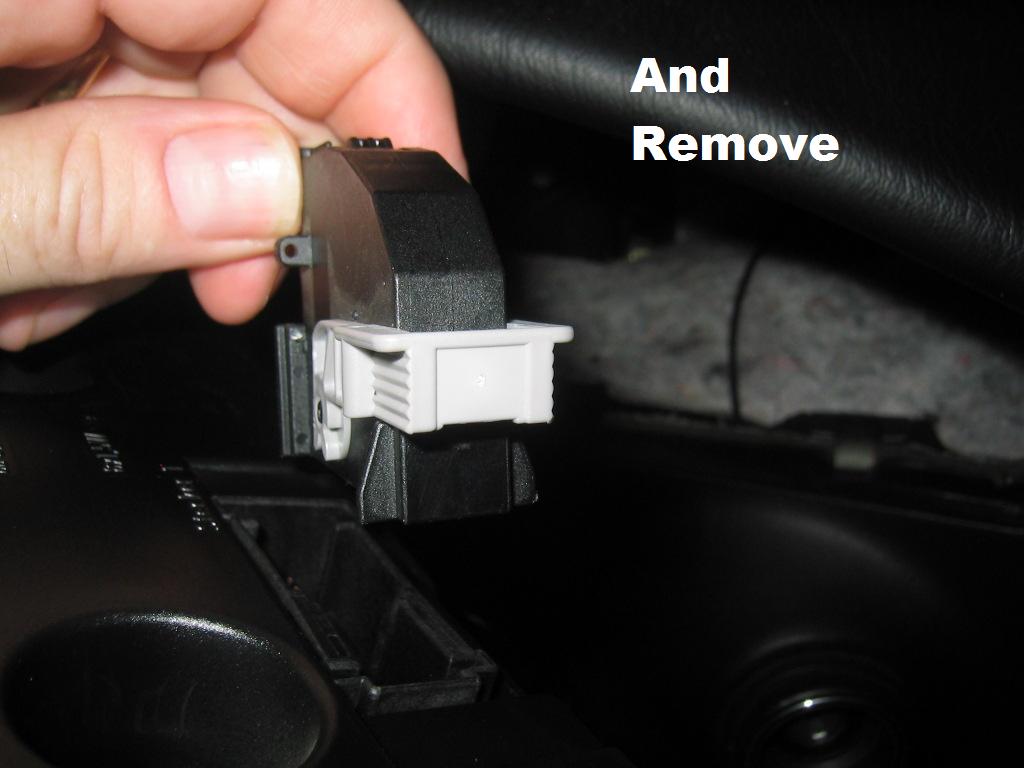

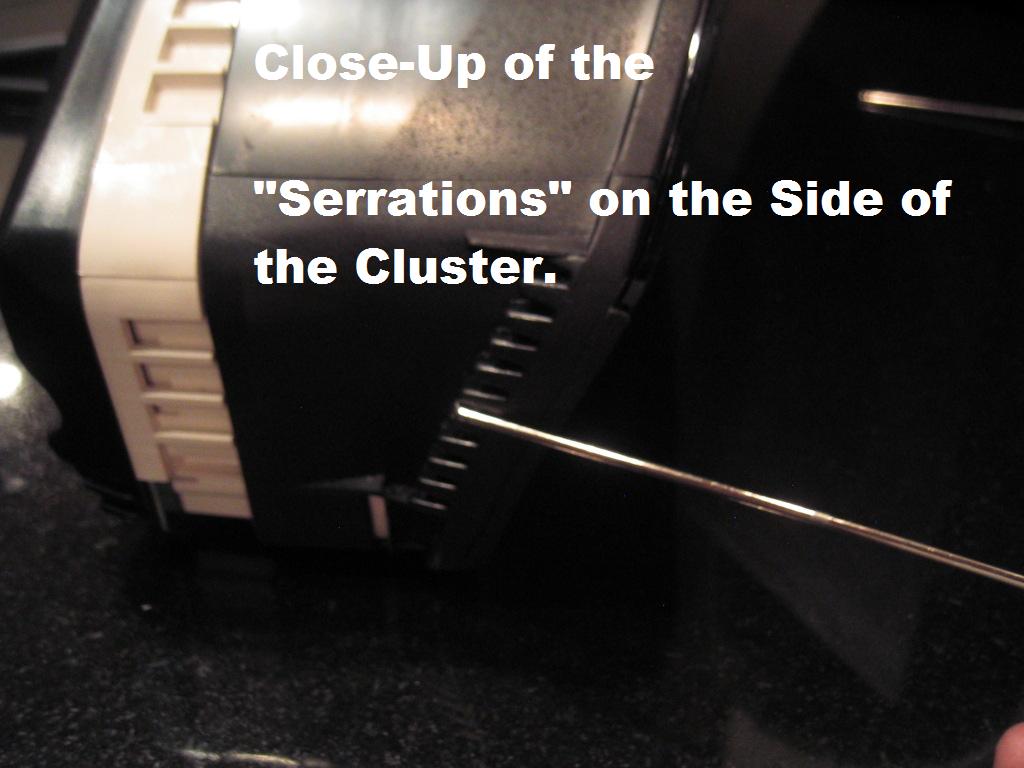

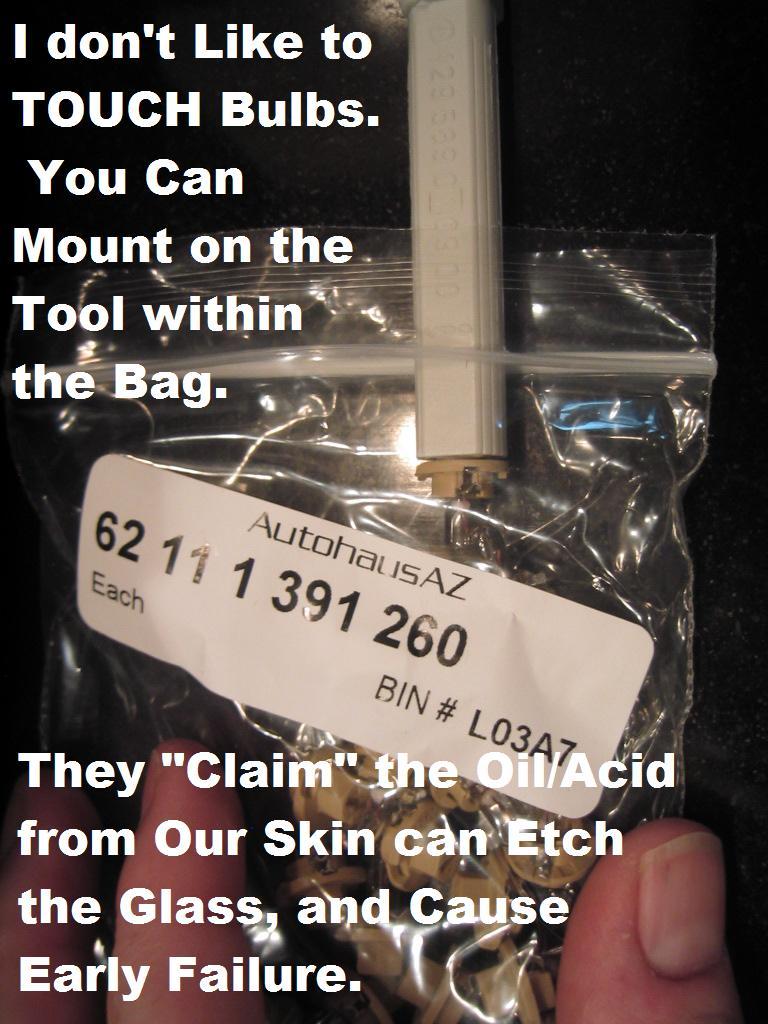

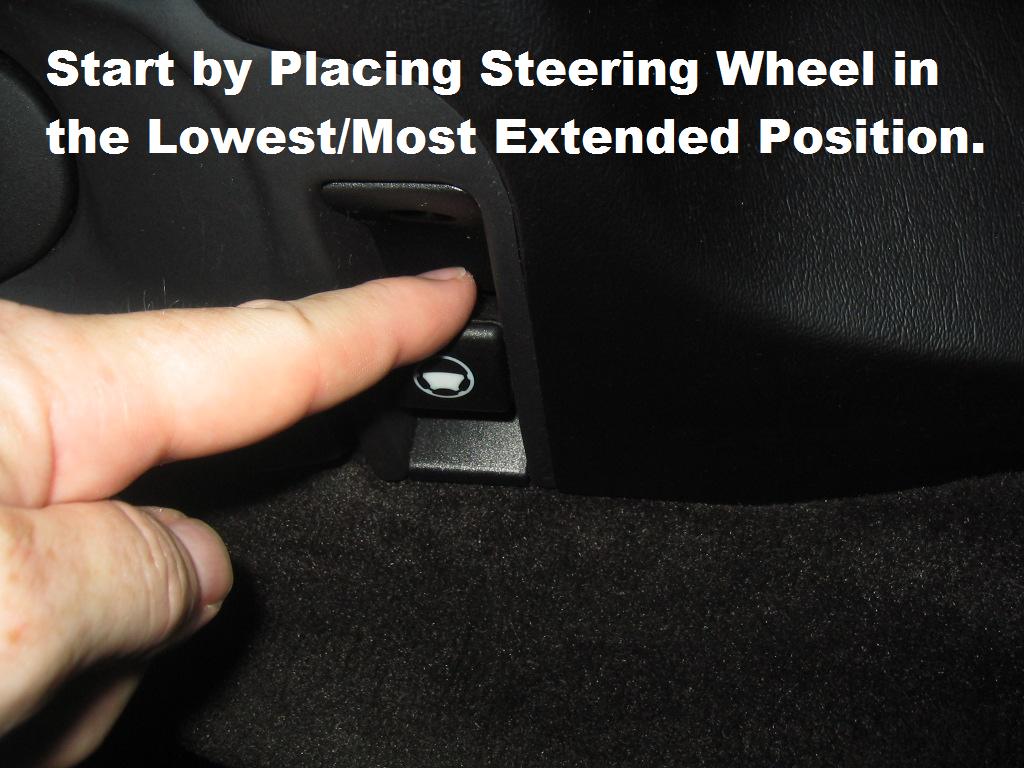

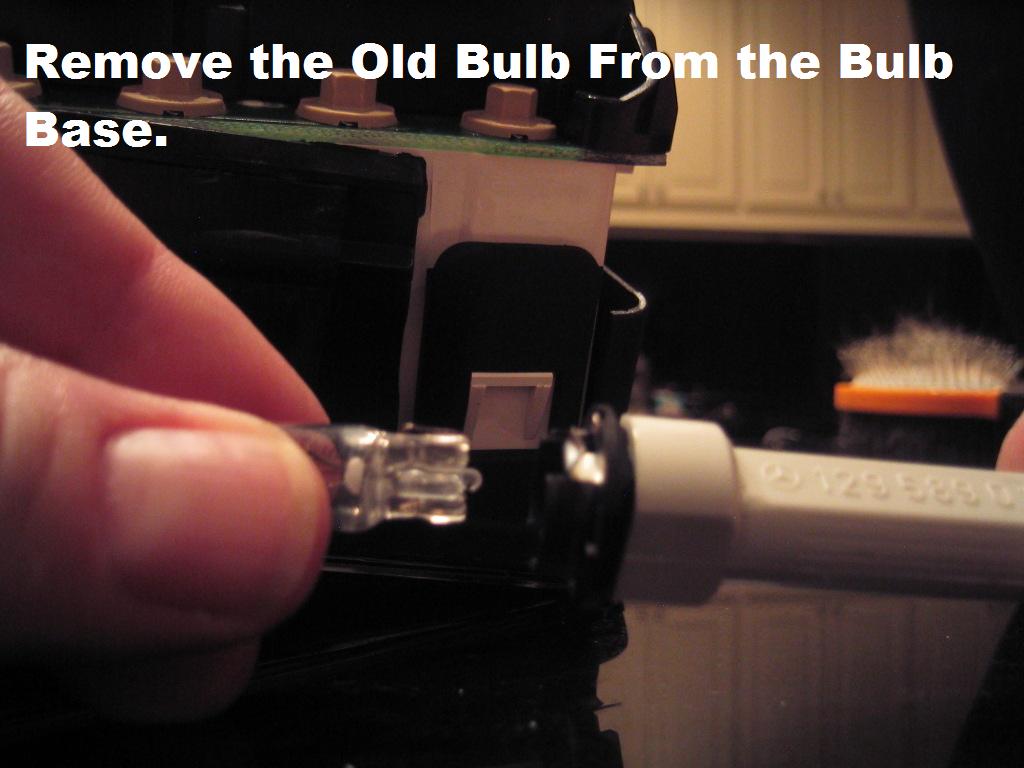

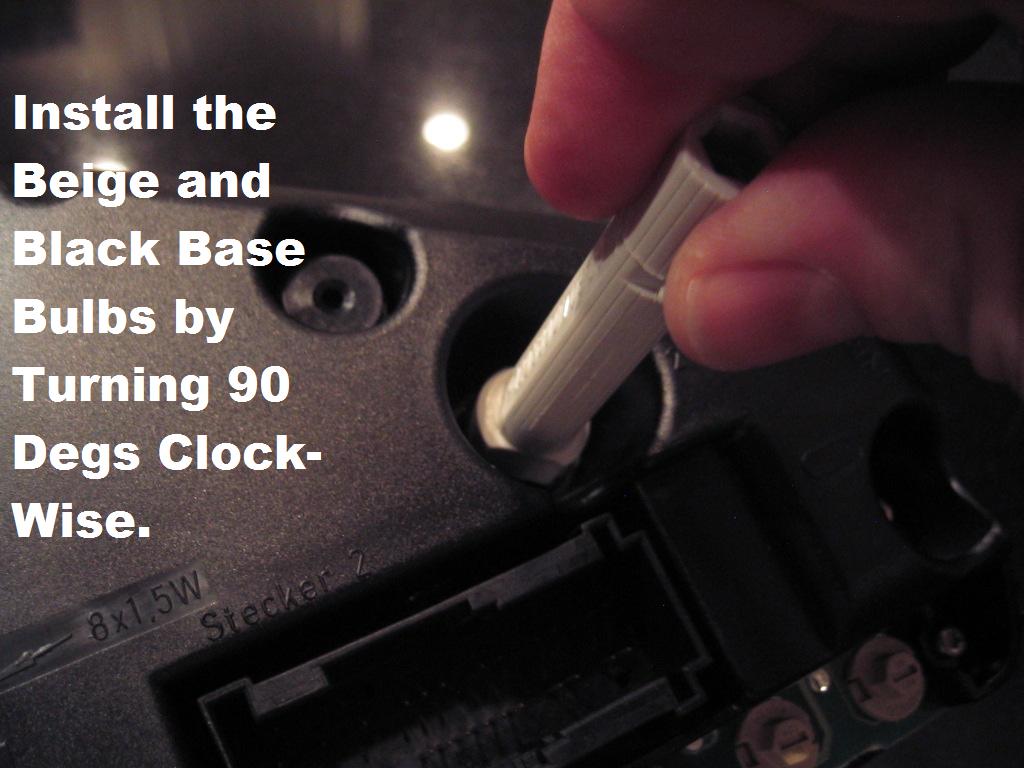

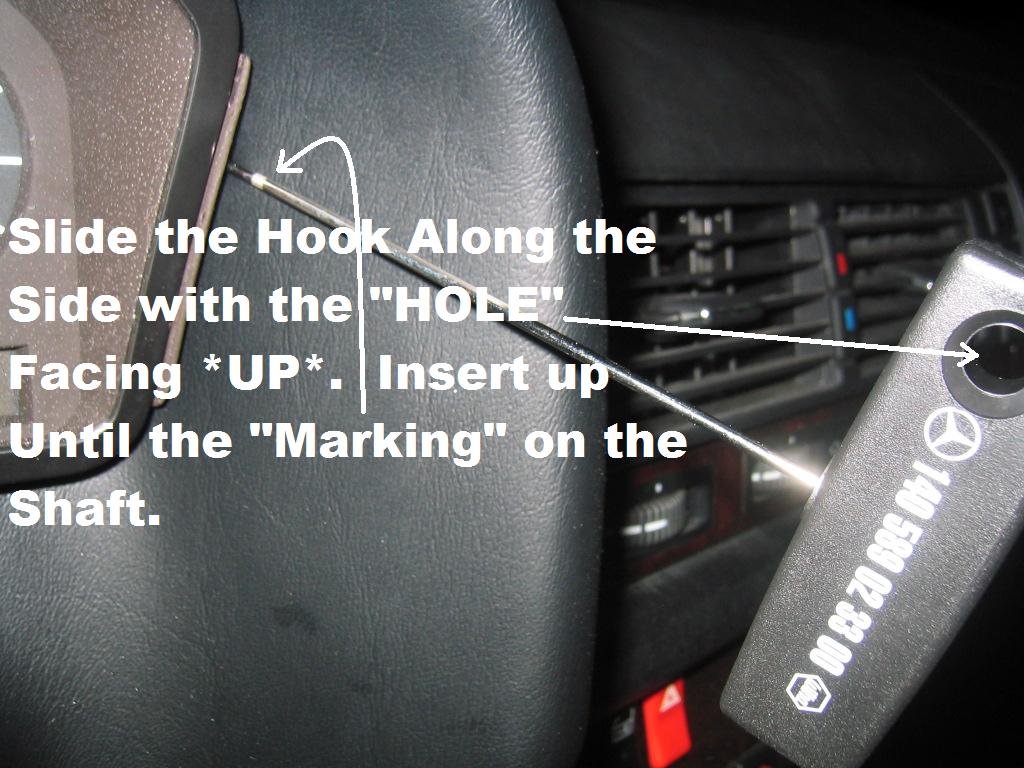

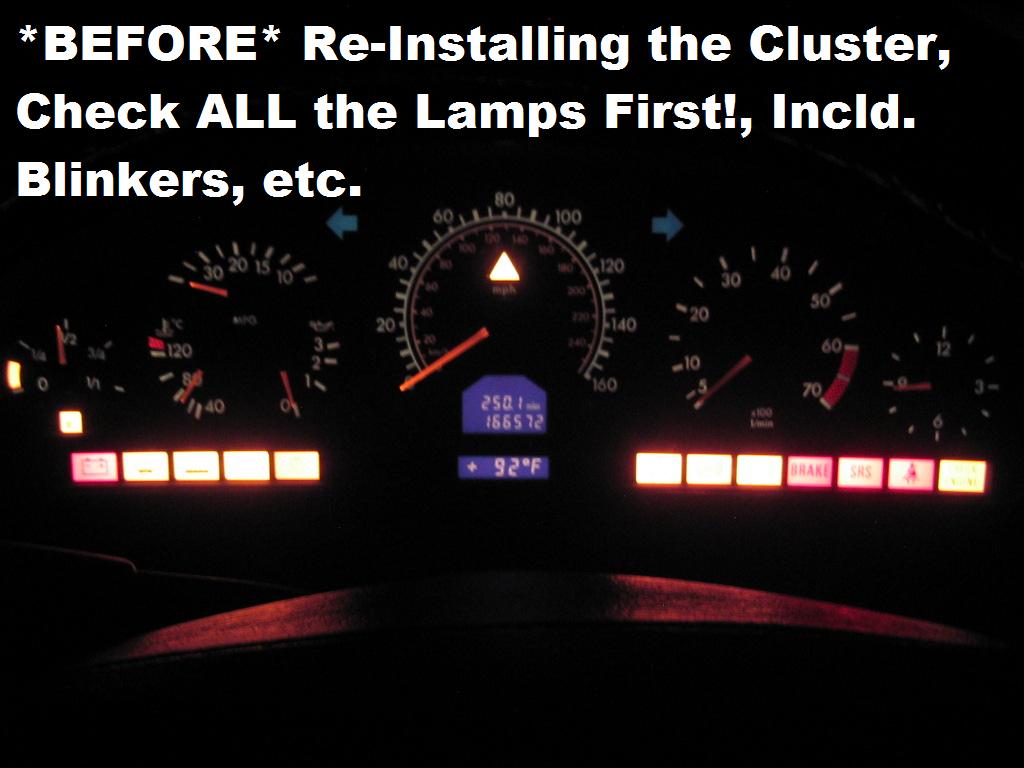

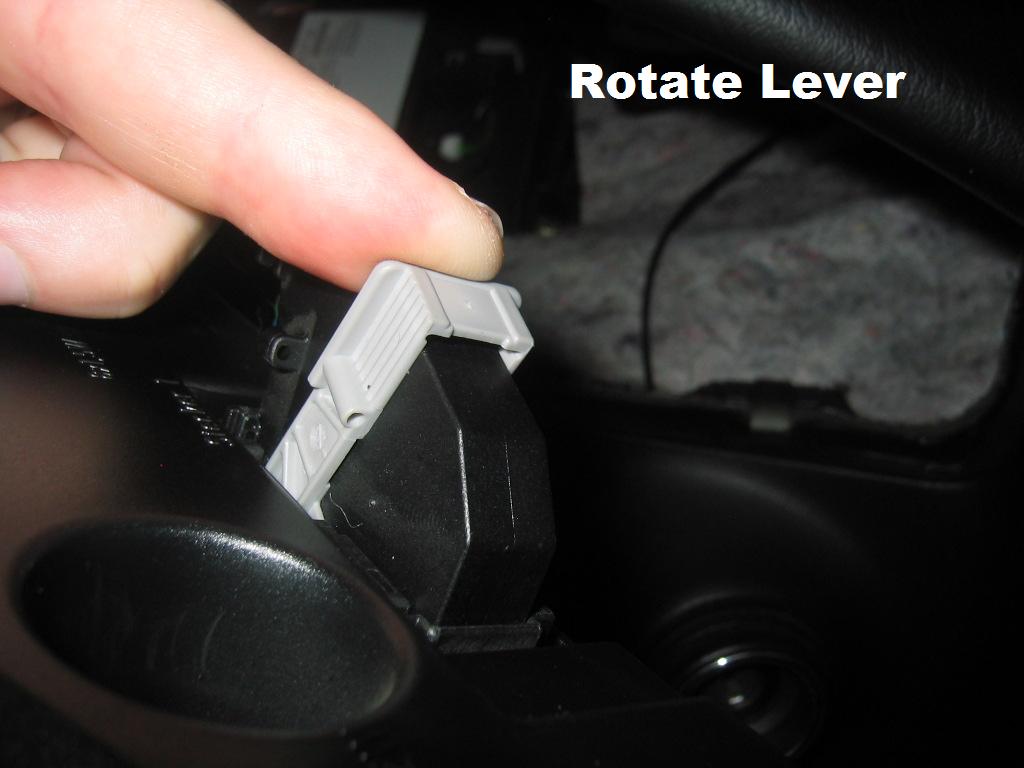

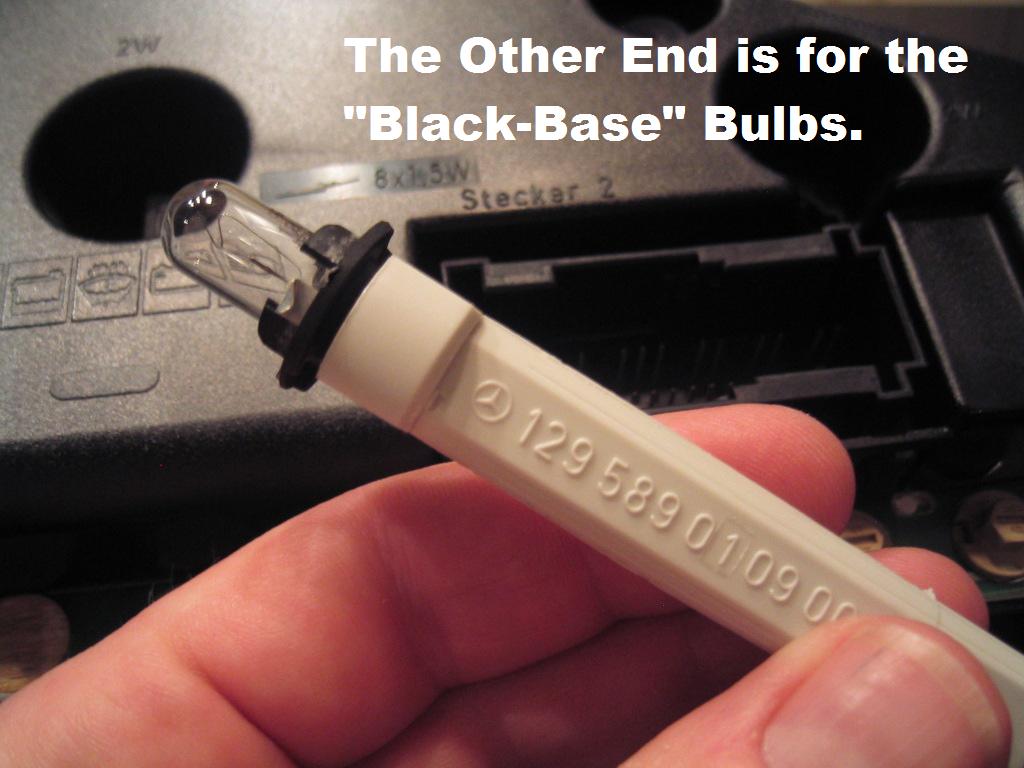

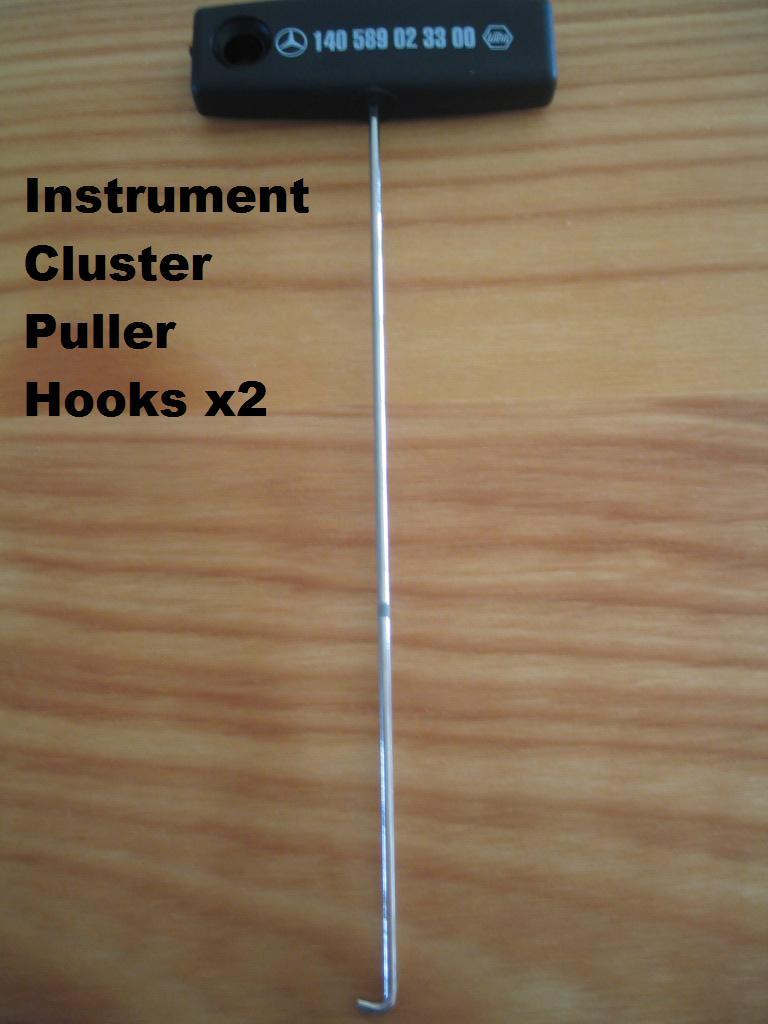

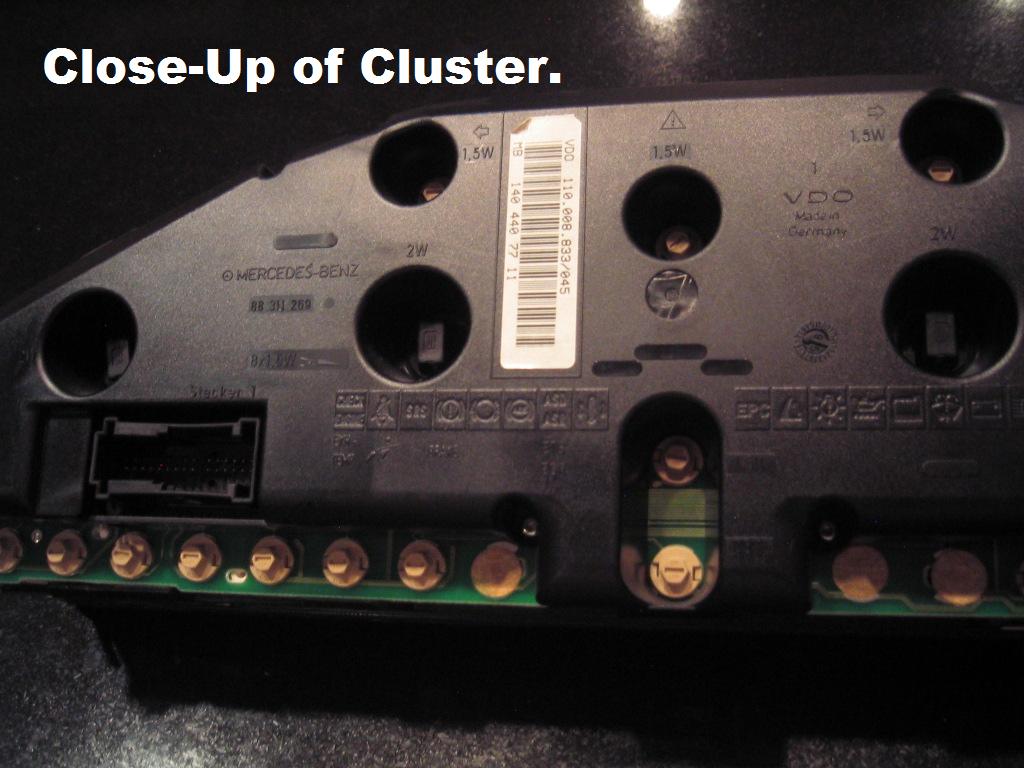

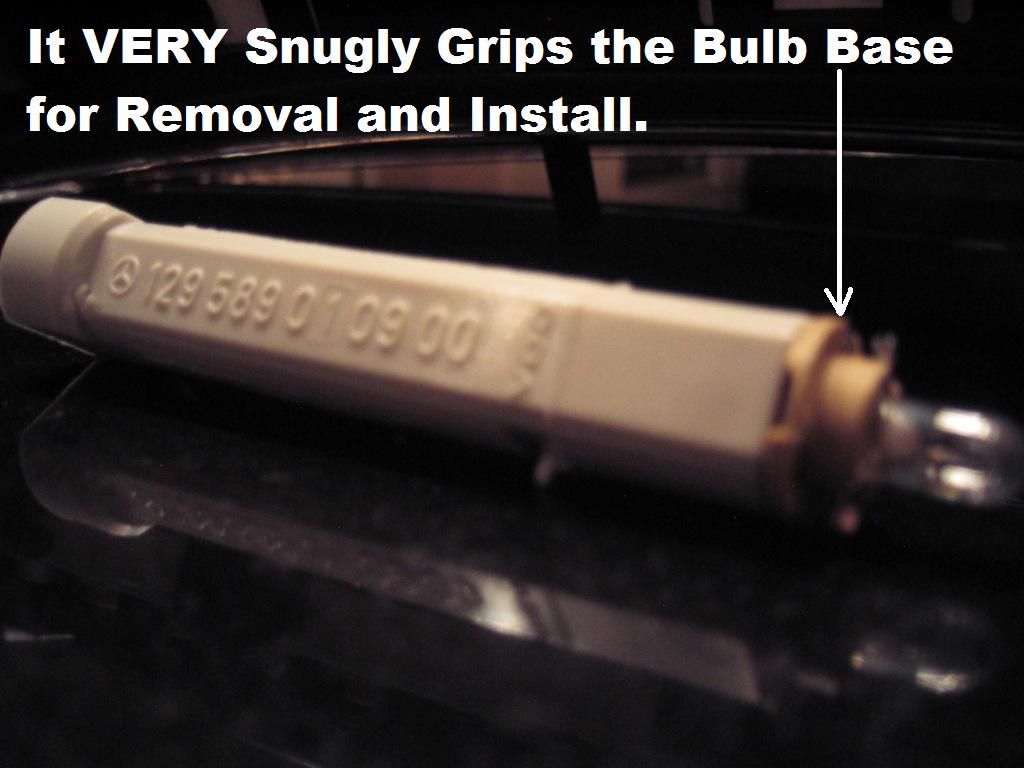

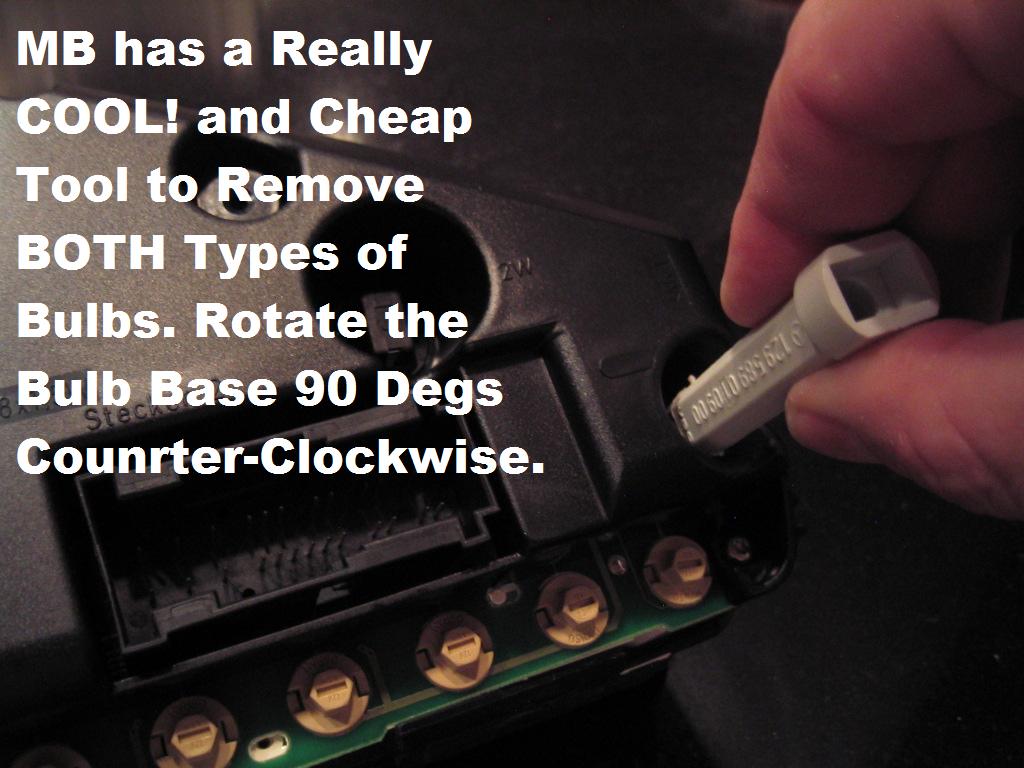

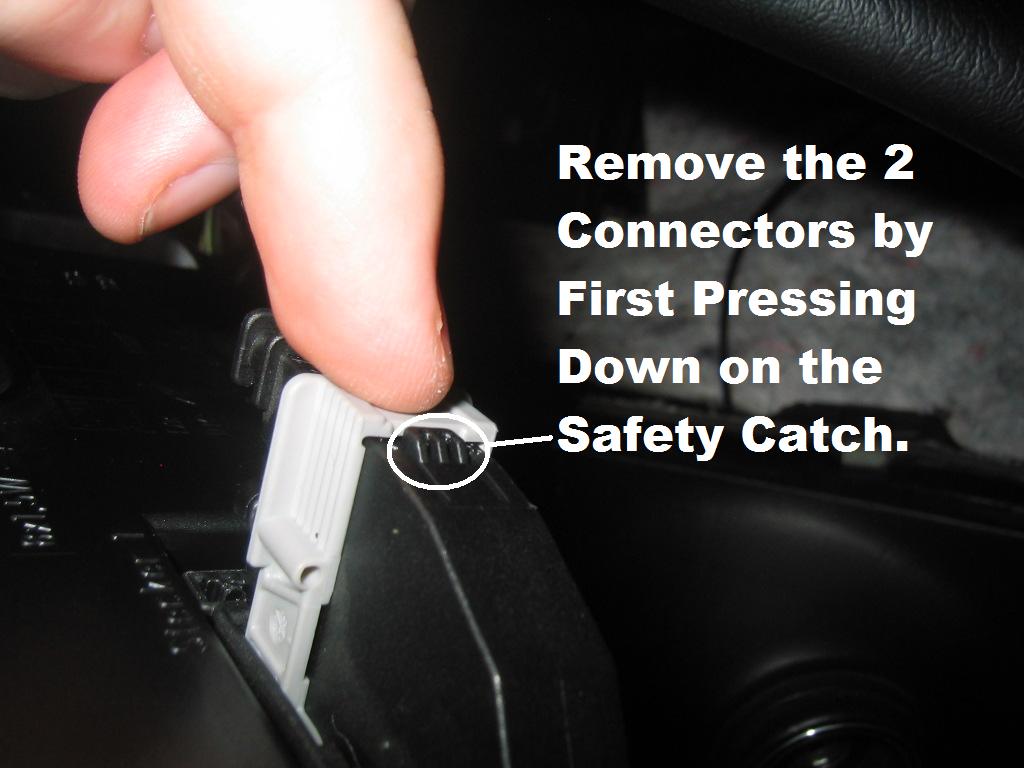

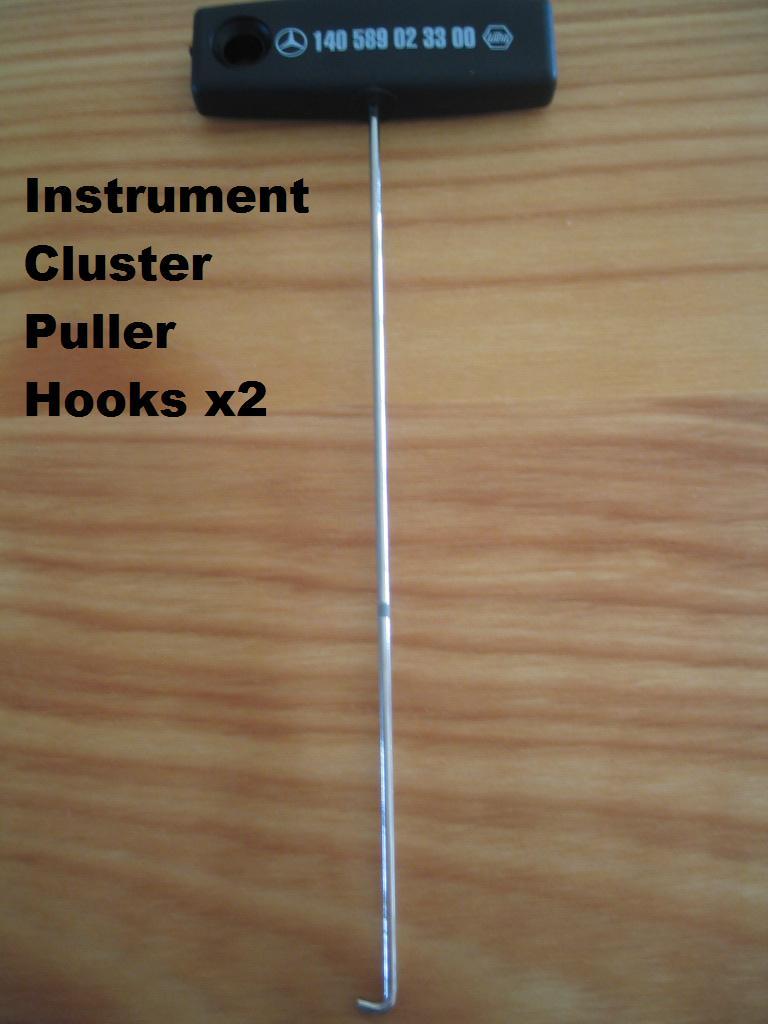

(0.jpg)



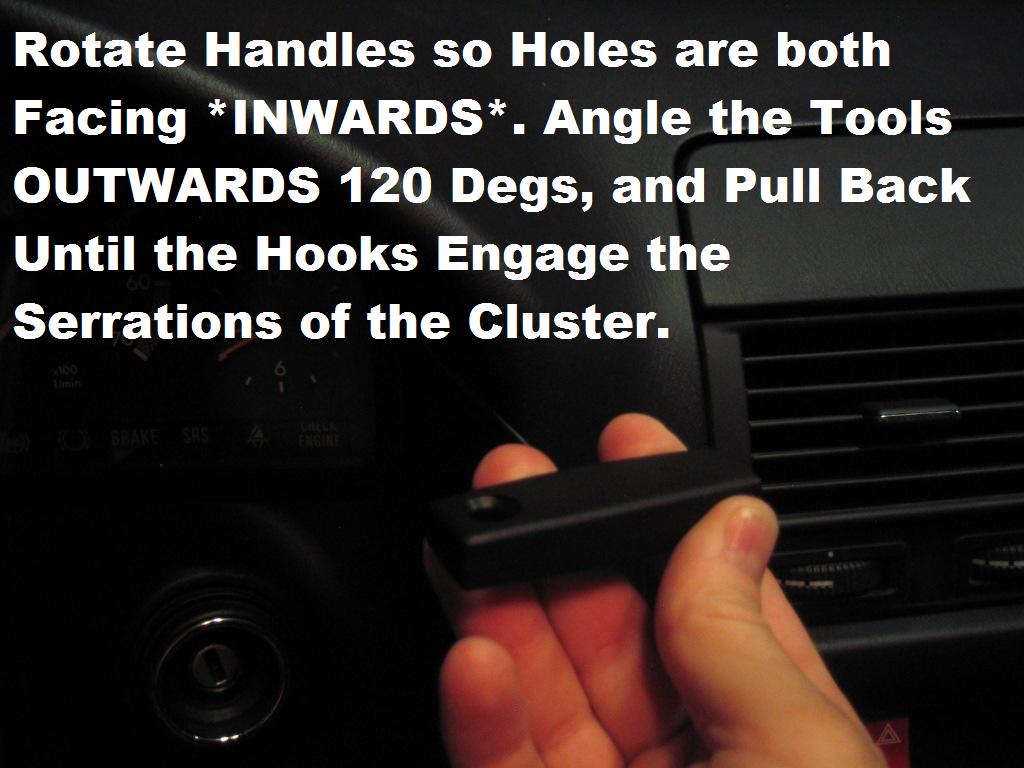

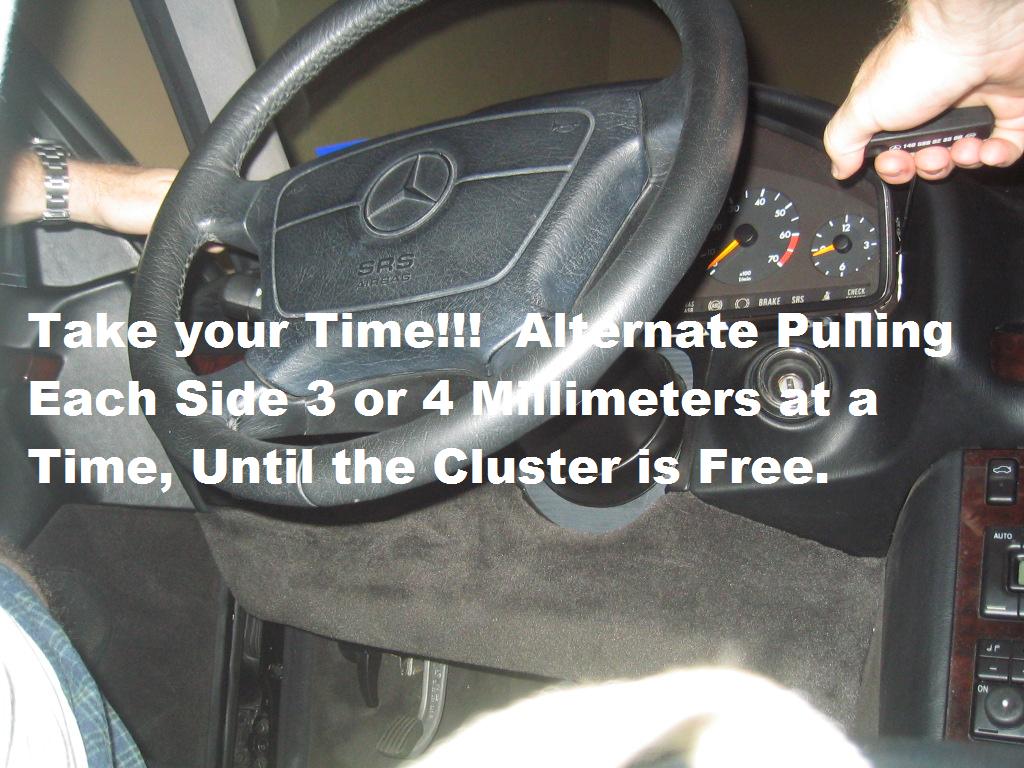

(1.jpg)



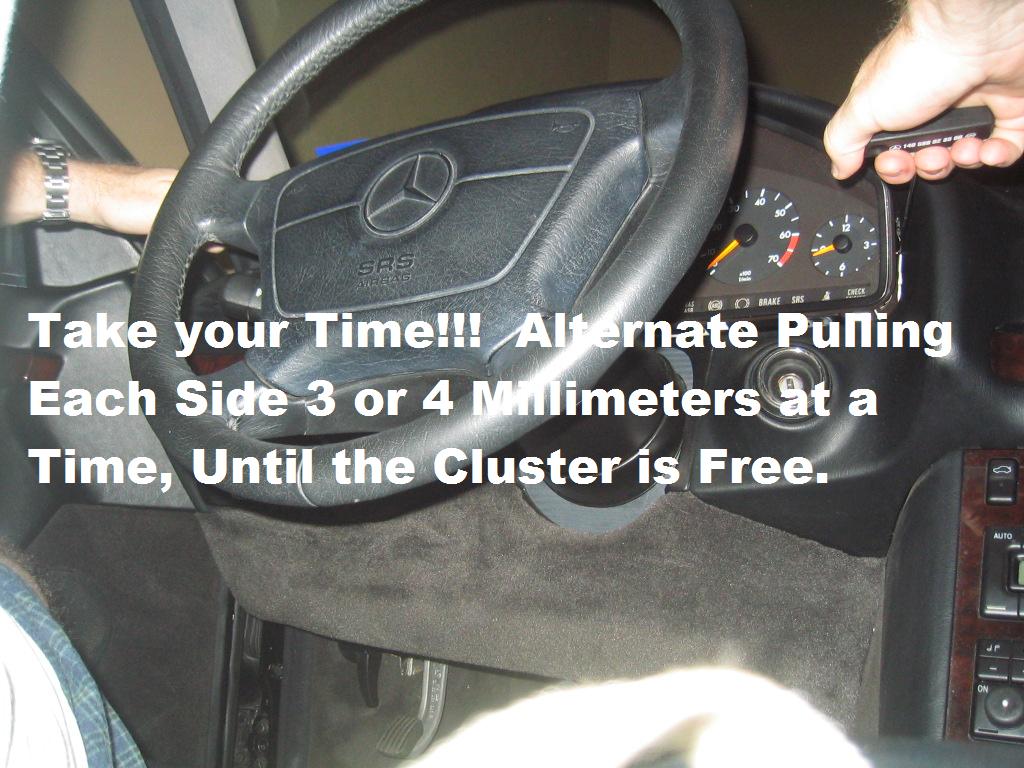

(2.jpg)



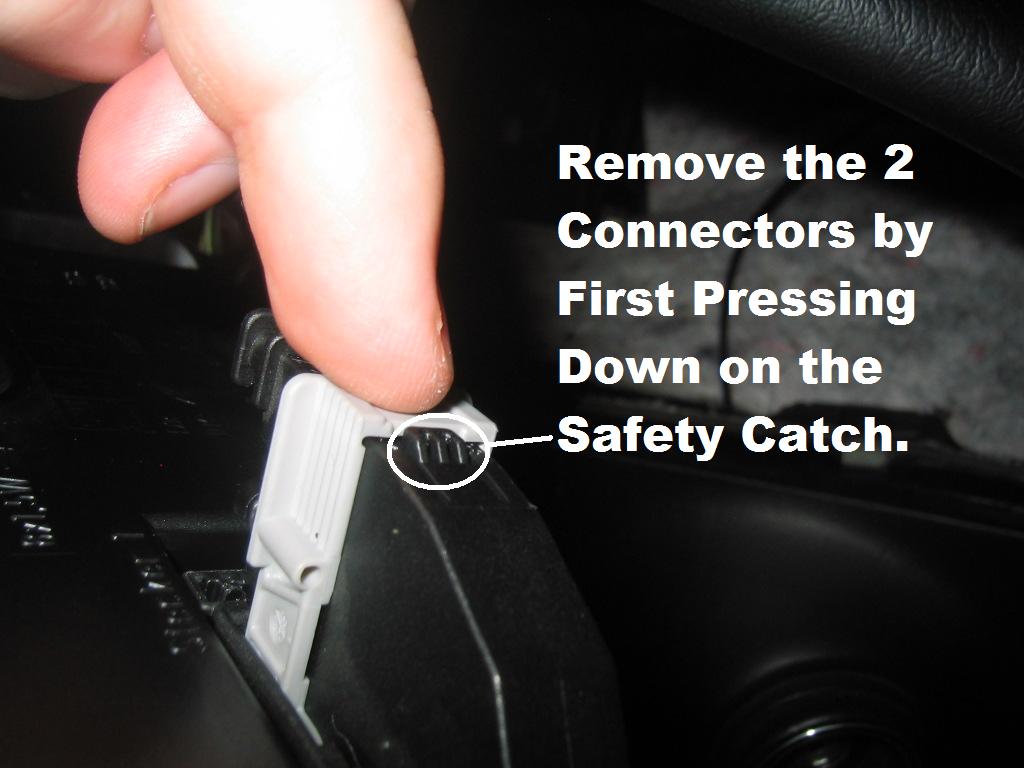

(3.jpg)



(4.jpg)



(5.jpg)



(6.jpg)



(7.jpg)



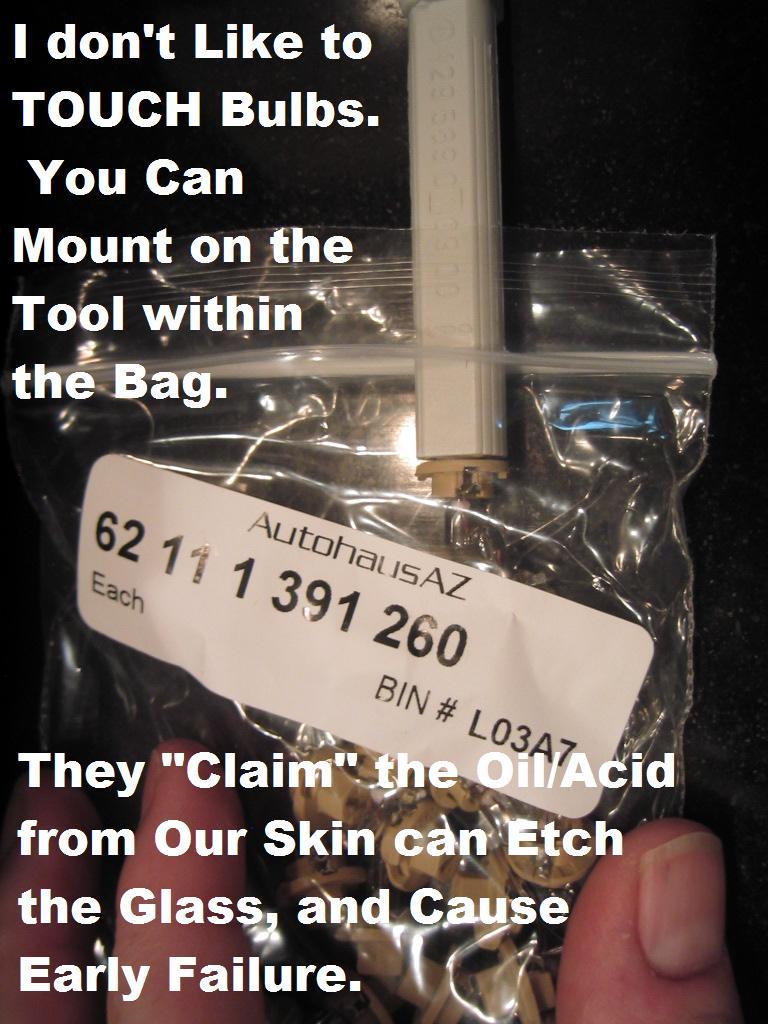

(8.jpg)



(9.jpg)



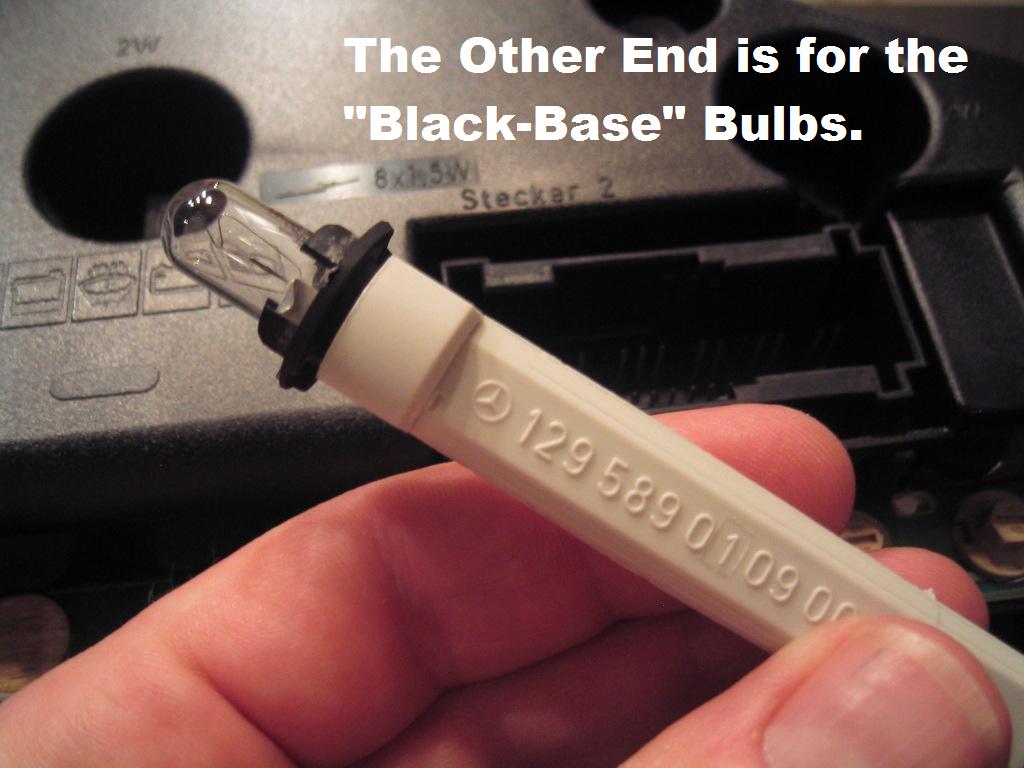

(10.jpg)



(11.jpg)



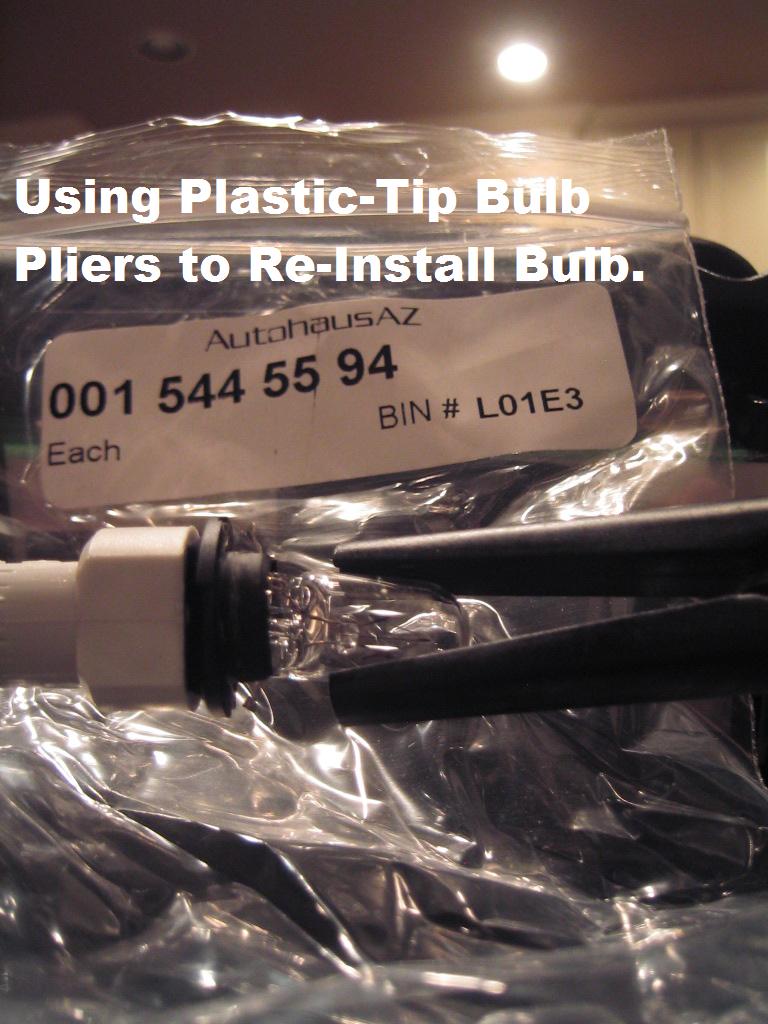

(12.jpg)



(13.jpg)



(14.jpg)



(15.jpg)



(16.jpg)



(17.jpg)



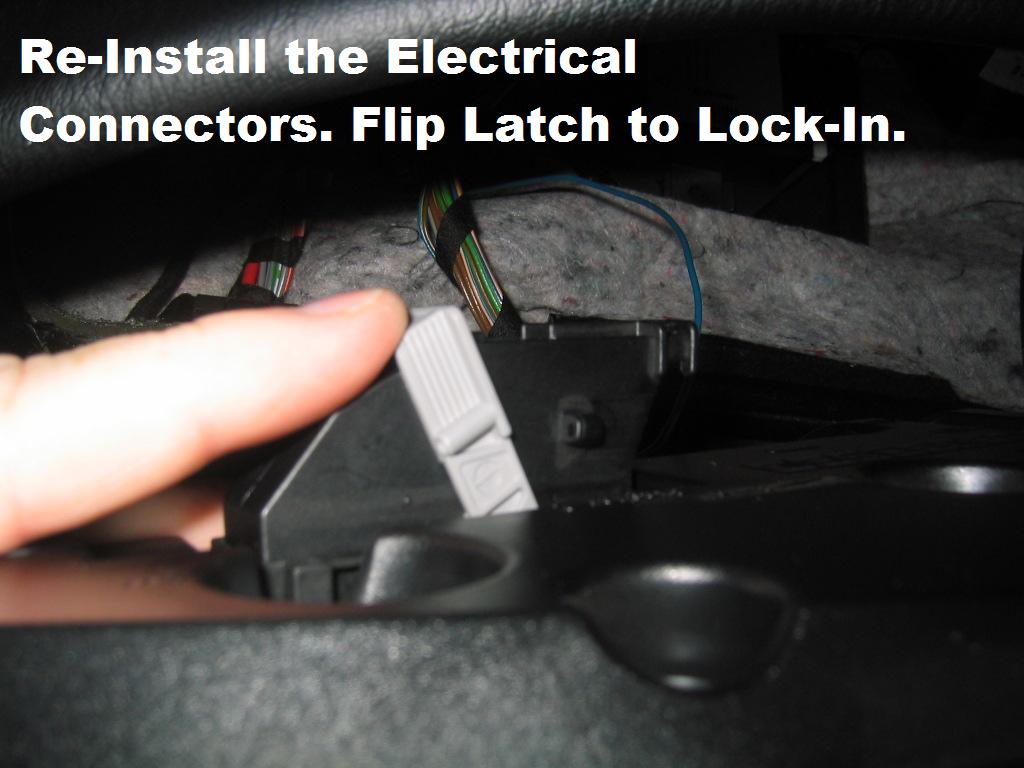

(18.jpg)



(19.jpg)



(20.jpg)
