Photo DIY- Instrument Cluster R/R with Bulb Changes.

Greets.

I realize there are different Variations on different years/models... but Still... I had a difficult time researching the "Type and Number" of Bulbs in the Instrument Cluster.

Surprisingly, even EPC does not give an actual Break-down of the type/# !!!

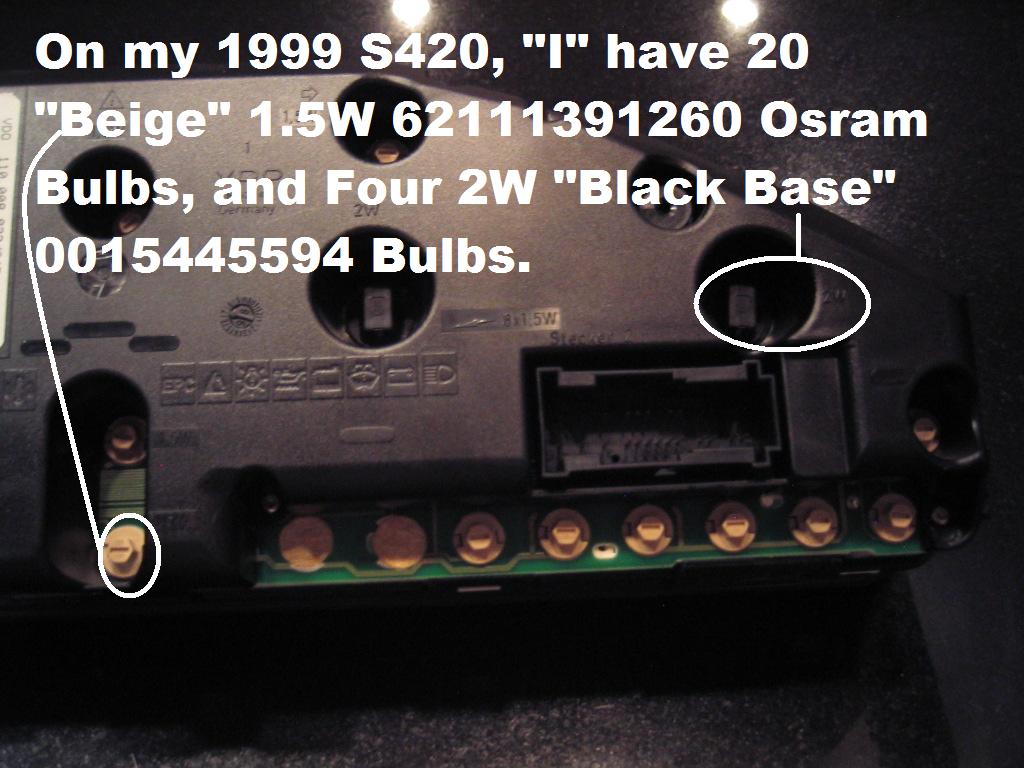

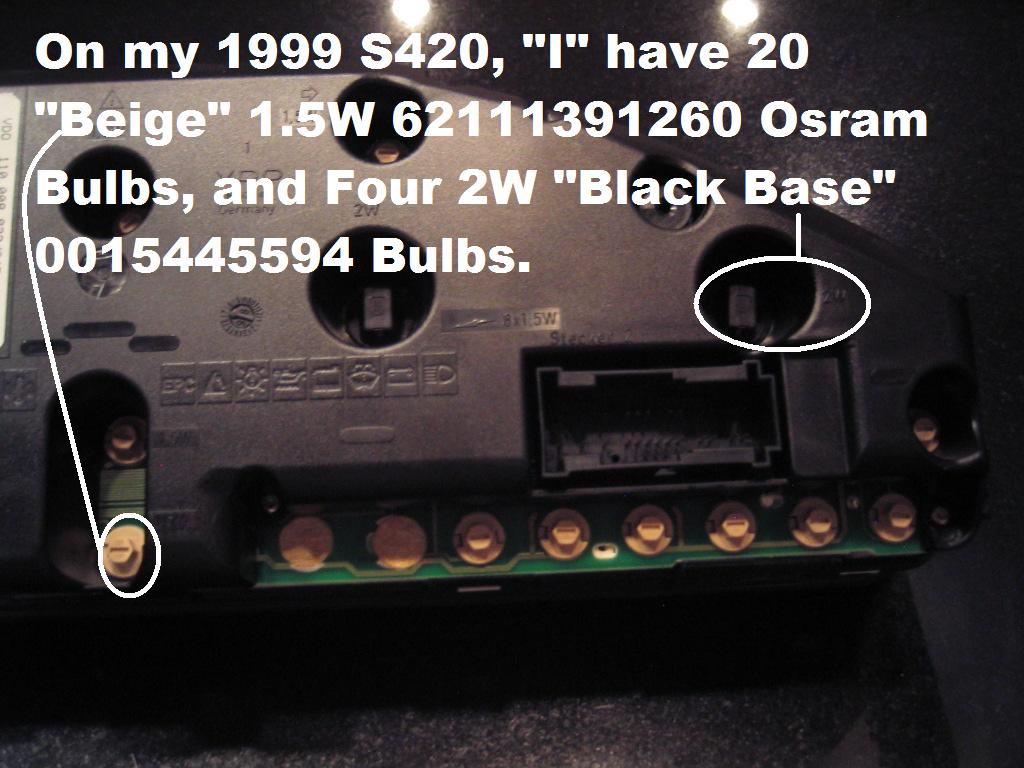

Sooo, I thought I would give "my" particular model and experience... a 1999 S420.


PLEASSEEEEE be very very Careful! These Clusters (by History) are "Sensitive" to Stresses, and have been know to Crack/Break, with is a Crazy-Expensive "Oooopppsss". Use care on both Removal AND Install!

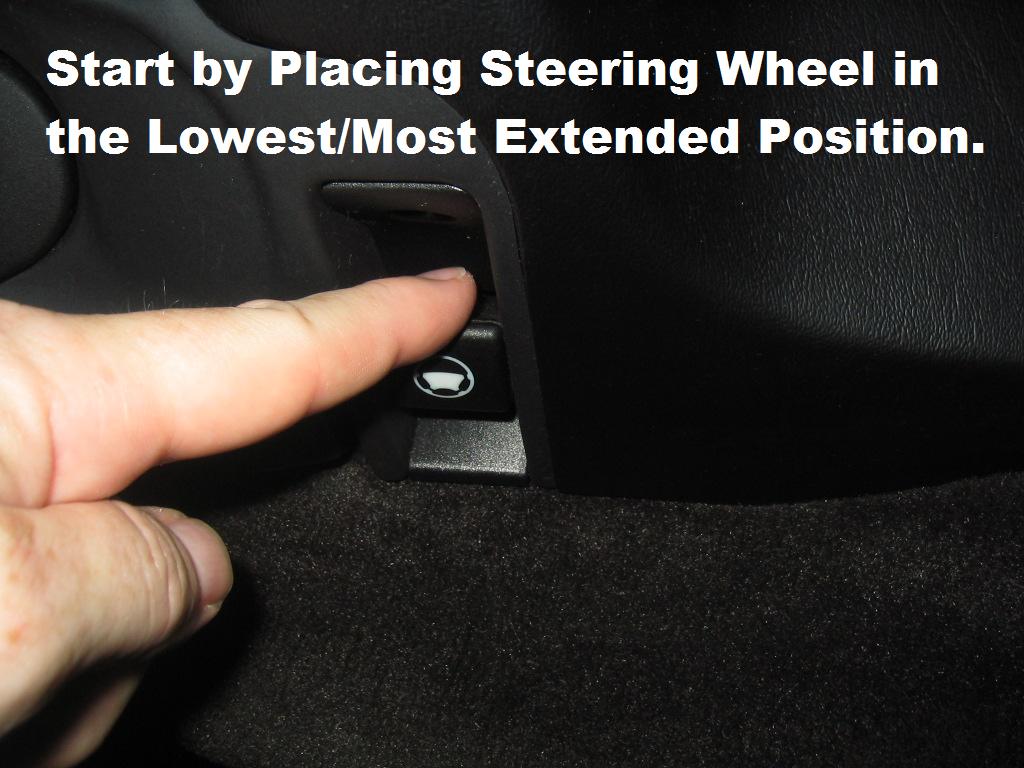

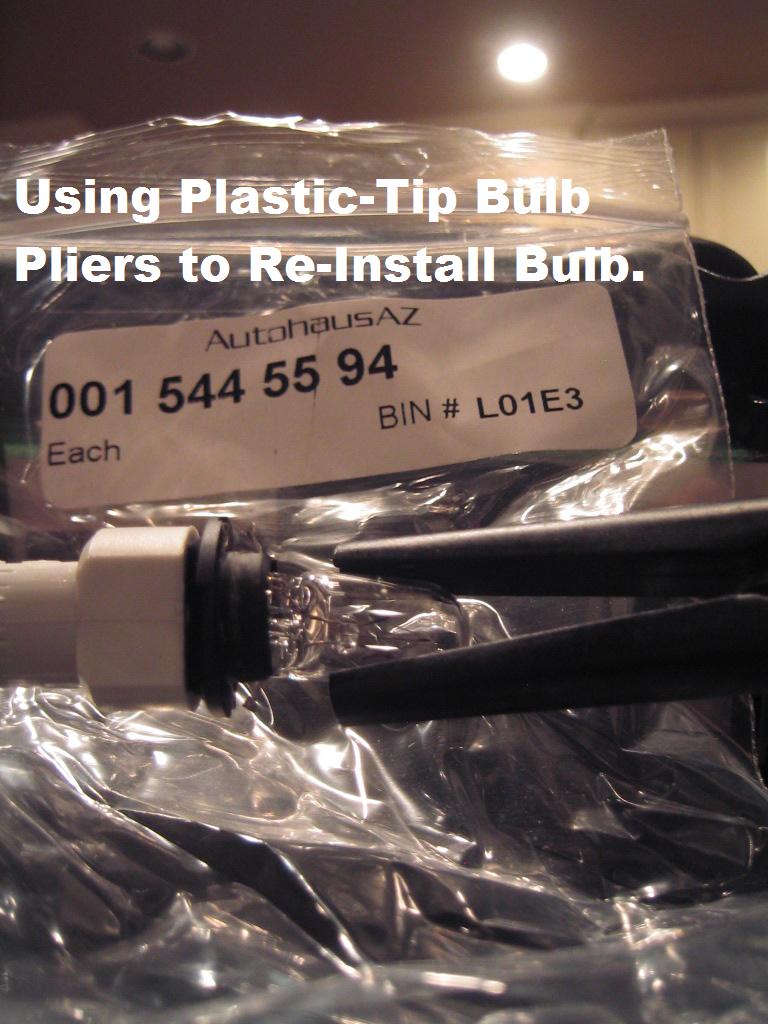

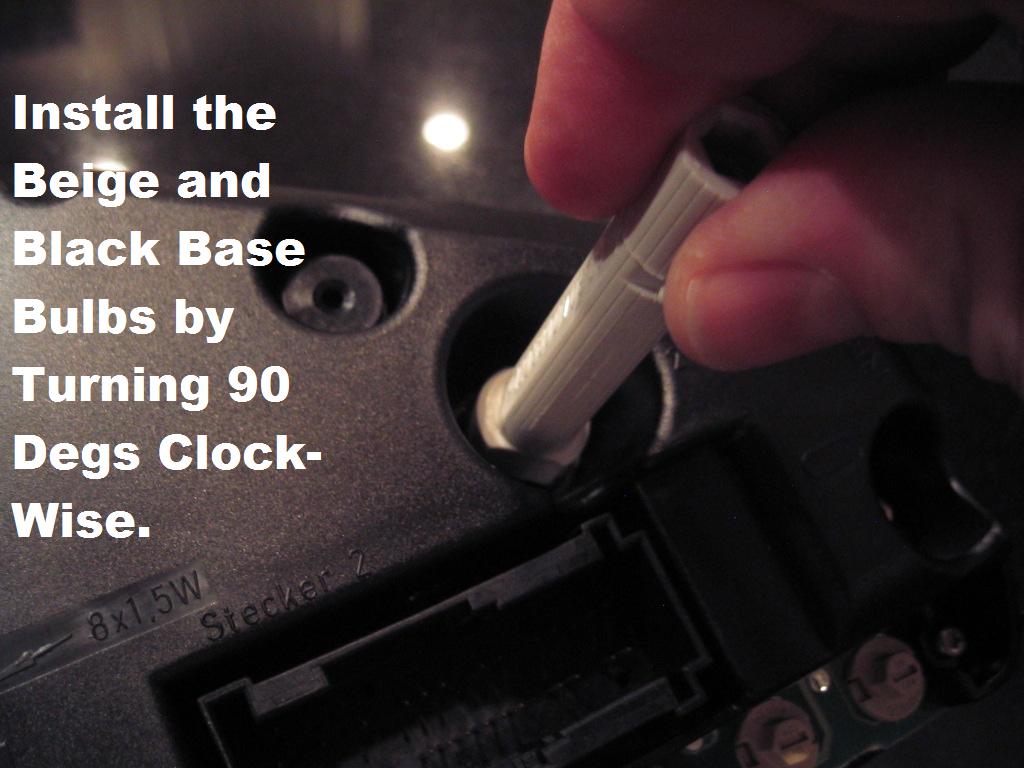

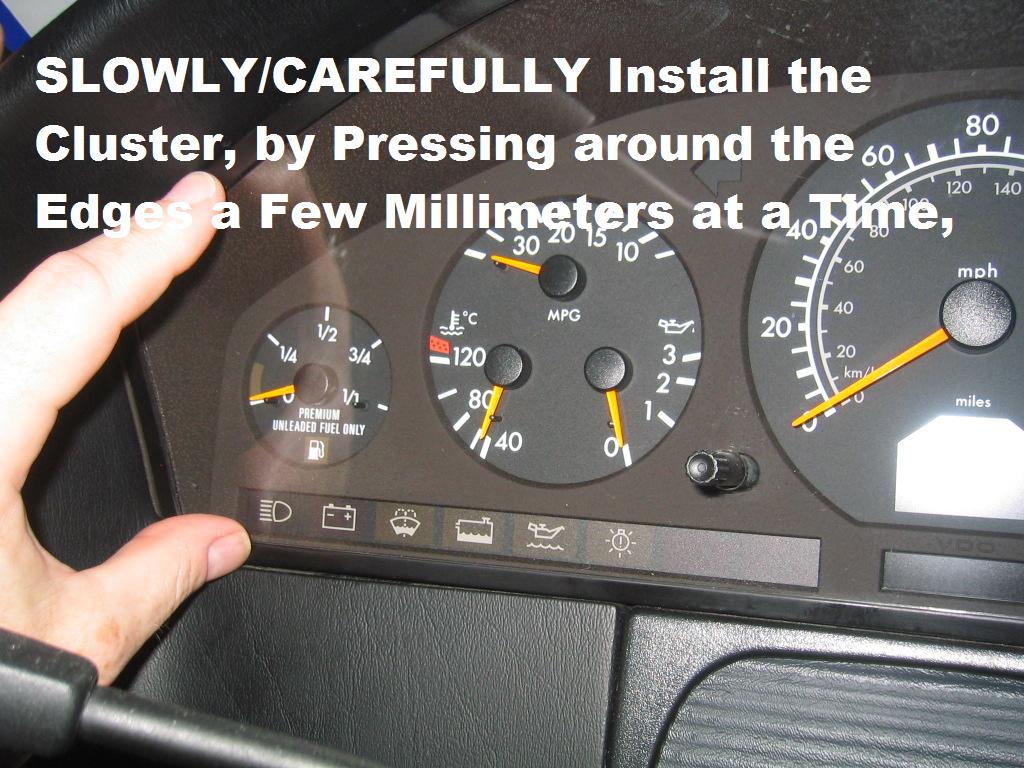

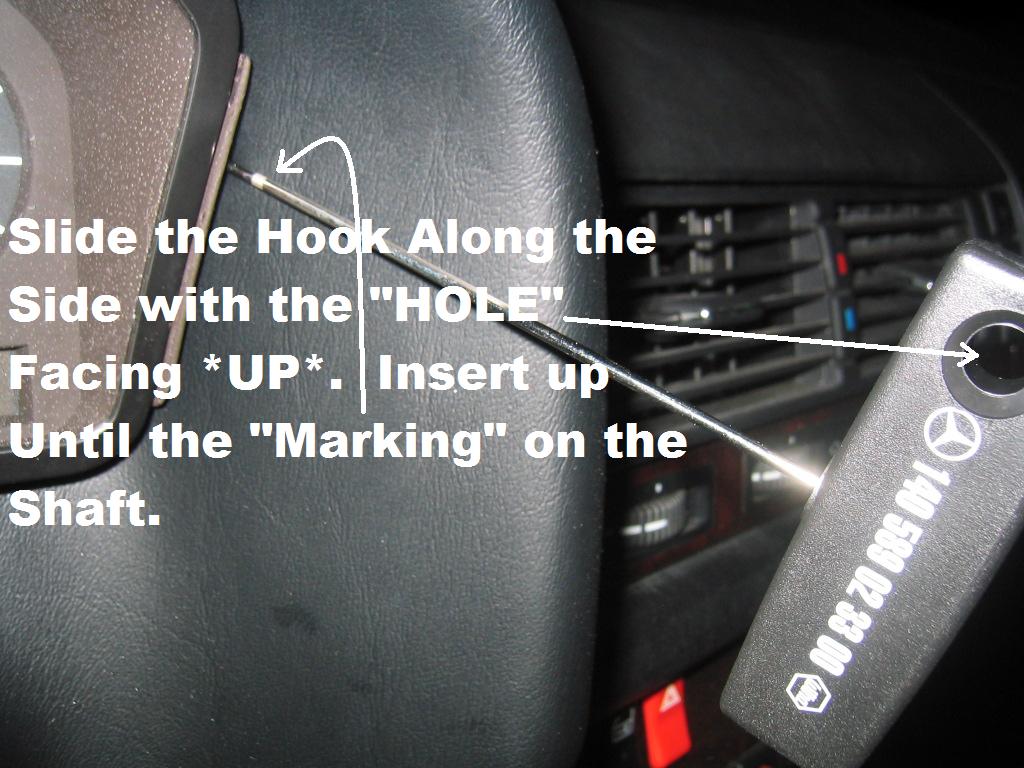

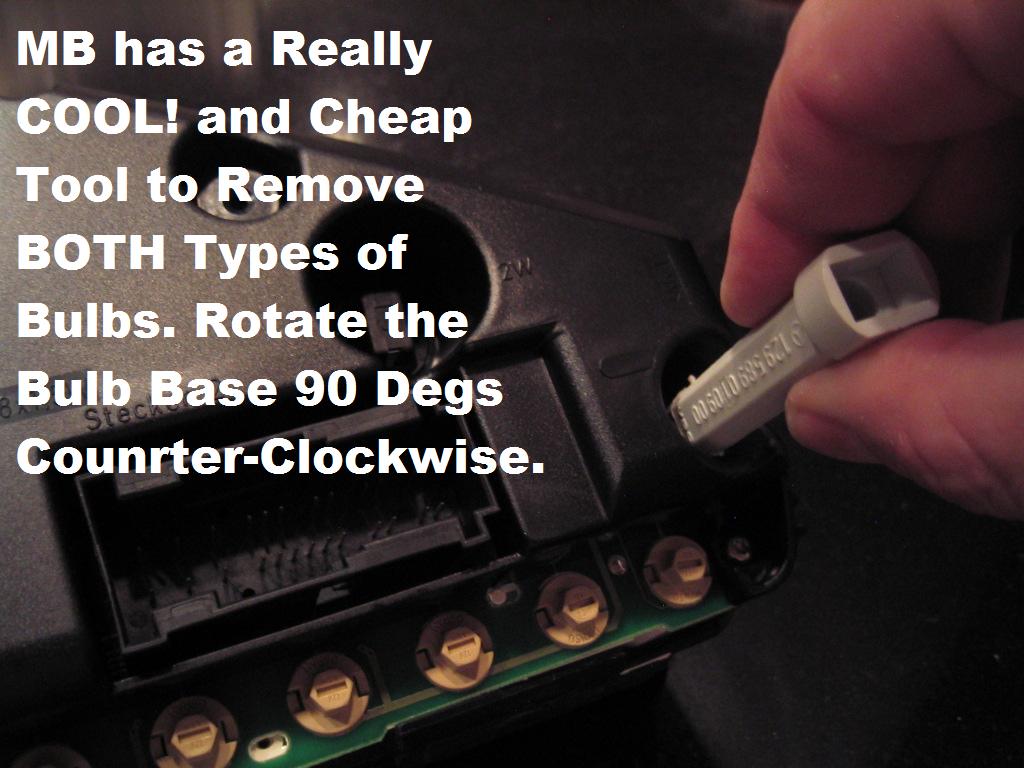

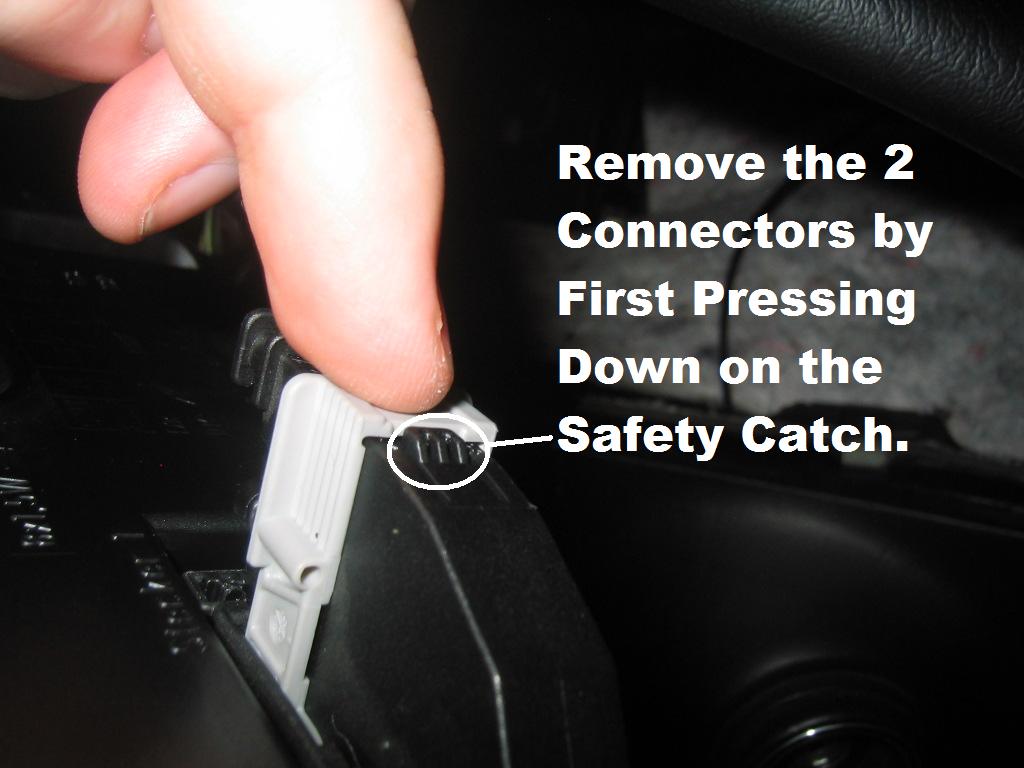

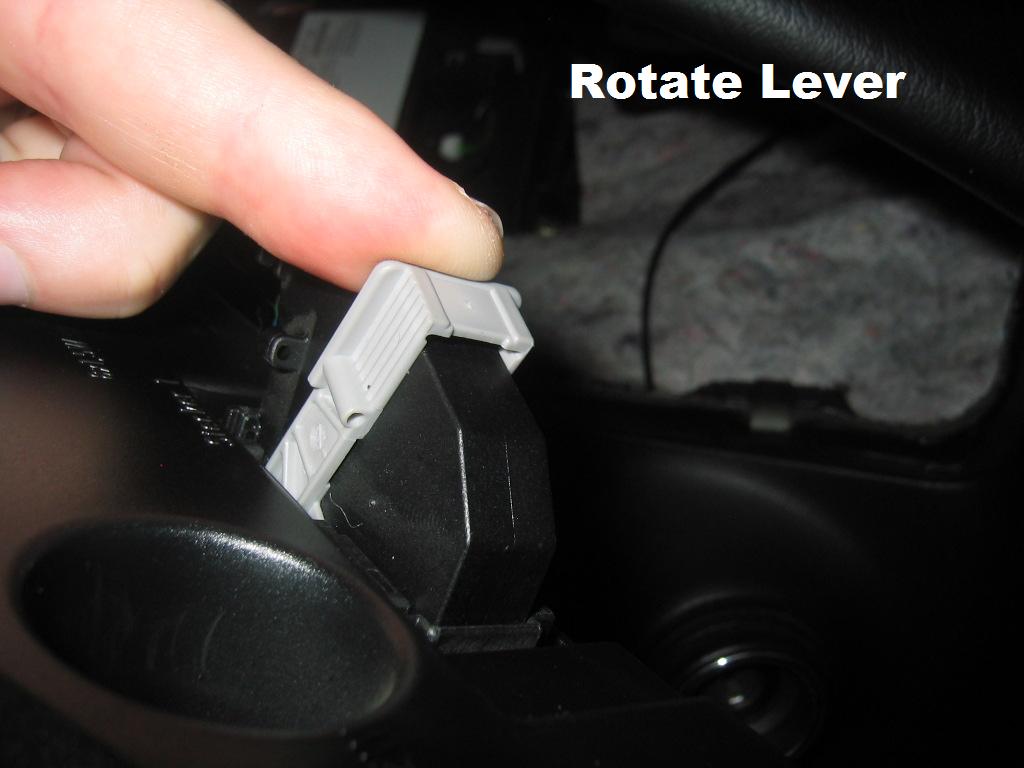

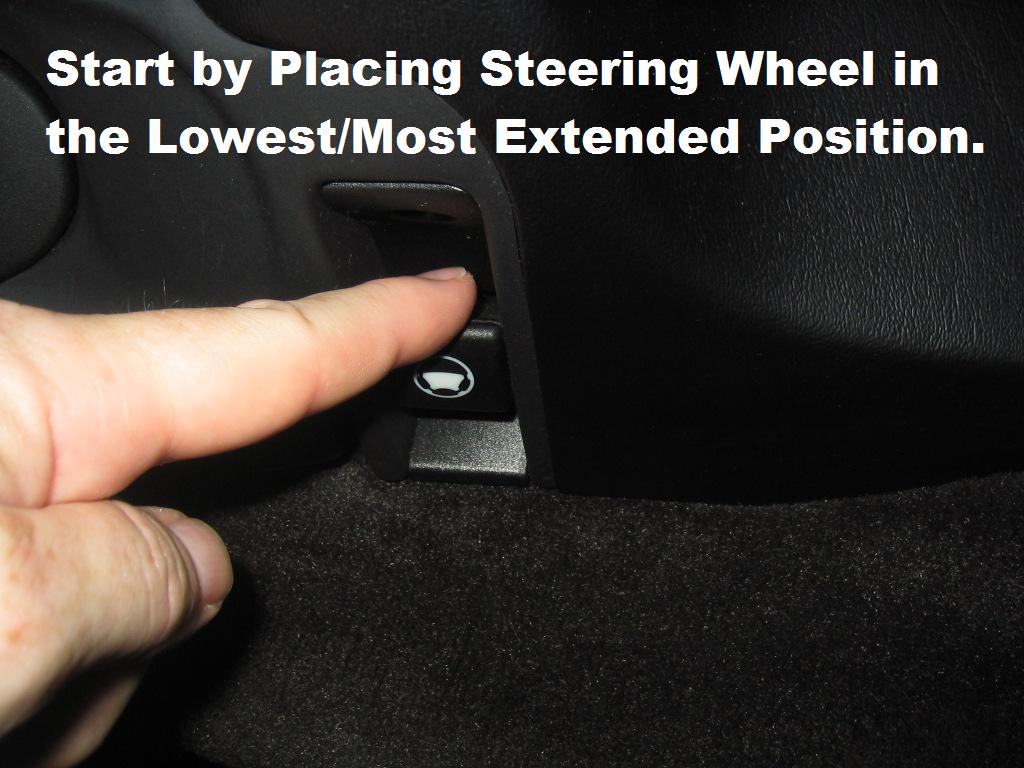

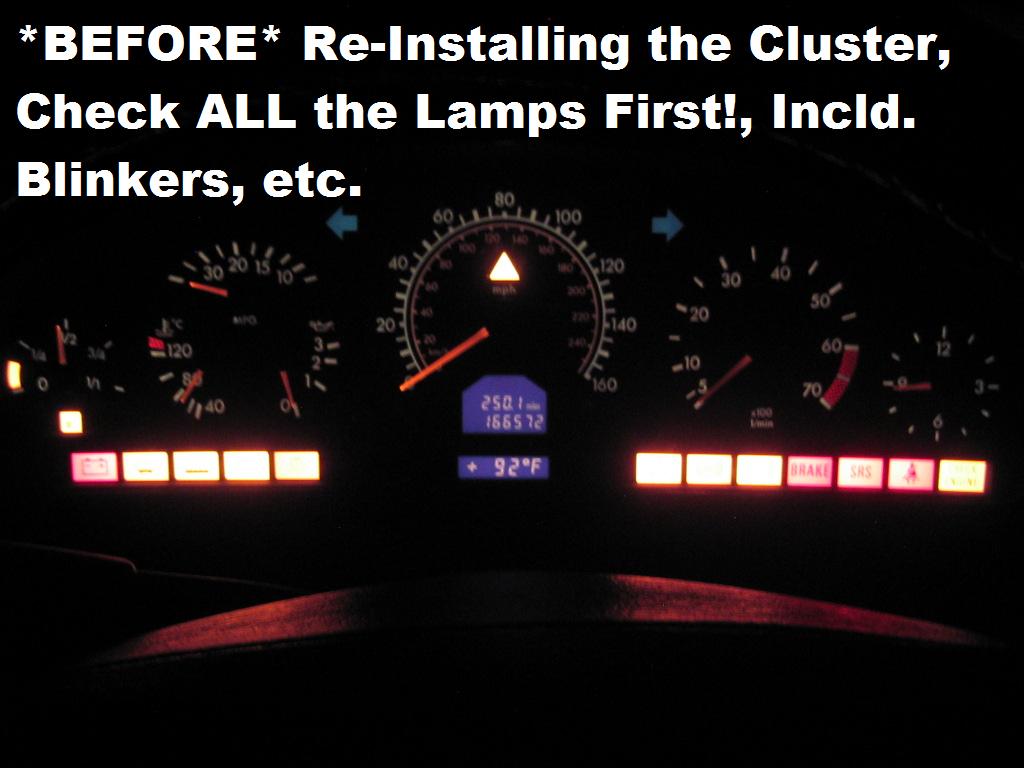

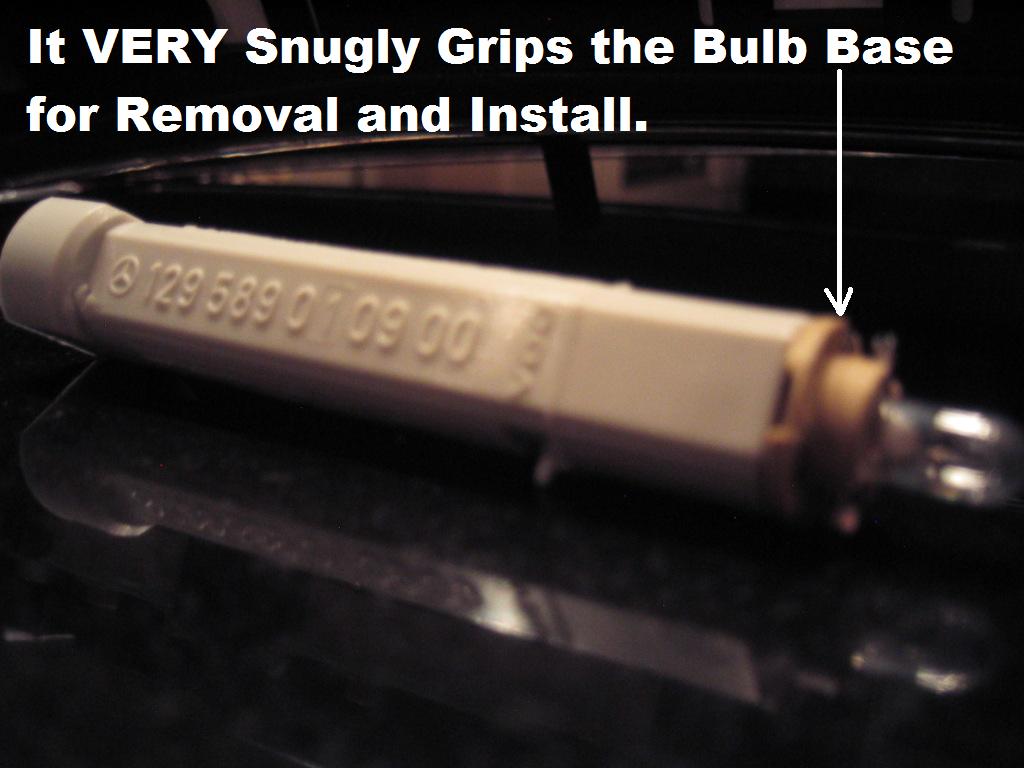

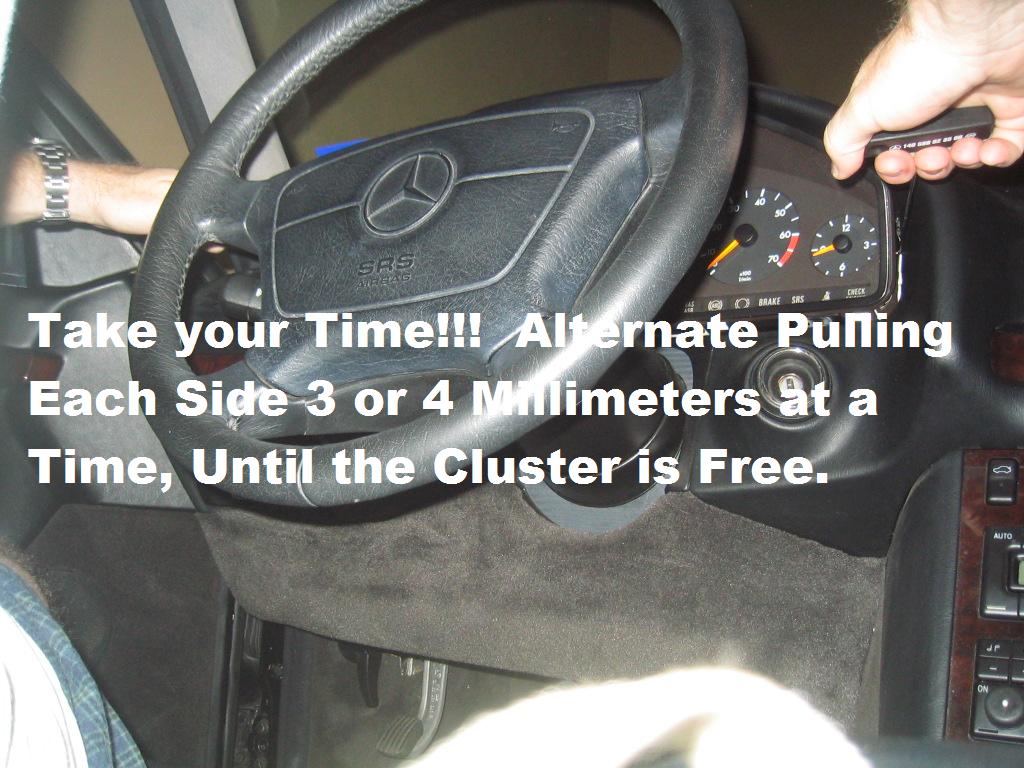

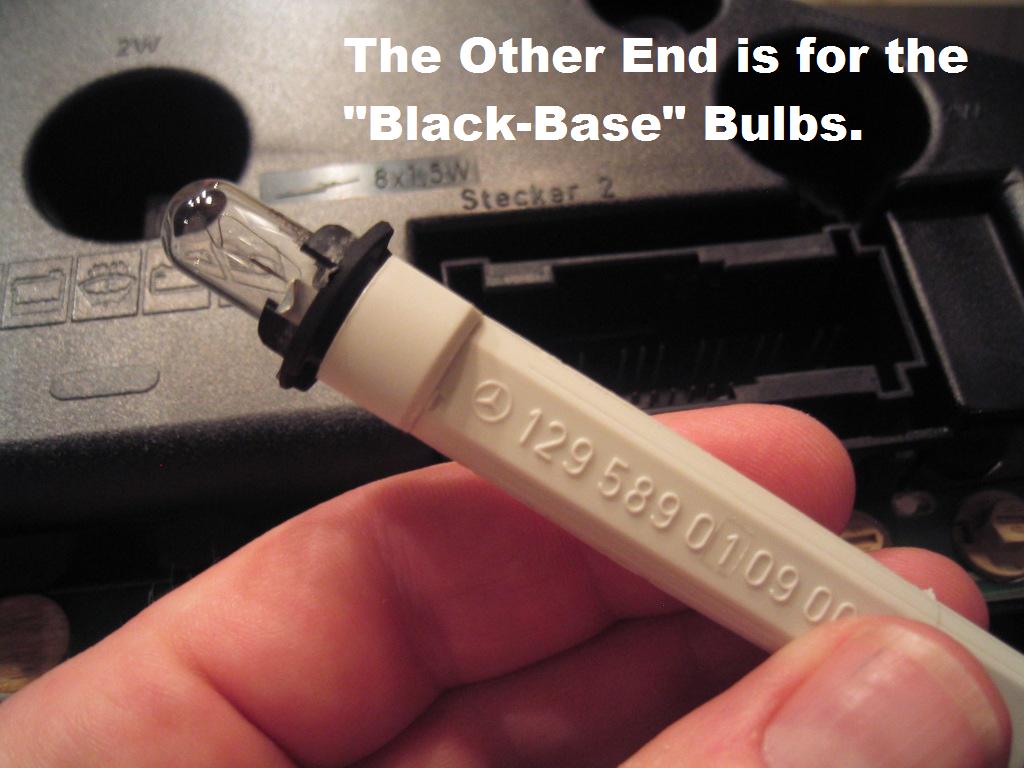

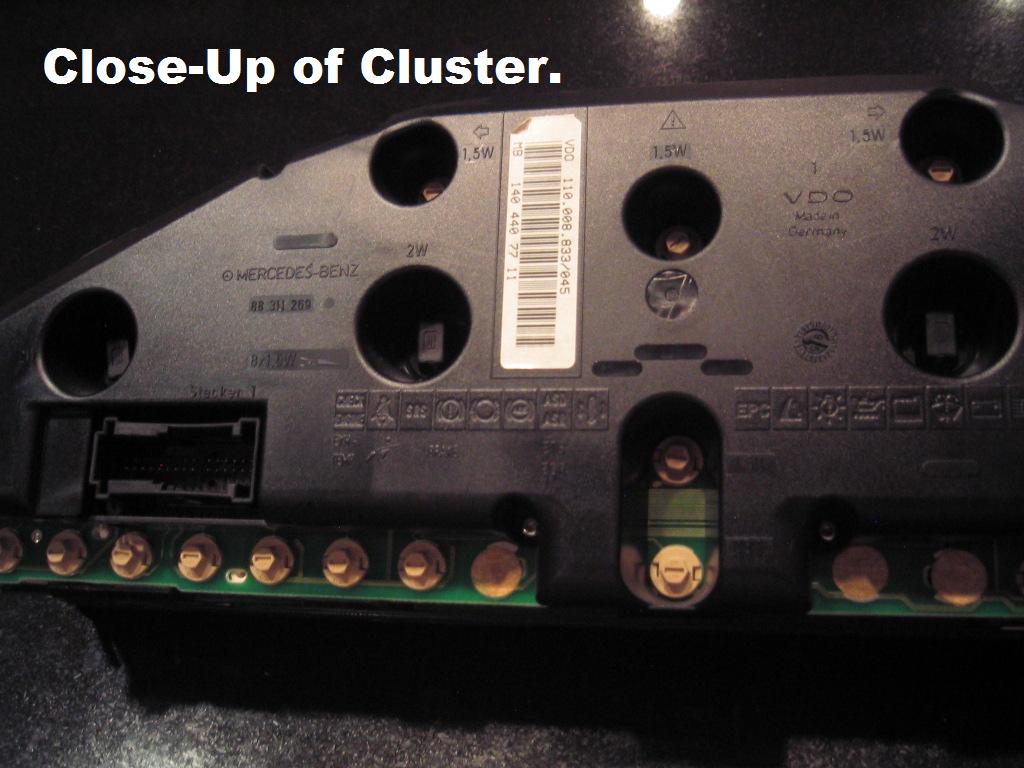

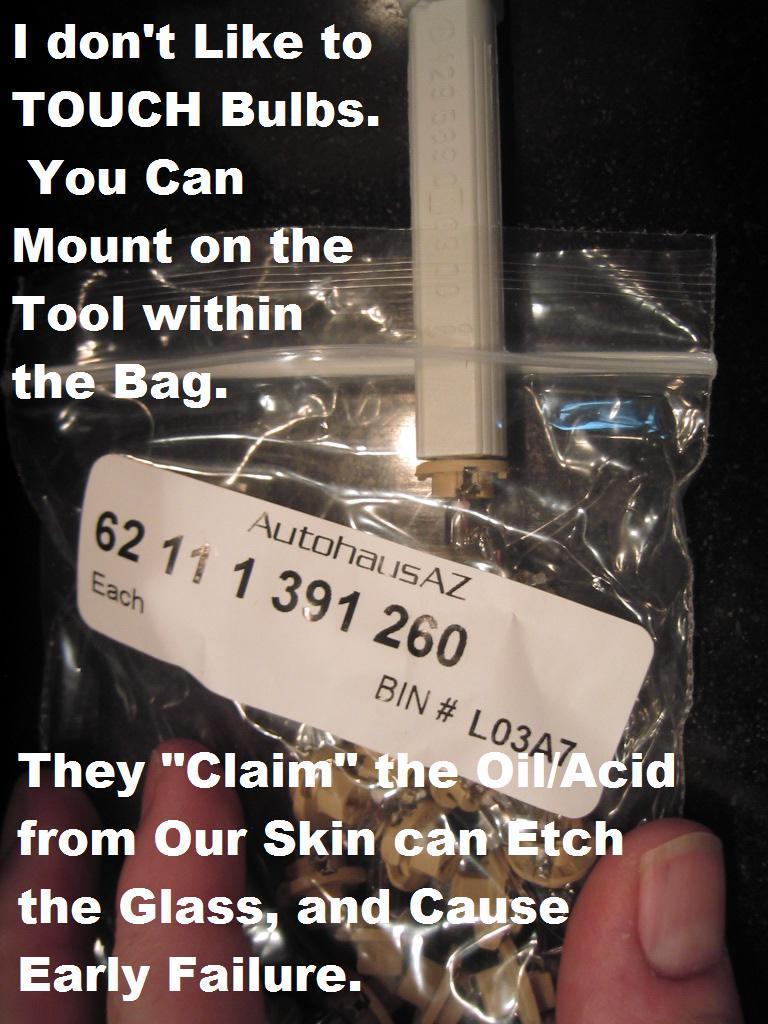

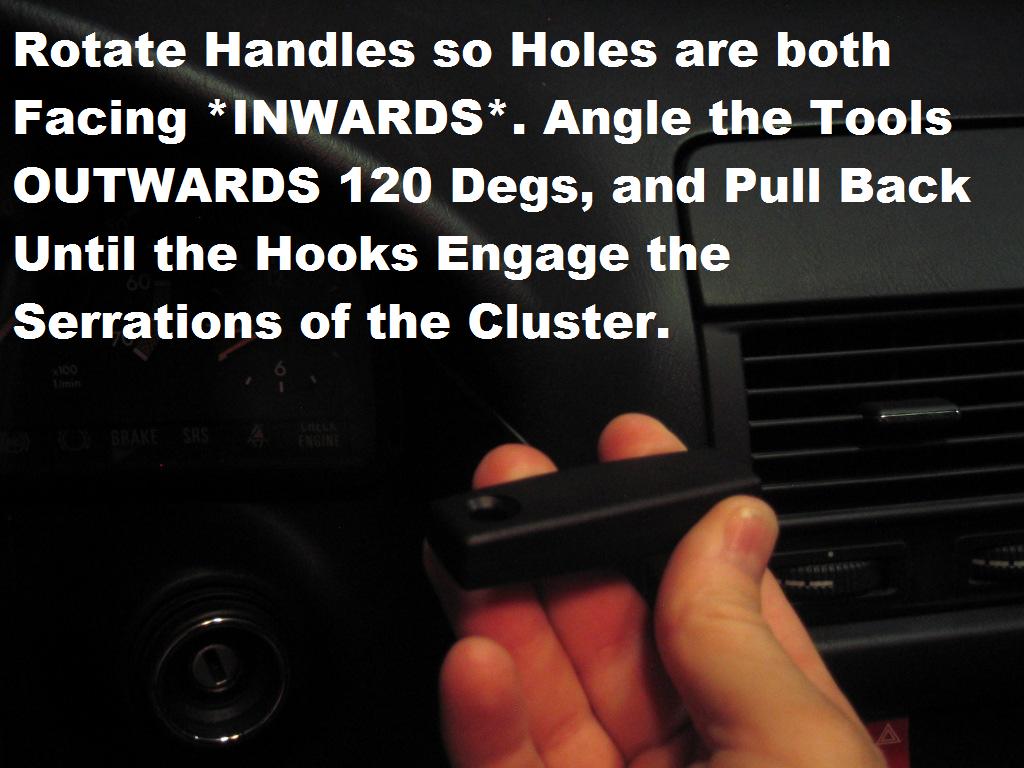

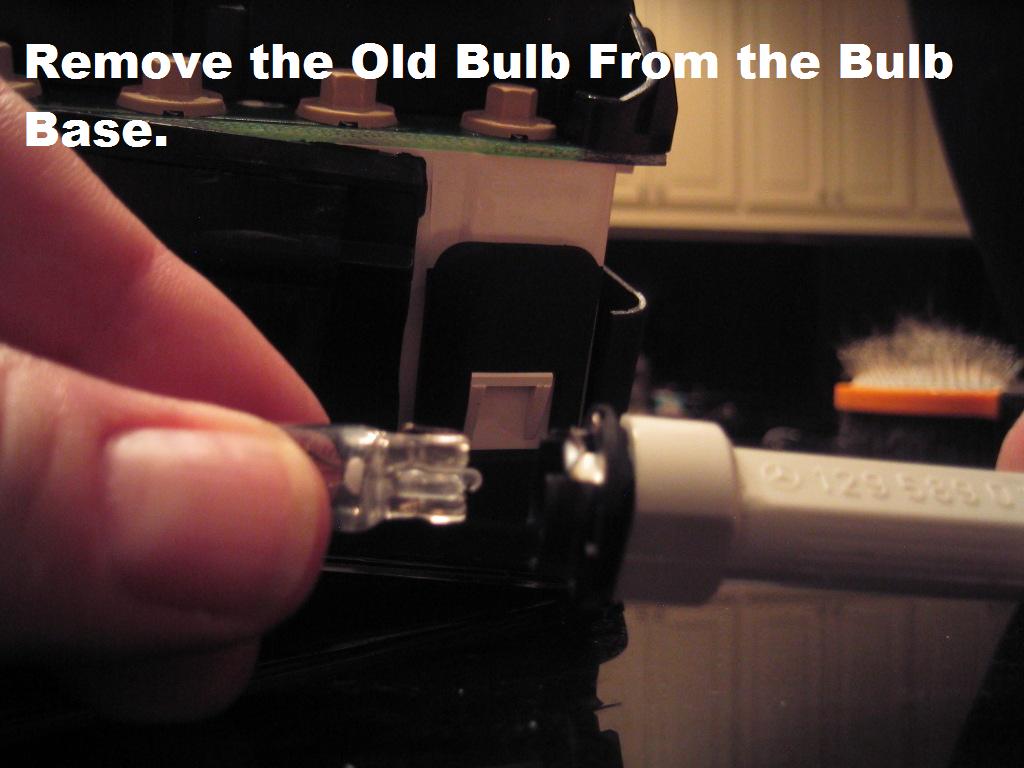

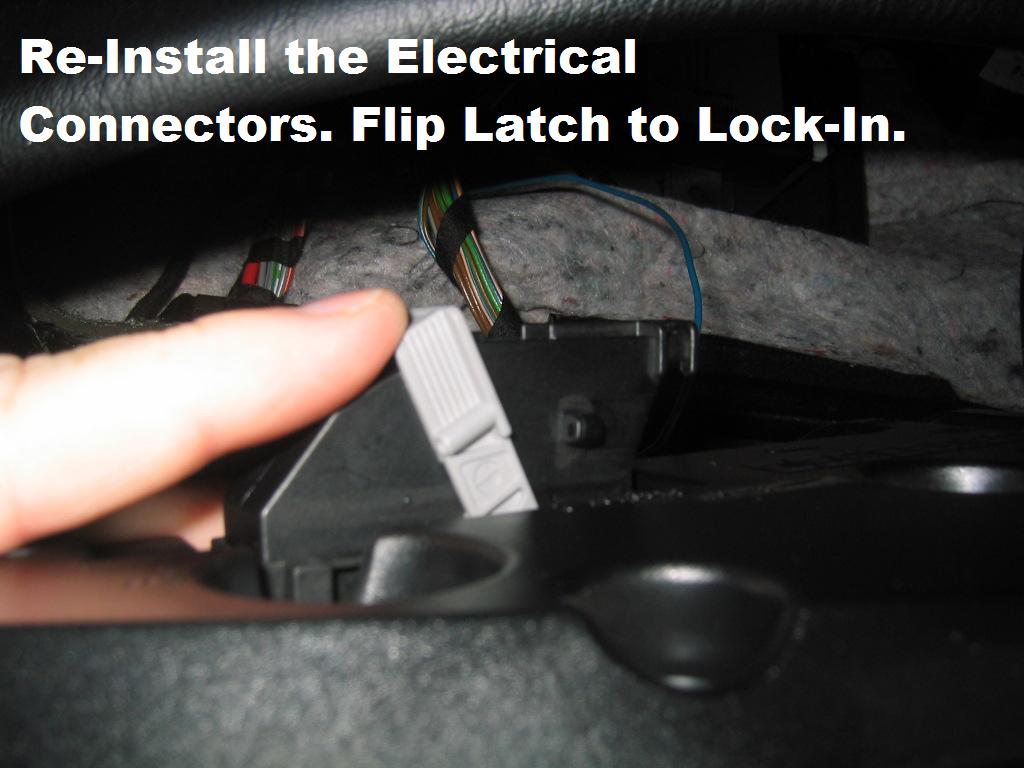

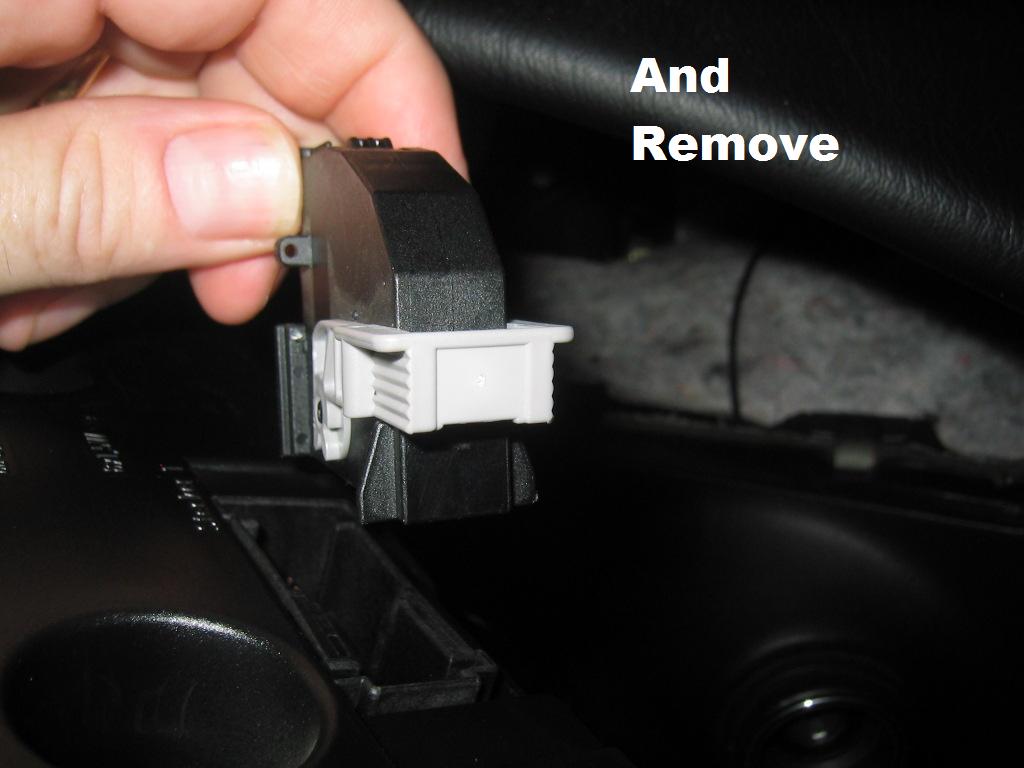

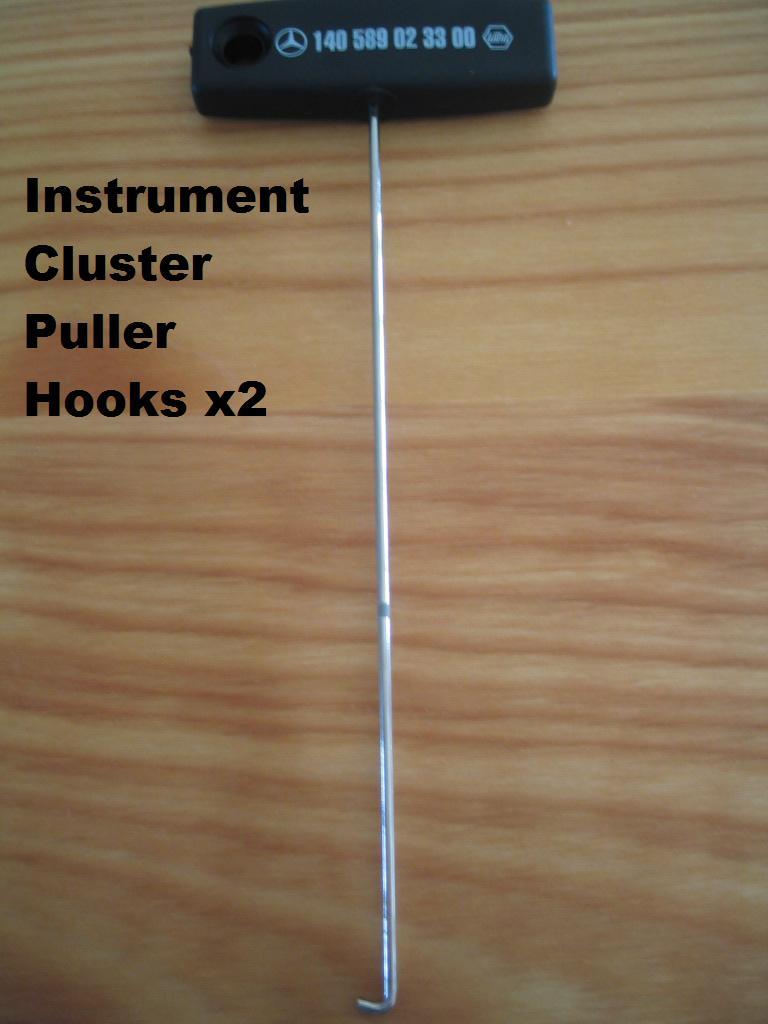

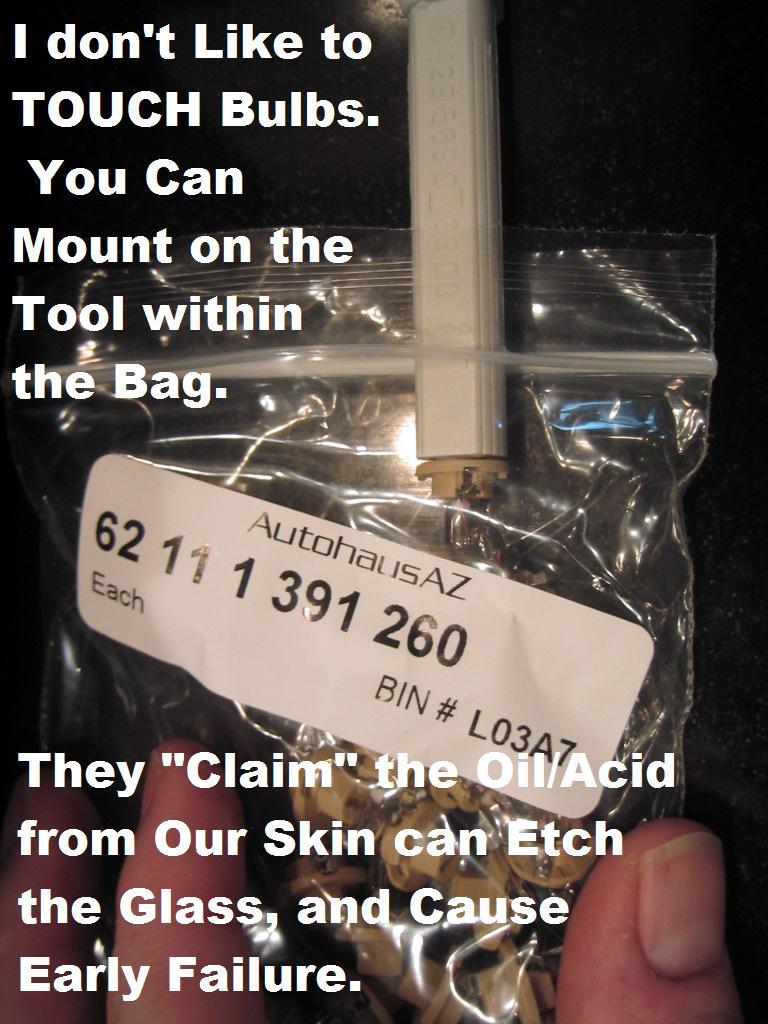

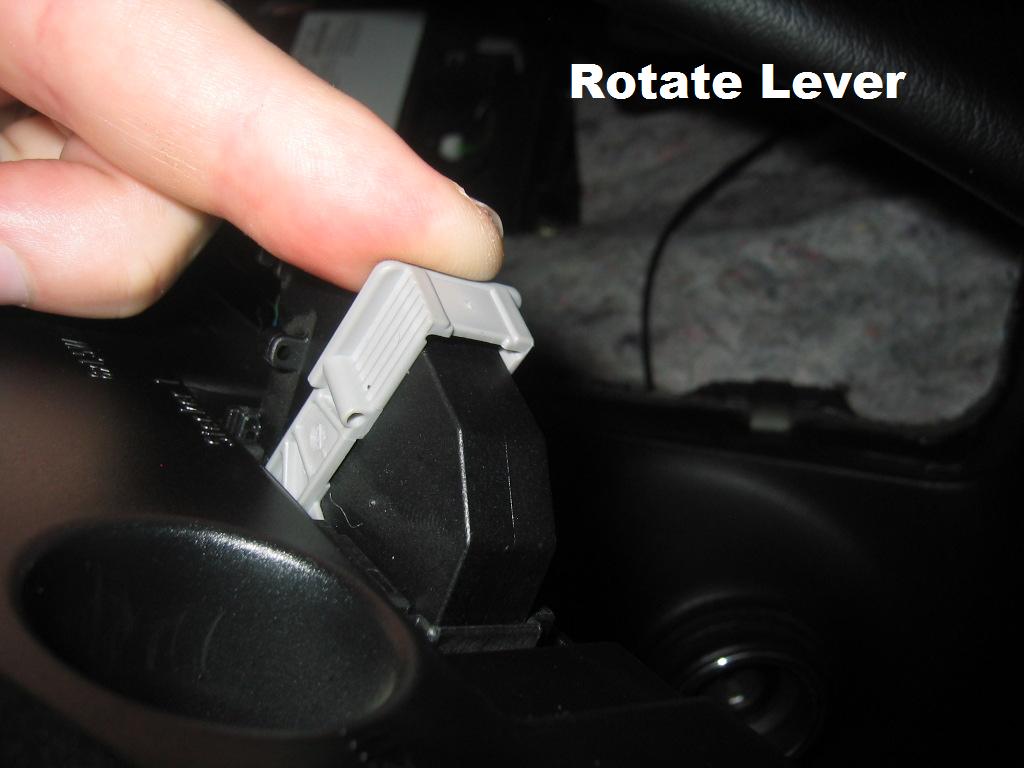

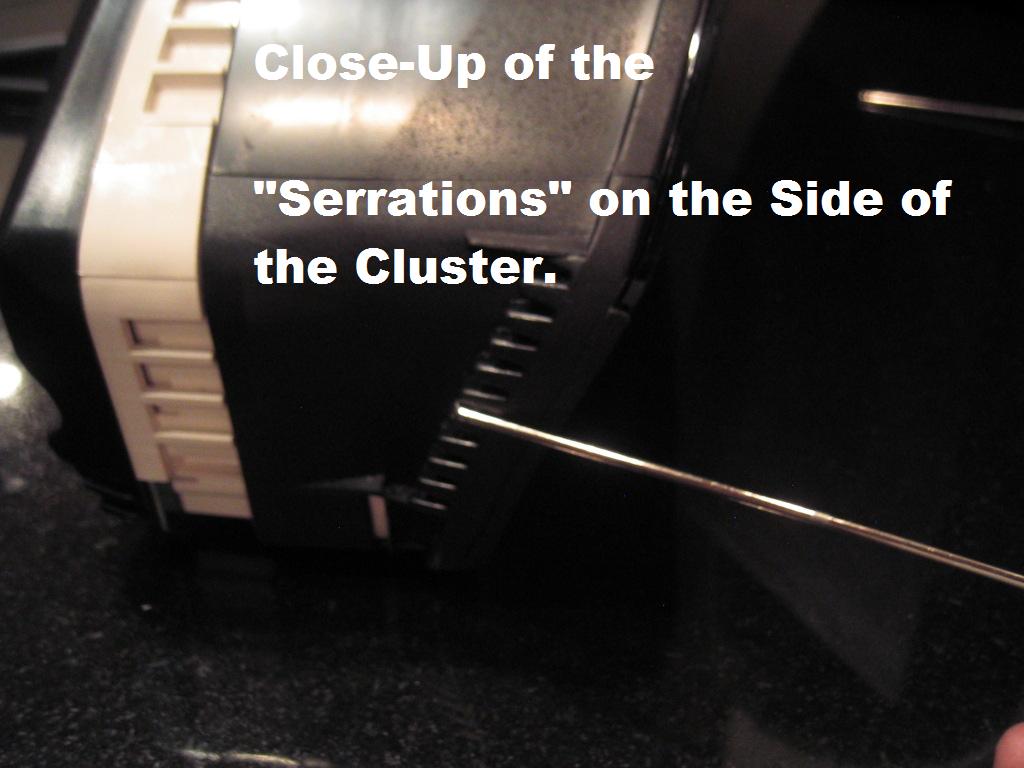

Anyhoooo, I think the photos are self-explanatory...

G
