Photo DIY- M112 Breather Cover Re-Sealing

Topic Tools

Message Format

Author

Posted 2/15/2015 3:45 PM

G-AMG
G-Class DIY Host

Date registered: May 2006
Location: South Texas
Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350
1000

Photo DIY- M112 Breather Cover Re-Sealing

This is a "Supplement" to the Valve Cover Gasket Repair job.

Apparently, it is the BREATHER Covers which are the Usual offenders for a Cover-Area leak. So, a good idea to re-seal during a Valve Cover Gasket change.

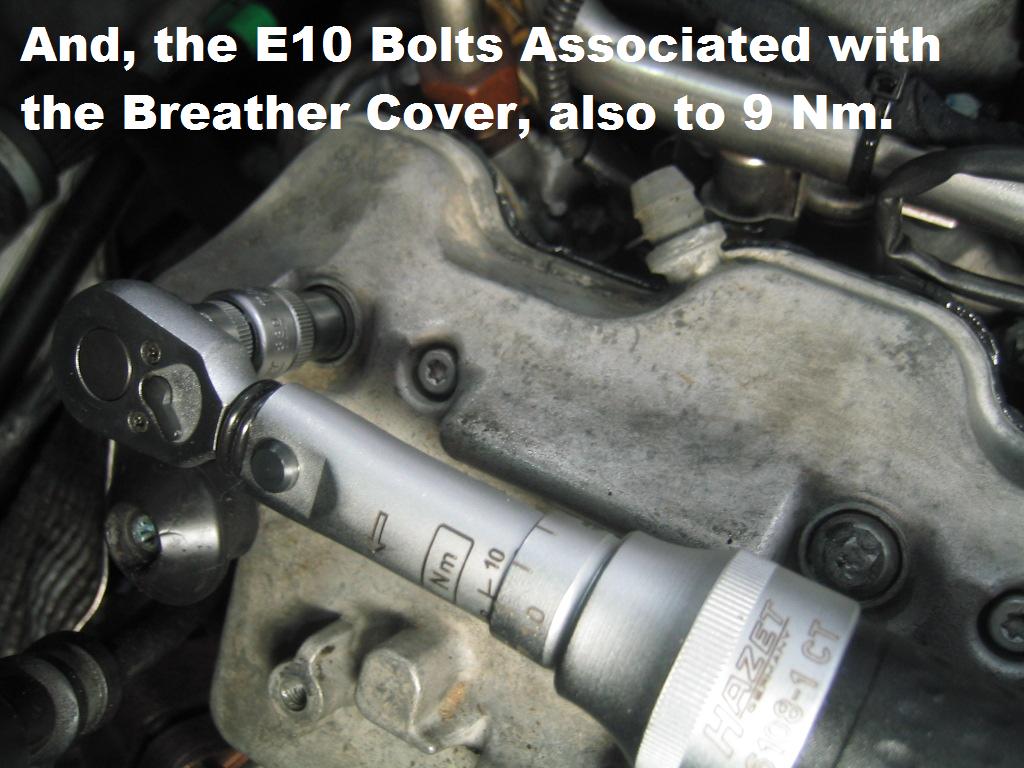

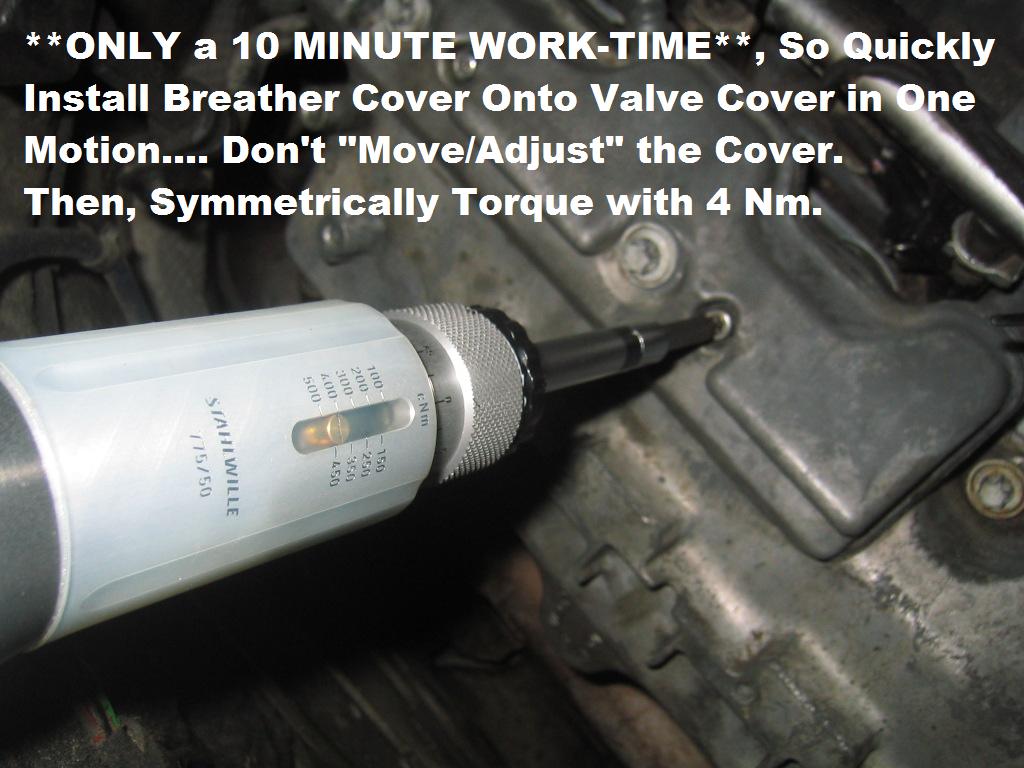

Now, Since part of the Breather Cover is involved in the Valve Cover 9 Nm Torquing Process??? I think the Re-Sealing is best done with the Valve Cover ALREADY INSTALLED!!! With Only 10 Minutes of Usable Work-Time before it sets-up? I think this is NOT enough time to do the ENTIRE Valve Cover Install.

You will see, the 4 Nm Aluminum screws only cause a "Partial" Expression/Oozing-Out of the Sealant.. the 9 Nm torque really squishes out the sealant, soooo, I think the Valve cover should already be in place, ready for Final Torquing.

***IMPORTANT NOTE***!!!! You Really should allow a 24 Hour "Cure" time before Starting the Engine, after Re-Sealing!!!!!!

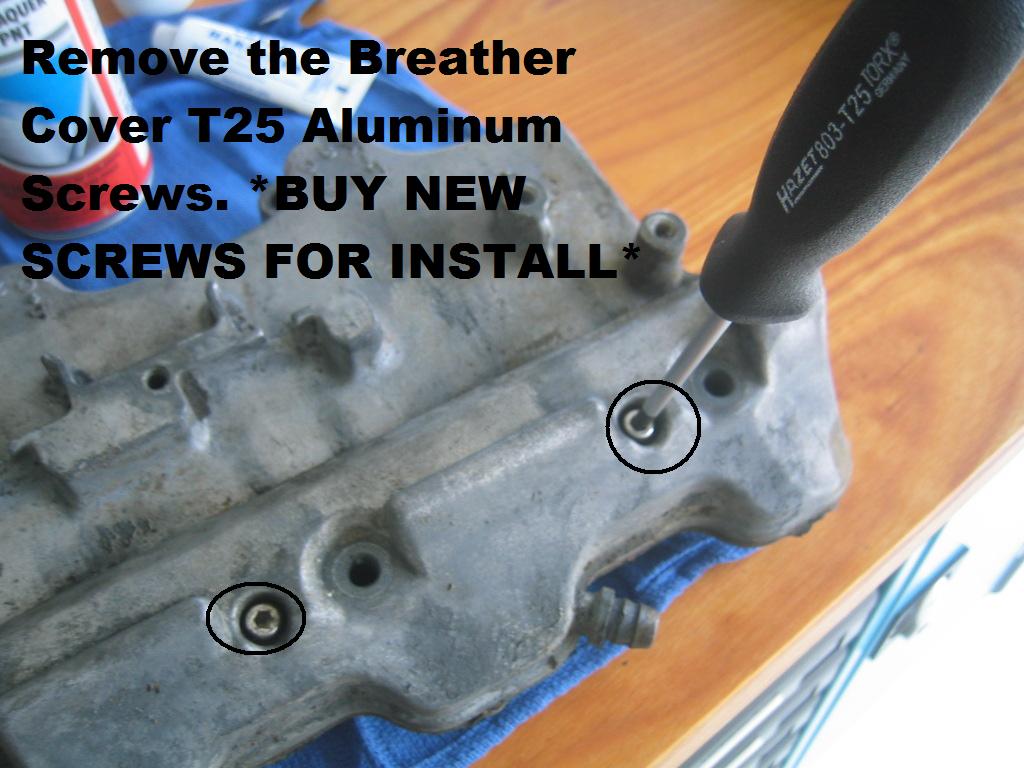

Be sure to order NEW Aluminum Breather Cover Screws, as they get quite deformed after one use.

Edited by G-AMG 2/15/2015 4:01 PM

(1.jpg)

(2.jpg)

(3.jpg)

(4.jpg)

(5.jpg)

(6.jpg)

(7.jpg)

(8.jpg)

(9.jpg)

(9a.jpg)

(10.jpg)

(11.jpg)

(12.jpg)

(13.jpg)

(14.jpg)

Attachments
----------------

Attachments

Attachments

Attachments

Attachments

Attachments

Attachments

Attachments

Attachments

Attachments

Attachments

Attachments

Attachments

Attachments

Attachments


#226732

Author

Posted 6/18/2017 1:10 AM

Eyes
Member

Date registered: Nov 2007
Location: California
Vehicle(s): 2000 E320
Posts: 8

Re: Photo DIY- M112 Breather Cover Re-Sealing

Hello Mr. G-AMG

Could you please be kind to tell me what MB seal part number you reseal around "Breather Cover Re-Sealing" It part number
003 989 98 20 10. Just want to make sure before I do order and do mine.

Thanks Sir.

#236409 - in reply to #226732

Author

Posted 6/18/2017 11:52 AM

G-AMG
G-Class DIY Host

Date registered: May 2006
Location: South Texas
Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350
1000

Re: Photo DIY- M112 Breather Cover Re-Sealing

Hey!

Yes, you are correct on the Sealant part#.

You can also source the material under "Loctite 5970".

If I may extend one word of Caution!!!!

LOOK CAREFULLY AT EXPIRAITON DATE!!!!!

The Cartridge I purchased at my local dealer was AT expiration date when I purchased... but did the job a few months later.

HAD TOO RE-DO the whole thing after very short time due to the Sealant being bad.... (It never Cured!! Despite 24 Cure time, prior to starting enging).

#236412 - in reply to #226732

Author

Posted 6/19/2017 9:53 AM

Eyes
Member

Date registered: Nov 2007
Location: California
Vehicle(s): 2000 E320
Posts: 8

Re: Photo DIY- M112 Breather Cover Re-Sealing

Good Morning G-AMG

Thanks for the instruction and the advice. Will do Sir. All those years I did learn and do a lot of thing good from you Sir. Appreciated for what you did.

#236420 - in reply to #226732
