| Interior Mirror Replacement Process
Has anyone replaced the interior mirror in the 124? I have a replacement, but am clueless on how to replace it...any suggestions or schmatics would be appreciated...you can email m directly if that works...thank you |
|
| |
|
VonEpp
W124 Host
Date registered: Sep 2006
Location: Australia
Vehicle(s): w114, w124 & w460
Posts: 357
| RE: Interior Mirror Replacement Process
Just firmly pull it out - it's on a clip with a spring. To replace, mount one side and exert pressure on the other with the heel of your palm - it can take quite a bit of effort.

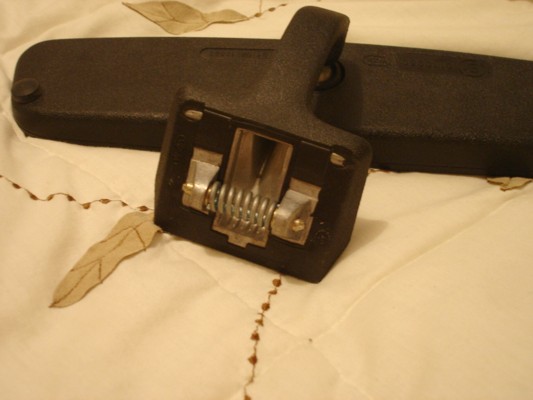

 (interior mirror mechanism.jpg)
Attachments
----------------
 interior mirror mechanism.jpg (33KB - 69 downloads)
|
|
| |
|
swscoo
Date registered: Dec 1899
Location:
Vehicle(s):
| RE: Interior Mirror Replacement Process
Many thanks for the reply, the attached file would not open, but I understand what has to be done..the attachment looked like a press fit but I did not want to ruin anything. Thank you again! Steve |
|
| |
|
VonEpp
W124 Host
Date registered: Sep 2006
Location: Australia
Vehicle(s): w114, w124 & w460
Posts: 357
| Re: Interior Mirror Replacement Process
Just remember you must be logged in to view attachments. |
|
| |
|
Roch207
Expert
Date registered: Apr 2006
Location: Palmetto State
Vehicle(s): 2005 E320 CDI, 2010 Silverado 2500HD
Posts: 3749
| Re: Interior Mirror Replacement Process
and it helps to fill out your location and vehicle information. |
|
| |
|
swscoo
Date registered: Dec 1899
Location:
Vehicle(s):
| RE: Interior Mirror Replacement Process
I finally got the Merc out of storage and have started going through it..I replaced the mirror and the hood strap assemble...my door post covers are loose and I will have to figure out the best way to reinstall them...car runs like new....turned 75,000 actual today...not a squeek, rattle or clunk anywhere-except when I close the doors...thanks for all the help!! |
|
| |
|
2phast
Date registered: Dec 1899
Location:
Vehicle(s):
| Re: Interior Mirror Replacement Process
If your interested in upgrade mirror options, scroll down a bit on my site here for some ideas.
http://www.2phast.com/500e/interior.htm |
|
| |
