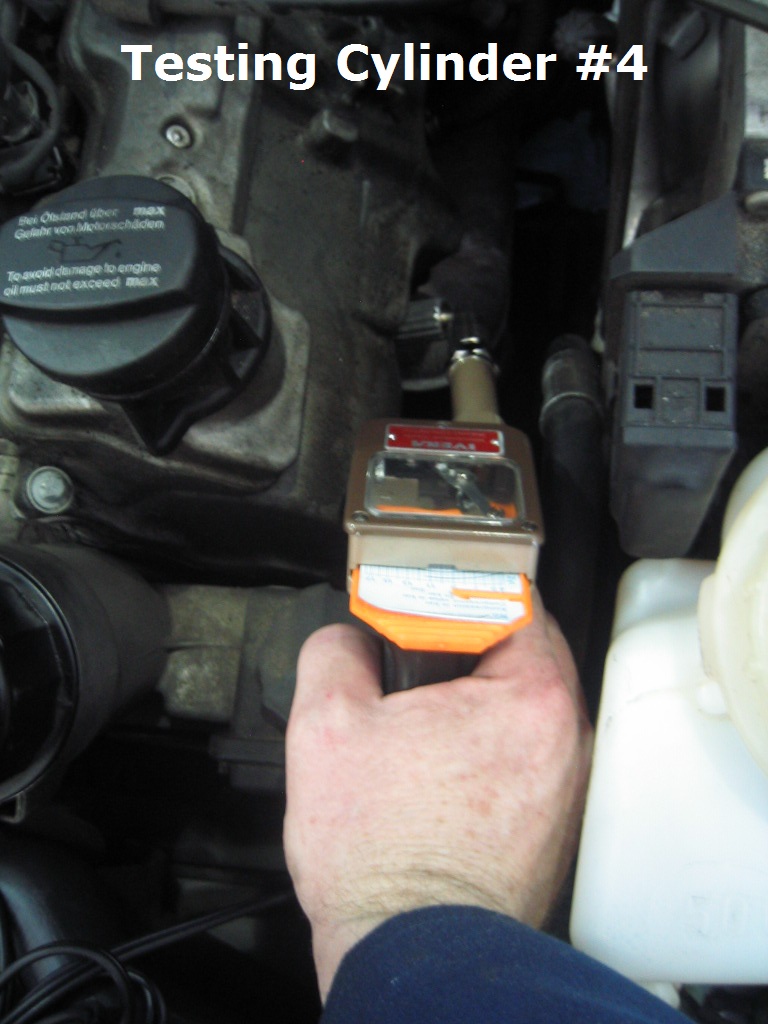

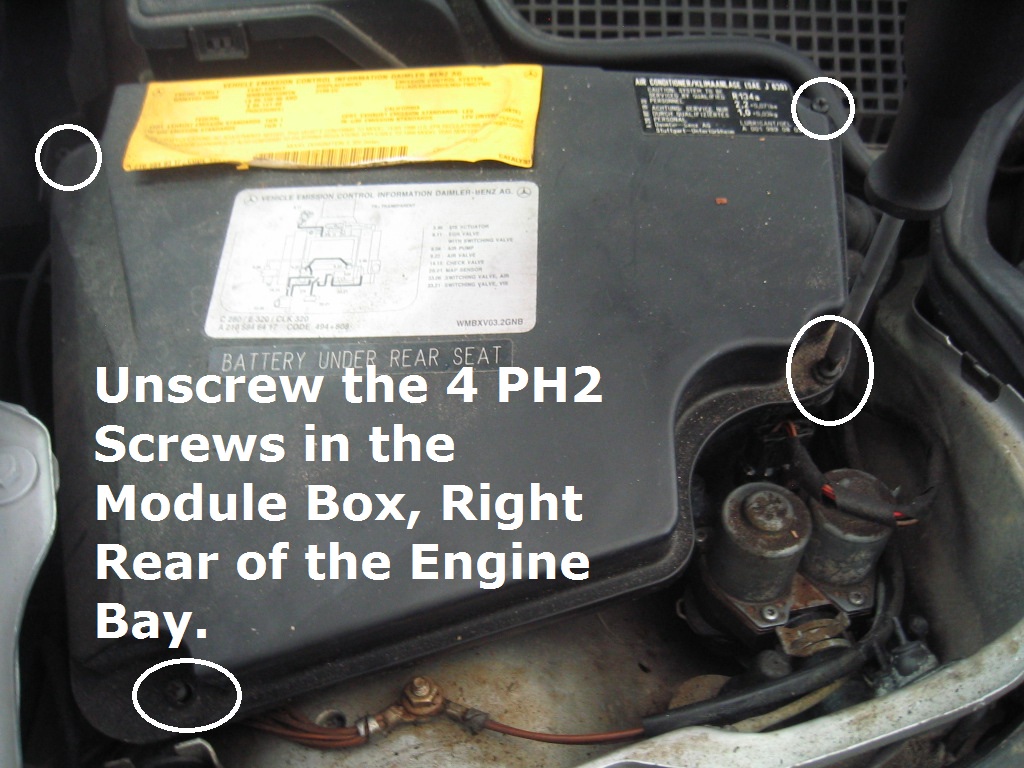

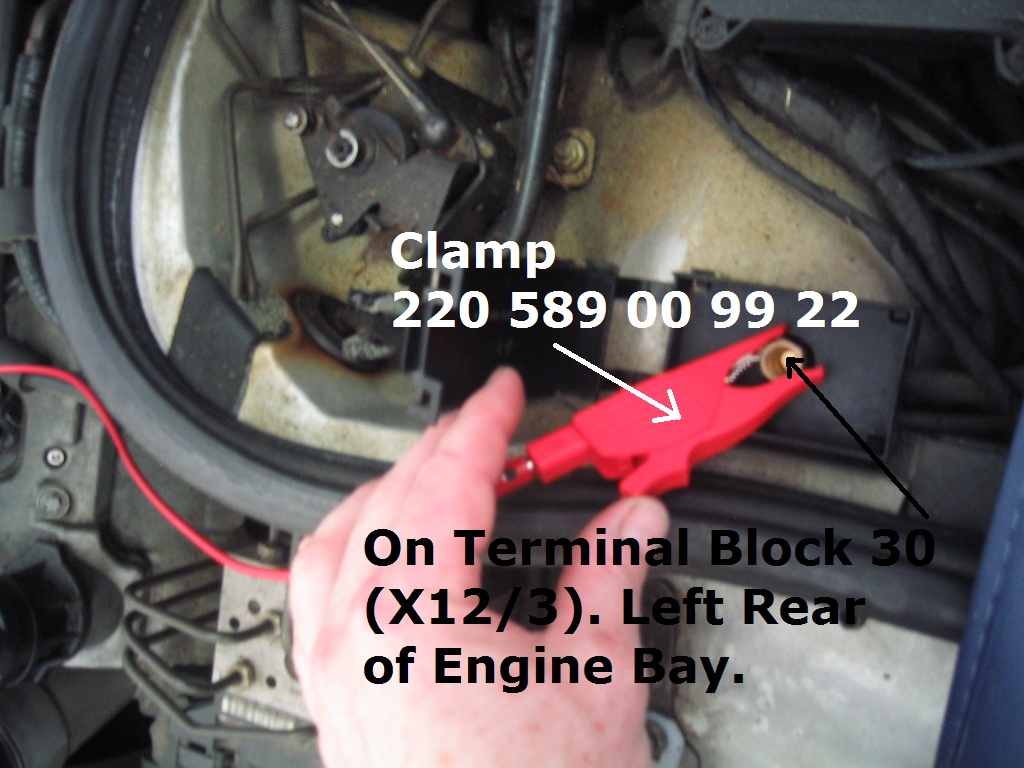

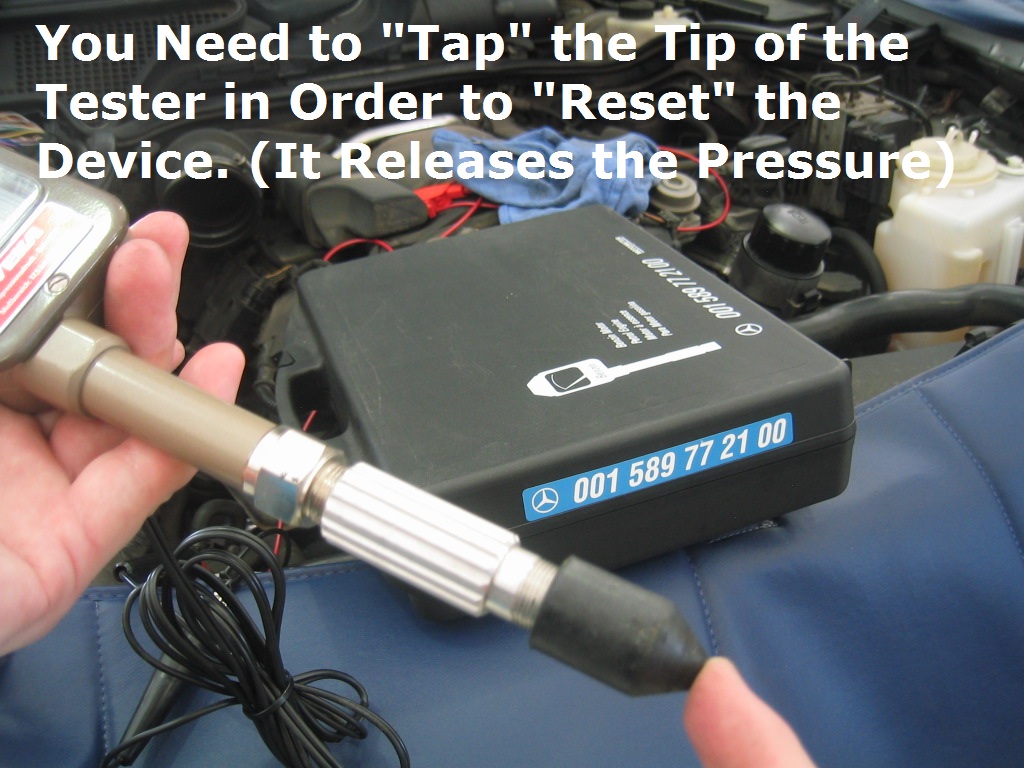

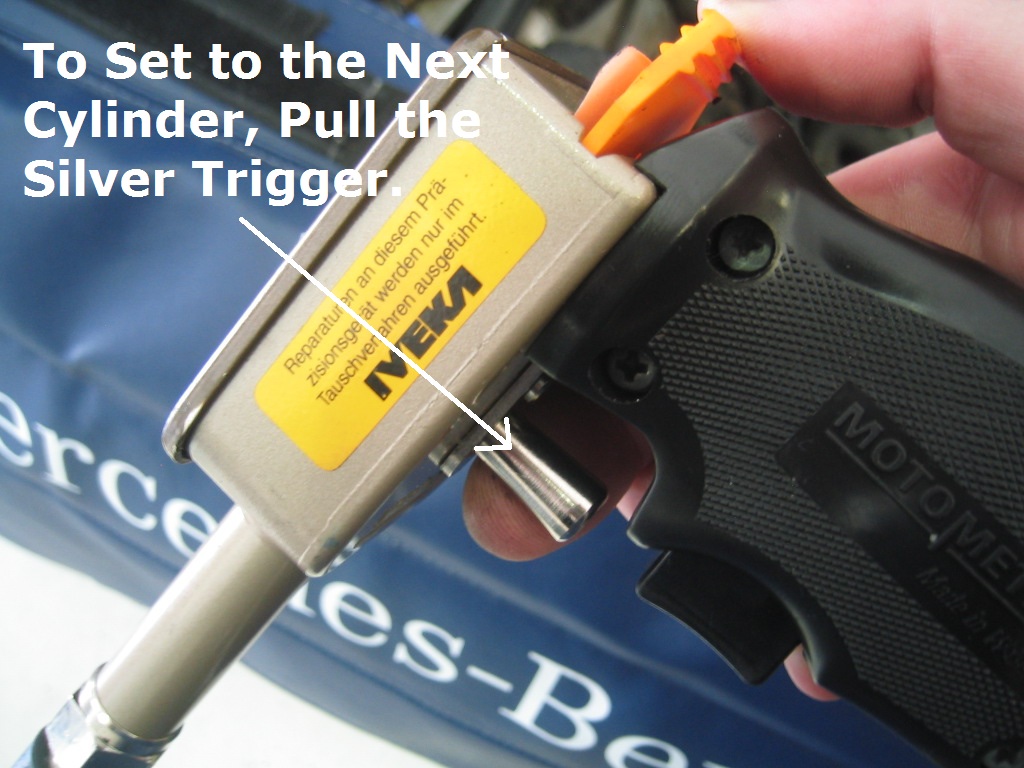

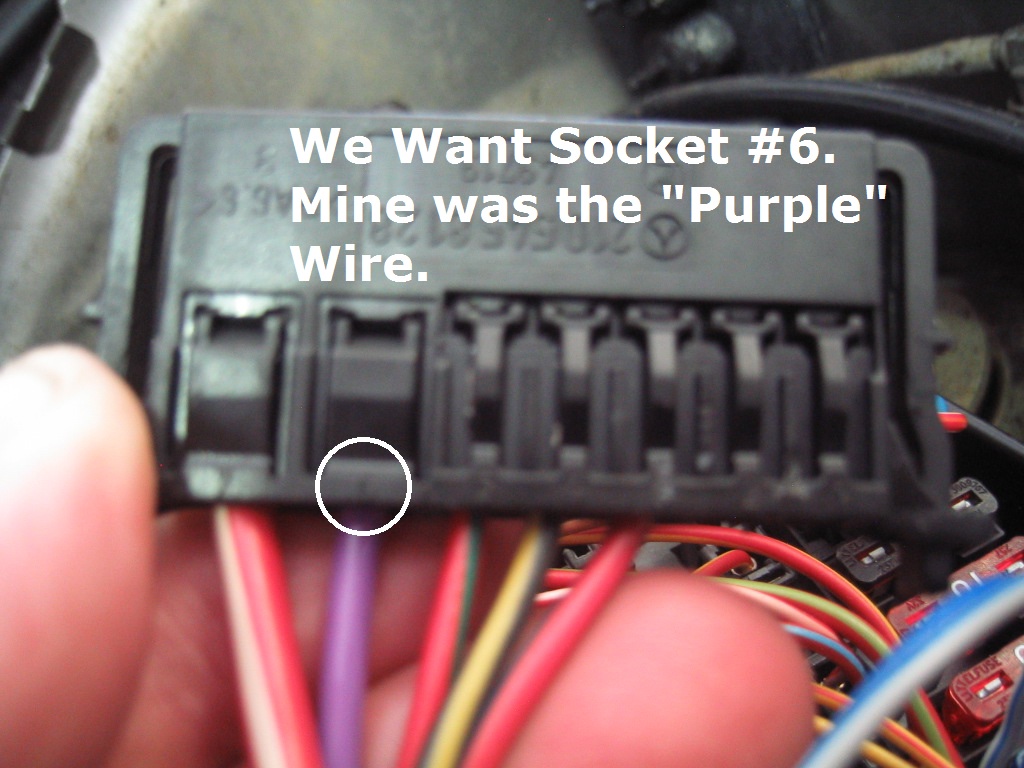

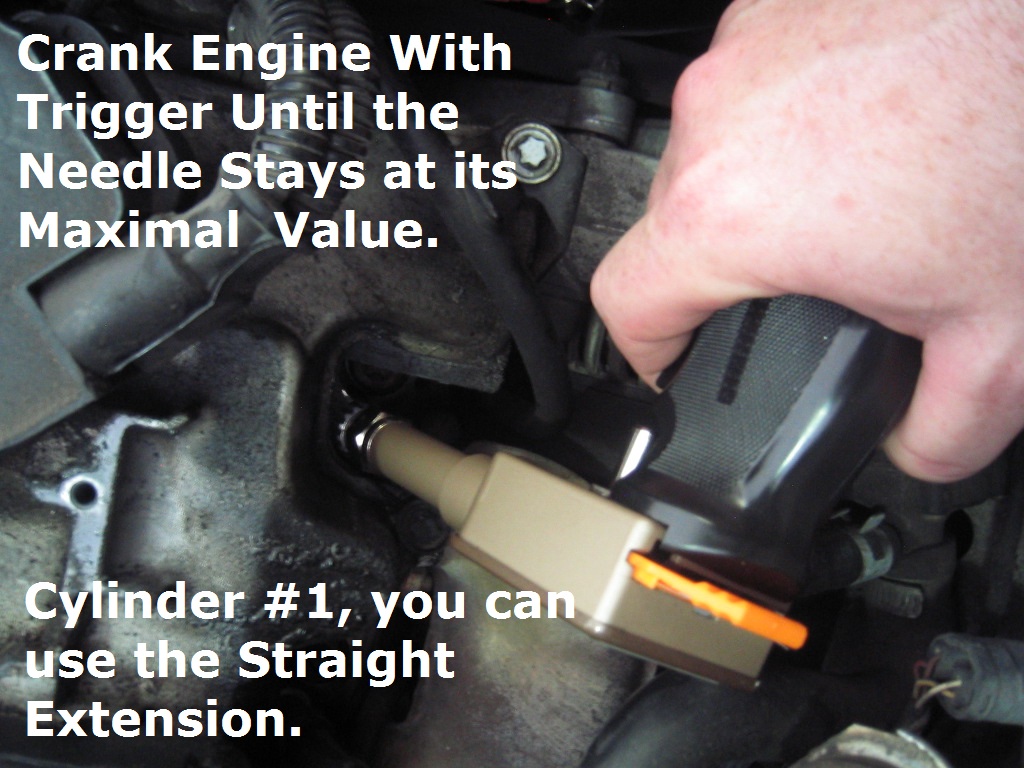

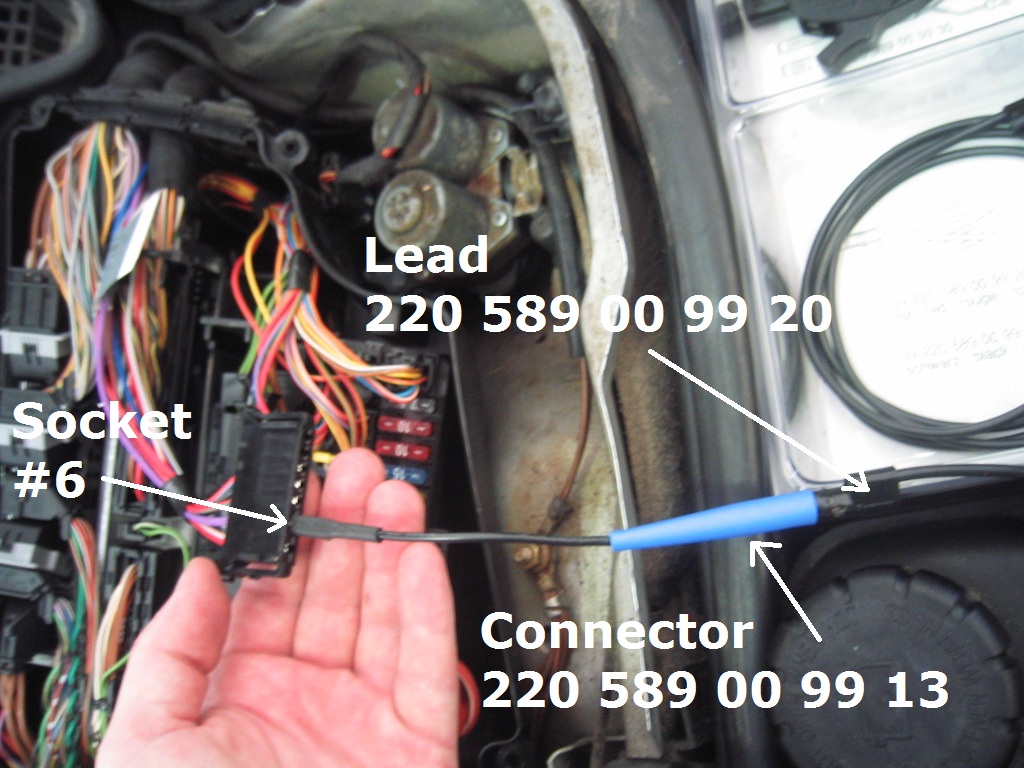

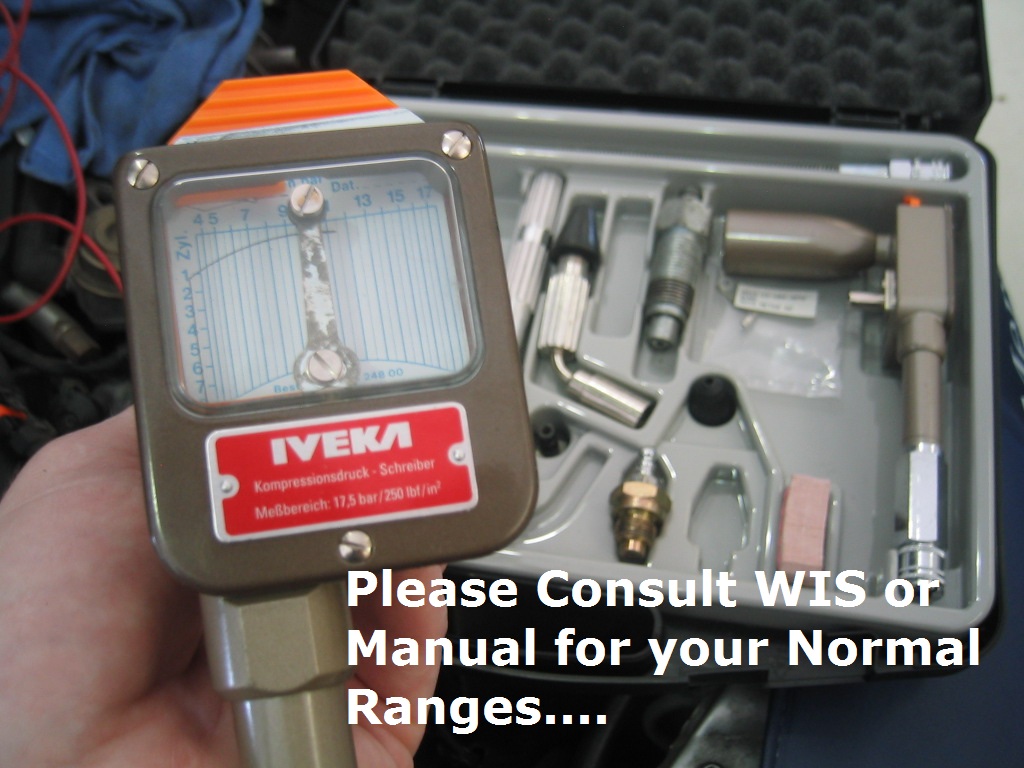

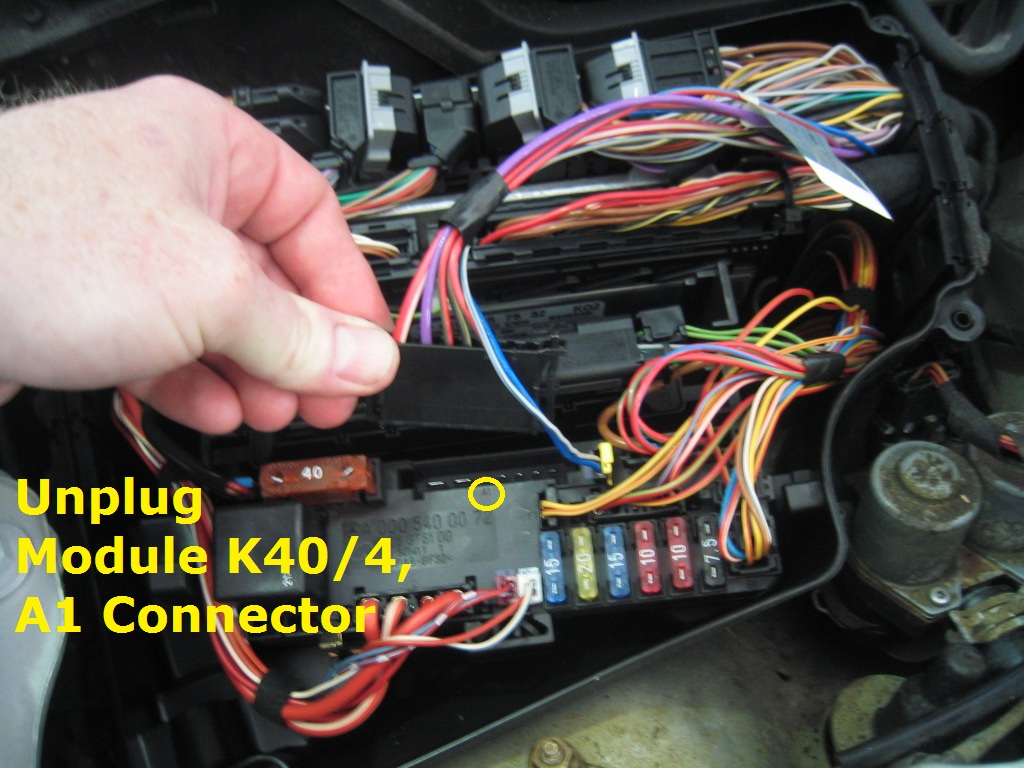

| G-AMG G-Class DIY Host Date registered: May 2006 Location: South Texas Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350  | Photo DI"M"- Cylinder Compression Check M112 Engine W210 Since I had the Spark Plugs out, I thought I would do a Compression Check while I was at it. This should be done with the engine at operating temperature, so use caution on the Hot Engine while doing the Plug Change/Pressure check. *PLEASE NOTE*** DO *NOT* DO COMPRESSION TESTING BY CRANKING THE ENGINE USING THE CAR KEY/IGNITION!!!! YOU MUST CONNECT TO THE K40/4 MODULE TO CRANK ENGINE. Edited by G-AMG 5/6/2012 12:15 AM (1.jpg) (2.jpg) (3.jpg) (4.jpg) (5.jpg) (6.jpg) (7.jpg) (8.jpg) (9.jpg) (10.jpg) (11.jpg) (12.jpg) Attachments ----------------  1.jpg (229KB - 0 downloads) 2.jpg (235KB - 0 downloads) 3.jpg (194KB - 0 downloads) 4.jpg (234KB - 0 downloads) 5.jpg (210KB - 0 downloads) 6.jpg (245KB - 0 downloads) 7.jpg (240KB - 0 downloads) 8.jpg (199KB - 0 downloads) 9.jpg (234KB - 0 downloads) 10.jpg (206KB - 0 downloads) 11.jpg (240KB - 0 downloads) 12.jpg (186KB - 0 downloads) | |
| ||
|
