| rekogniz1 Regular Date registered: Jan 2010 Location: Denver, Colorado Vehicle(s): 1999 G500, Land Rover Disco II, Jaguar S-Type Posts: 81  | ||
| ||
| ||
| Ed Mclass Expert Date registered: Apr 2006 Location: Nashville, Tennessee Vehicle(s): 1958 180a, 2010 GLK, 2000 G 500, 2005 SLK 350 Posts: 1215  | ||
| ||
| ||
| rekogniz1 Regular Date registered: Jan 2010 Location: Denver, Colorado Vehicle(s): 1999 G500, Land Rover Disco II, Jaguar S-Type Posts: 81 | ||
| ||
| ||
| AlanMcR Expert Date registered: Apr 2006 Location: US, CA, Los Altos Vehicle(s): G300DT E300DT 230SL Posts: 3500  | ||
| ||
| ||

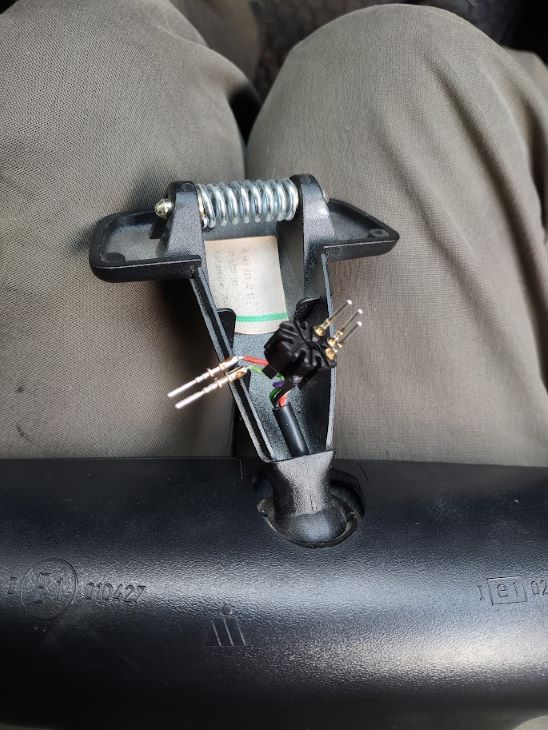

| Otiswesty Administrator Date registered: Jun 2007 Location: Portland, Oregon Vehicle(s): 463.241, 461.213 Posts: 3037 | RE: 1999 G500 Rearview Mirror Security Lights I have a Europa G500, the red and green mirror lights flash together if the fob battery is weak. If they flash alternately, it means "see workshop." I was having some failed starts that we decided were due to a immobilizer defect. The red and green lights would flash in an alternating manner when the car would not start with the key. Turn the key and nothing, just red and green lights. Other times it would started normally with no light flashing. The problem was that though infrequent, the no start would leave me stranded, needing a tow or call to the wife for a pickup. I sent the ECU out for immo delete and now the car starts without fail. The issue now is that with every start, the red and green light will blink alternately for about a minute as you drive out onto the street. Its rather annoying and does attract some attention. Today I took down my rear view mirror with the dog leash technique. Unplugged it, and removed the plug end housing on the mirror itself. There are 5 small wires with long pins, 4 together and one a space over in the plug. I tested them by removing one at a time and found the wires to the red and green lights. Here's a pic with the wires pulled from the plug housing. The green is the lower one that was on it own away from the other wires and the red light wire had a reddish brown color (I'm color blind), and was the first one in the group of four wires closest to the solitary green light wire. Tested the lock function which worked well with the lighting wires disconnected. All back together now, with no more blinking lights or re/green light function. (MirrorWiring.jpg) Attachments ----------------  MirrorWiring.jpg (82KB - 16 downloads) | |
| ||
|
