Front Springs from 461 G280cdi
Topic Tools Message Format
Author
Posted 8/18/2024 7:57 PM
Otiswesty
Administrator




Date registered: Jun 2007
Location: Portland, Oregon
Vehicle(s): 463.241, 461.213
Posts: 3013
2000
Front Springs from 461 G280cdi

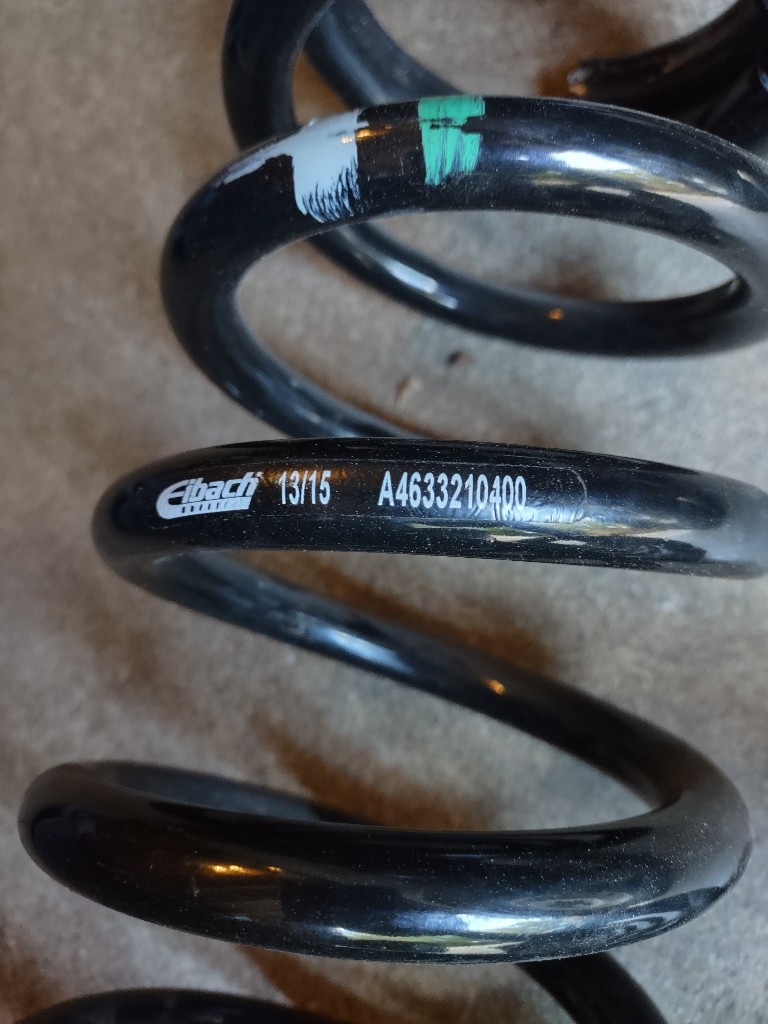

Any idea on these springs?
4633210400
I'm not sure what the 2 color stripes are either, probably due to my color blindness. They came from a G280cdi demonstration vehicle and are new

Here is what it shows in EPC - PERMITTED GROSS VEHICLE WEIGHT: 5400 KG

Figuring out the color stripes would go along way, I do know that they are not the squirrel grey/white as those have a different part number.
Interestingly, they are not progressive. All the coils are the same thickness thru the length of the spring



(IMG_20240818_164428935_HDR_copy_768x1024.jpg)



Attachments
----------------
Attachments IMG_20240818_164428935_HDR_copy_768x1024.jpg (141KB - 44 downloads)
#244168
Top of the page Bottom of the page
Author
Posted 8/23/2024 9:23 AM
GwagenLover
Extreme Veteran


Date registered: Apr 2006
Location: Winston Salem, NC USA 27104
Vehicle(s): 2016 G550 & 2016 GLE350
Posts: 474
300
Re: Front Springs from 461 G280cdi

There is a color code known to most electricians and engineers that goes like this:
BadBoysRapeOurYoungGirlsButVioletGaveWillingly
Black Brown Red Orange Yellow Green Blue Purple Gray White
B - B - R - O - Y - G - B - V - G -W
0 1 2 3 4 5 6 7 8 9
I doubt this is effective, but who knows?
So, is it grey and green or green and gray?
85 or 58
Then again it may be the year: 85
Or maybe a test weight of 5800 KG?
It may have been marked by the guy that tested the pressure on the assembly line.


I just noticed That I left out the yellow, edited it.


Edited by GwagenLover 8/26/2024 5:33 PM
#244169 - in reply to #244168
Top of the page Bottom of the page
Author
Posted 9/3/2024 12:34 AM
Otiswesty
Administrator




Date registered: Jun 2007
Location: Portland, Oregon
Vehicle(s): 463.241, 461.213
Posts: 3013
2000
RE: Front Springs from 461 G280cdi

Yes, they are grey green stripes as you suggested "85."
I'll see what I can find from there
#244170 - in reply to #244168
