G500 2002 Rebuild - First attempt

Topic Tools

Message Format

Author

Posted 1/9/2015 6:53 PM

loowee
Member

Date registered: Oct 2014
Location: Canada
Vehicle(s): G-class G500 w463 2002
Posts: 46

G500 2002 Rebuild - First attempt

Hey guys !

Been putting all my spare time for the last 2 months on the rebuild of a G500 2002 I purchased last summer. the exterior was in bad shape as you can see in the pictures but for a first Rebuild, I'm pretty happy with the result.
Considering I am an automation technician and I don't have much experience with mechanics and cars, my expectations were exceeded and I had lots of fun learning about the rugged G-Class world !

Let's say it is not as efficient as my GLK on the Mileage but it feels much more like a truck, my wife's Hyunday Sonata as more cargo space than the GLK and I can finally fit both our segways in the same vehicule

It's not 100% complete as it is still missing the rear wheel that will be flipped on the right side and uncovered ( had to modify the bracket ) and Led headlights and fogs.
As you probably know, it is not real Brabus material, I wish I had the budget for this type of engine but they are impossible to find at an affordable price anyway.

I've seen some much nicer projects on this forum but I hope mine makes it's place amongst class of 2015 !

Long live ~~Army Tanks~~ G's !

Edited by loowee 1/9/2015 10:15 PM

#226143

Author

Posted 2/24/2015 5:52 PM

loowee
Member

Date registered: Oct 2014
Location: Canada
Vehicle(s): G-class G500 w463 2002
Posts: 46

RE: G500 2002 Rebuild - First attempt

UPDATE : Here are my 2 other G's which I previously owned dreaming about the real size version ;)

Looking for an even smaller size replica for a summer photoshoot !!

#226929 - in reply to #226143

Author

Posted 2/24/2015 10:49 PM

Otiswesty
Administrator

Date registered: Jun 2007
Location: Portland, Oregon
Vehicle(s): 463.241, 461.213
Posts: 3013
2000

Re: G500 2002 Rebuild - First attempt

That is awesome! I love it.

#226937 - in reply to #226929

Author

Posted 2/25/2015 6:09 PM

loowee
Member

Date registered: Oct 2014
Location: Canada
Vehicle(s): G-class G500 w463 2002
Posts: 46

Re: G500 2002 Rebuild - First attempt

Thx Otis !

Now let's see if this 13 year old lunchbox can last another 300 K

#226956 - in reply to #226143

Author

Posted 3/4/2015 11:40 PM

grazza
Veteran

Date registered: Apr 2010
Location: Australia
Vehicle(s): W460 230GE 1988 - OM606 turbo diesel, 722.608 auto
Posts: 277
100

RE: G500 2002 Rebuild - First attempt

Is it a Brabus?

#227072 - in reply to #226143

Author

Posted 3/11/2015 7:27 PM

15903120696

Date registered: Dec 1899
Location:
Vehicle(s):

Re: G500 2002 Rebuild - First attempt

Great job. How you uninstall the dash cover?

#227197 - in reply to #226143

Author

Posted 4/13/2015 12:36 PM

loowee
Member

Date registered: Oct 2014
Location: Canada
Vehicle(s): G-class G500 w463 2002
Posts: 46

RE: G500 2002 Rebuild - First attempt

grazza - 3/4/2015 11:40 PM

Is it a Brabus?

Nope, not a real one, I know it is cheesy to advertise it as one but it first was a prank I was doing to a friend that owns a 2014 model.
I'll most likely remove the BRABUS lettering on front grille and rear pillar, it'll go back to my retirement goal box

#227698 - in reply to #227072

Author

Posted 4/13/2015 12:40 PM

loowee
Member

Date registered: Oct 2014
Location: Canada
Vehicle(s): G-class G500 w463 2002
Posts: 46

Re: G500 2002 Rebuild - First attempt

15903120696 - 3/11/2015 7:27 PM

Great job. How you uninstall the dash cover?

Pretty simple, you have little screws to remove when you take the ashtray out, be cafeful, these pins are weak and I broke one although it still holds well in place when I screwed it back in.
Then it's just a matter of pulling the whole console trim straight out, it's holding with 2-3 clamps on each side.

Watch not to pull too far, there is a bunch of connectors that need to be disconnected as soon as you get unsnap the clamps.

#227699 - in reply to #227197

Author

Posted 4/13/2015 1:55 PM

Dragonwagon
New user

Date registered: Feb 2015
Location: San Juan del Sur, Nicaragua
Vehicle(s): MB G400 2001, Toyota LC 70 (99) & 100 (98)
Posts: 4

Re: G500 2002 Rebuild - First attempt

Looks great. My ashtray was only held by pressure with some padding around it. Might have been the work of the PO but it actually works quite well and it is easy to get in and out

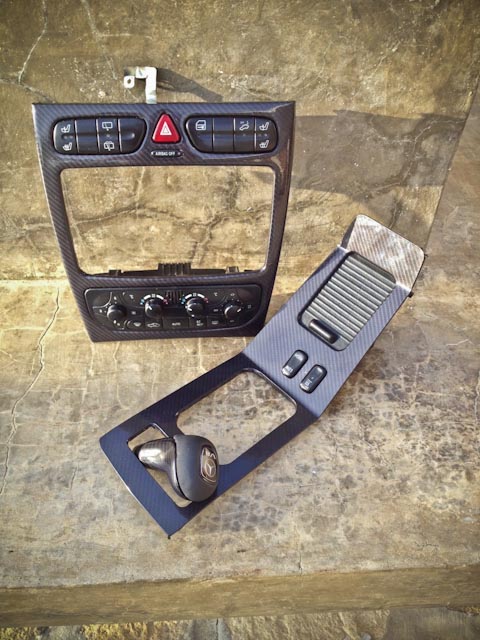

PS: Great minds think alike:

(G400-CF-piecesA-2.jpg)

Attachments
----------------


#227700 - in reply to #226143

Author

Posted 5/13/2015 2:16 PM

loowee
Member

Date registered: Oct 2014
Location: Canada
Vehicle(s): G-class G500 w463 2002
Posts: 46

Re: G500 2002 Rebuild - First attempt

Nice job ! I also got a steering wheel cover from ACE RACING ( brand ) that is part leather and part carbon fiber just like the trims. All wood inserts are changed to carbon fiber, side door panels included

Im now on a roof mount racking project, photos to follow this summer.

Thanks for sharring !

#228103 - in reply to #226143

Author

Posted 10/5/2015 8:13 PM

King_GH
Extreme Veteran

Date registered: Oct 2011
Location: London
Vehicle(s): 95 G300 RHD
Posts: 324
300

RE: G500 2002 Rebuild - First attempt

Nice job but I think you need to at least change the headlights to match the whole modernisation. Everything looks believable but the headlights are stuck in the 80's. I think it's because you went for the very latest front grill. However if you had gone to the previous grill, my eyes may not expect to see a projector headlight. The contrast makes it draw attention.

#229777 - in reply to #226143
