ECU Location

Hi,

I need help in finding the ecu on my ML270 CDI auto. Can anybody point me to the right location please, if possible with illustration or diagrams, would appreciated much.

Thank you very much.
#199918
Top of the page Bottom of the page
Author
Posted 6/4/2013 7:10 AM
ianstaley
Member


Date registered: Feb 2013
Location: Pontefract
Vehicle(s): ML 270CDi, W202, Camry and Toyota Supra MK3
Posts: 7

Re: ECU Location

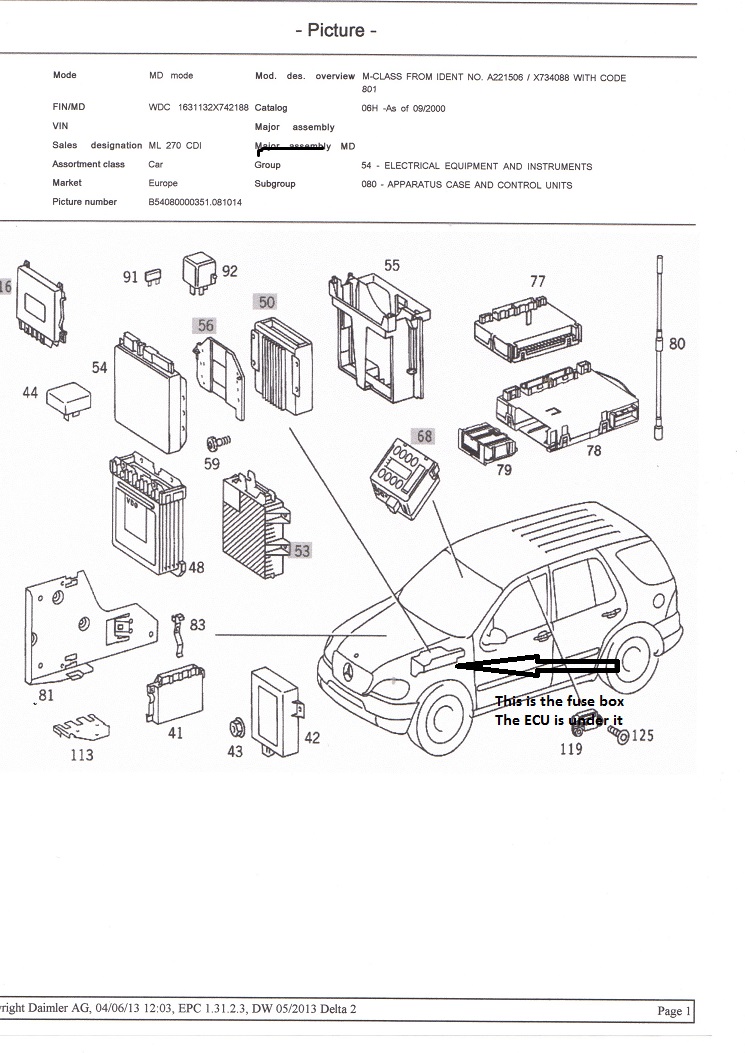

HI you don't say which ECU there are several in the ML, however, I am making the assumption that it will be the Engine ECU. see the picture taken from the electronic parts catalogue below.




Edited by ianstaley 6/4/2013 7:12 AM




(img093.jpg)



Attachments
----------------
Attachments img093.jpg (214KB - 29 downloads)
