W163 rims - centre hole size
Topic Tools Message Format
Author
Posted 10/7/2010 9:08 PM
dusty-G
Member




Date registered: Oct 2007
Location: Bunbury, Western Australia
Vehicle(s): W460 300GD rebuild, ML280
Posts: 17

W163 rims - centre hole size

Hi all

I am visiting from the G-wagen forum.

I am looking into making adapters to fit ML rims to my W460 G-wagen, as rims for this are as scarce as hens teeth.

The G rims are located by a spigot about 5mm high and dia 84.1mm. Are the ML rims also located this way, and if so, what size is the ML hole?

The ML bolts are on a 5x112mm spacing. How long would the studs need to be - can anybody advise?

Thanks a lot

Adrian
#178462
Top of the page Bottom of the page
Author
Posted 10/9/2010 8:31 PM
BeachAssault
Member


Date registered: Oct 2006
Location:
Vehicle(s): 2001 ML430 Sport; 1999 E320 Wagon
Posts: 6

RE: W163 rims - centre hole size

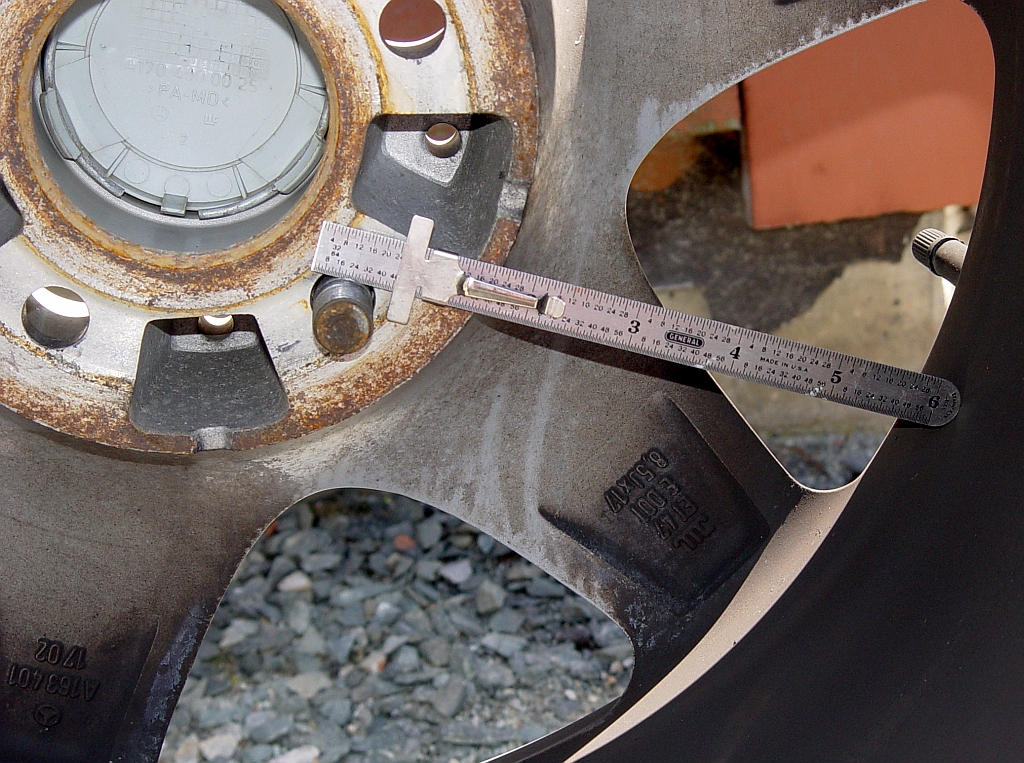

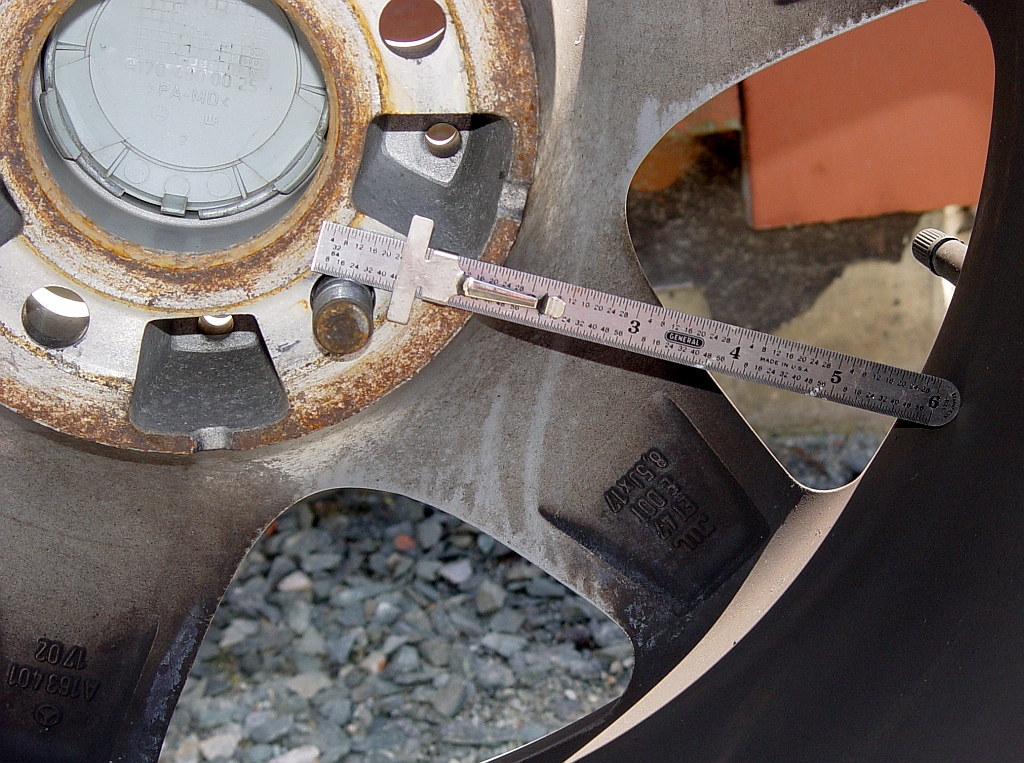

I hope this helps.  I took this picture for another reason, but it may help.  It is the inside of the wheels that came with the '01 ML430 Sport.  They are 17 inch - 7 spoke (8.5 X 17).  I think you can get a rough idea of the center hole diameter by scaling from the ruler in the picture.




(ML 8-5X17.jpg)



Attachments
----------------
Attachments ML 8-5X17.jpg (690KB - 29 downloads)
#178533 - in reply to #178462
Top of the page Bottom of the page
Author
Posted 10/12/2010 12:41 AM
dusty-G
Member




Date registered: Oct 2007
Location: Bunbury, Western Australia
Vehicle(s): W460 300GD rebuild, ML280
Posts: 17

Re: W163 rims - centre hole size

Hello BeachAssault. I need an accurate figure to give to the adapter fabricator.
Cheers, thanks for posting.
#178599 - in reply to #178462
Top of the page Bottom of the page
Author
Posted 9/23/2013 10:23 PM
grginos
New user


Date registered: Aug 2013
Location:
Vehicle(s):
Posts: 1

RE: W163 rims - centre hole size

G wagen is 5x130 and ML is 5x112 offset
#217307 - in reply to #178462
Top of the page Bottom of the page
Author
Posted 10/6/2013 6:47 PM
FrankMB
Member




Date registered: Dec 2006
Location:
Vehicle(s):
Posts: 30
25
Re: W163 rims - centre hole size

W163 Center bore is 66.5 so 84mm to 66.5 adapter, studs would depend which ML wheel you are going to use as they varying offsets.
#217505 - in reply to #217307
Top of the page Bottom of the page
Author
Posted 10/22/2013 9:17 PM
fernweh



Date registered: Apr 2006
Location: Calabasas, CA - Centenario, BCS - Luebeck, Germany
Vehicle(s): Few Mercedes-Benz, a Toyota Amphibious and a Vespa
2000
Re: W163 rims - centre hole size

Whoa....what an old thread....

here is the easy answer:

#217780 - in reply to #217505
Top of the page Bottom of the page
Author
Posted 10/22/2013 9:30 PM
fernweh



Date registered: Apr 2006
Location: Calabasas, CA - Centenario, BCS - Luebeck, Germany
Vehicle(s): Few Mercedes-Benz, a Toyota Amphibious and a Vespa
2000
Re: W163 rims - centre hole size

Whoa....what an old thread....

here is the easy answer:

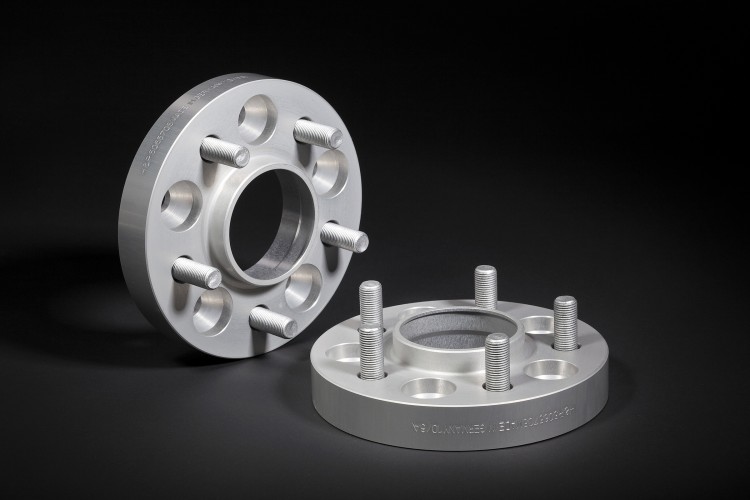

(ML adapter w bolts.jpg)



Attachments
----------------
Attachments ML adapter w bolts.jpg (43KB - 23 downloads)
#217781 - in reply to #217505
