Avoiding Roof supports for Antenna install
Topic Tools Message Format
Author
Posted 1/13/2021 12:59 AM
imjustdave
Regular


Date registered: Feb 2012
Location: Bonney Lake Washington USA
Vehicle(s): 2004 G500, 2014 Audi Q7 TDI, 2006 Ram 3500.
Posts: 77
50
Avoiding Roof supports for Antenna install

Looking to install a NMO antenna mount in the center of the G500 roof for a 2M antenna.

Anyone have some photos of a G500 2004 ish with the headliner removed? Or schematic print of the underside?

Trying to avoid taking down the headliner if I can help it.

Thanks
W7GEL
#242371
Top of the page Bottom of the page
Author
Posted 1/13/2021 9:18 AM
gbenzer
Extreme Veteran




Date registered: Dec 2006
Location: Georgia
Vehicle(s): 2007 G-500, 2017 Audi Q7
Posts: 418
300
RE: Avoiding Roof supports for Antenna install

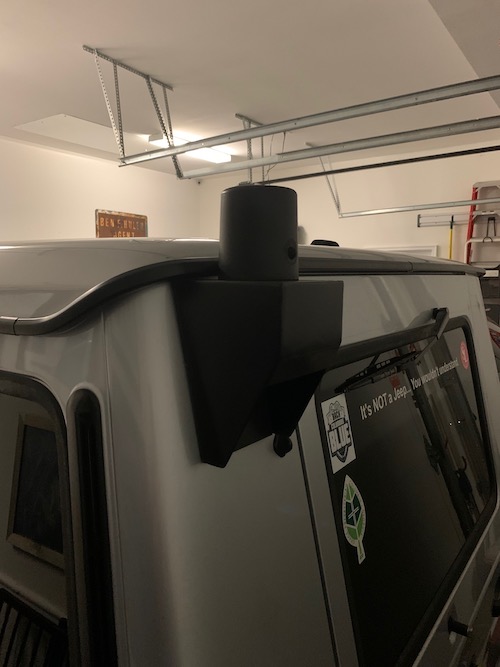

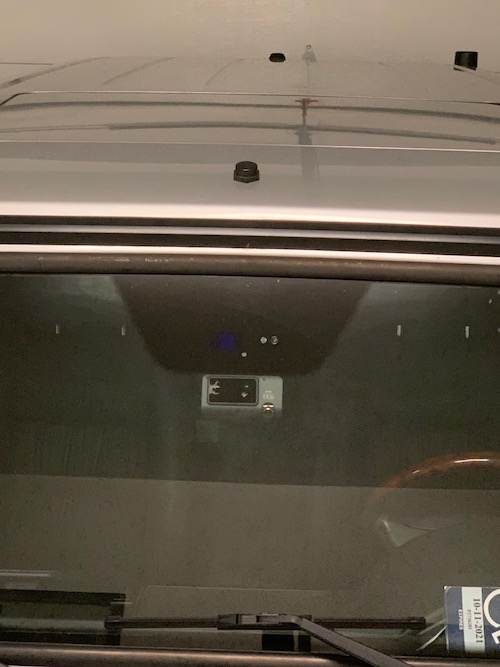

Go through where the "rhino" antenna is. You only have to pull down the overhead console. The hole size is perfect for NMO. I used a military style mount on the rear.
Good luck, 73, W4WY



(antenna mount 2.jpg)



(antenna mount 1.jpg)



Attachments
----------------
Attachments antenna mount 2.jpg (70KB - 34 downloads)
Attachments antenna mount 1.jpg (62KB - 45 downloads)
#242372 - in reply to #242371
