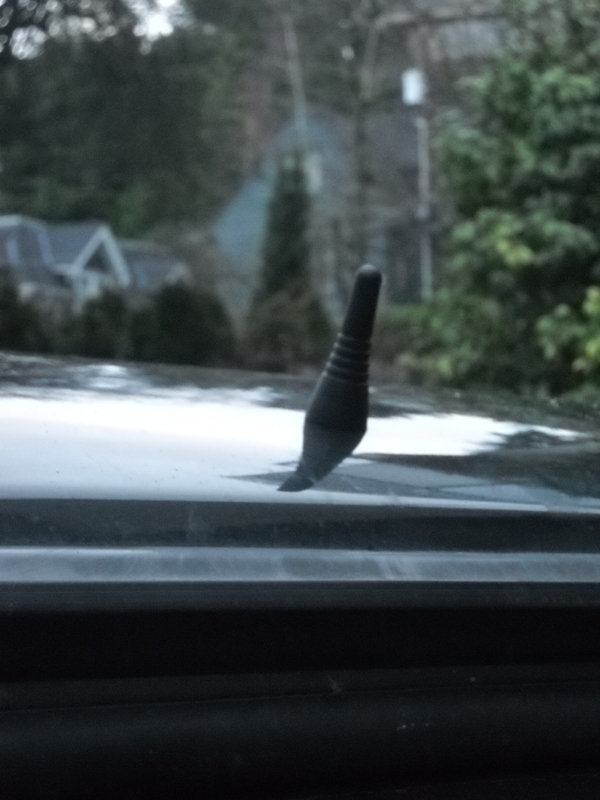

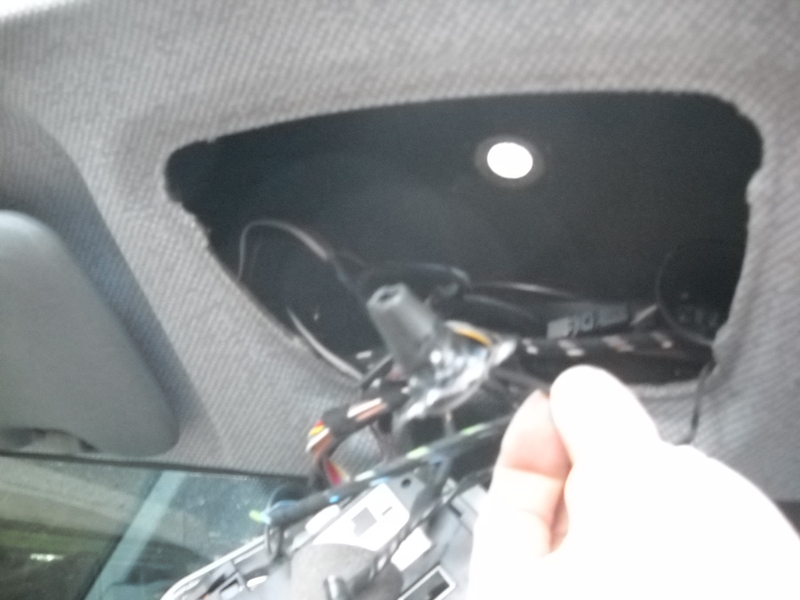

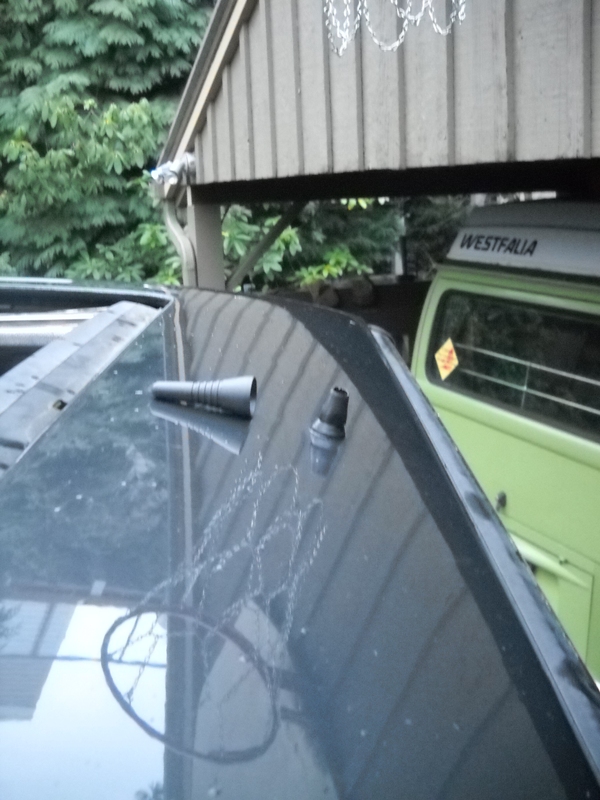

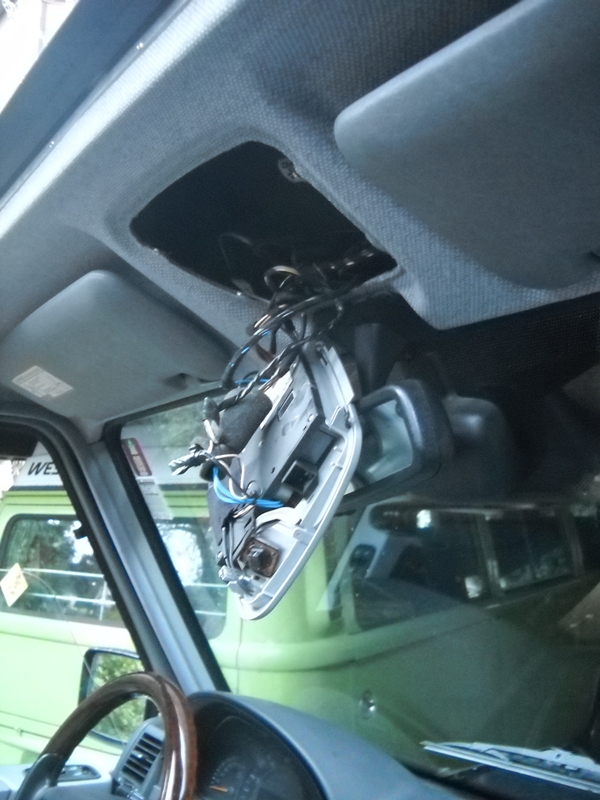

| Otiswesty Administrator Date registered: Jun 2007 Location: Portland, Oregon Vehicle(s): 463.241, 461.213 Posts: 3013  | Repair of damaged roof top antenna My 2002 G500 had the roof top antenna damaged in a car wash a month or two ago. The roller in the car wash bent the small rubber nipple and made a slight dent in the roof behind it. The rubber of the nipple was slightly cracked but I didn't think much of it at the time and put it in the top 1/3 of my to do list. So last week I finally got around to fixing it. I had parked the G outside overnight, something which rarely happens as I like to have it garaged. Some pure Oregon rainwater entered throught the crack in the rubber and collected in the dome light. When I drove to work in the AM and went around my first corner I had some water dripping down much to my dismay. All of a sudden it was at the top of the to do list.  Access to the underside of the antenna is easy, pushing the entire domelight unit forward toward the windshield and pulling down on the upper edge. The antenna boot has an integrated grommet and can be pushed down into the cab. The dent pushed out easily and the antenna boot was replaced in the hole using some clear silicone sealant around the base. the dealer sold me a new cover which goes on top of the original boot. It is slightly more prominent than the original piece and has an internal flange which interfaces with the groove near the base of the original nipple. All told, it was a very simple and easy repair. The headliner did not get wet as the water that did get in must have dripped directly down into the main dome light clear plastic bowl. Lucky. The silicone was the "shower in 1 hour" type, but as it started to rain about 5 minutes later I had to pull it into the garage.  (post 017.jpg) (post 019.jpg) (post 021.jpg) (post 020.jpg) Attachments ----------------  post 017.jpg (261KB - 47 downloads) post 019.jpg (293KB - 42 downloads) post 021.jpg (312KB - 34 downloads) post 020.jpg (257KB - 33 downloads) | |
| ||
| ||
| s2kysk Member Date registered: Aug 2009 Location: PNW Vehicle(s): 04' G500 Black/Gray, 00' 528it BMW, 86' 911 turbo Posts: 40  | ||
| ||
| ||
| 4x4abc Date registered: Apr 2006 Location: La Paz, Baja California, Mexico Vehicle(s): 02 G500  | ||
| ||
| ||
| Inkblotz Expert Date registered: Apr 2006 Location: Georgia Vehicle(s): 90 300GD "Thundering Turtle II", w/ 603A turbo Posts: 3187 | ||
| ||
| ||
| DUTCH Administrator Doppelgänger Date registered: Apr 2006 Location: US, GA, Atlanta Vehicle(s): 2015 Audi Q7 3.0 TDI,2018 Sprinter Posts: 9963 | ||
| ||
| ||
| dalexa001 Veteran Date registered: Feb 2008 Location: Anniston, Alabama, USA Vehicle(s): 2011 G550, 2012 Sequoia Posts: 157  | ||
| ||
| ||
| DUTCH Administrator Doppelgänger Date registered: Apr 2006 Location: US, GA, Atlanta Vehicle(s): 2015 Audi Q7 3.0 TDI,2018 Sprinter Posts: 9963 | ||
| ||
| ||
| Otiswesty Administrator Date registered: Jun 2007 Location: Portland, Oregon Vehicle(s): 463.241, 461.213 Posts: 3013 | Re: Repair of damaged roof top antenna Inkblotz - 1/19/2010 4:11 AM Though it was fun figuring out how to do it.... Too bad you did not document the damage at the car wash. They would have paid for the entire repair. Back to hand washing. The car wash was not a good option as I had already lost my receipt to a half full cup of coffee and the repair seemed less of a pain than small claims court or dealing with... Since I drive my car, like, all the time, handwashing is not the best option for me. I was initially hesitant to post the repair as it seems kind of simple, but thought it might be nice to show what is behind the dome light and easy access to add a GPS antenna like Harald did or something like that. In reality, it is not much harder than changing out a side marker bulb except no tools are required. The part number for the boot is 202-827-00-31. Full retail at the dealer was $13.00, probably cheaper through some peoples sources.  | |
| ||
| ||
| ||
| ||

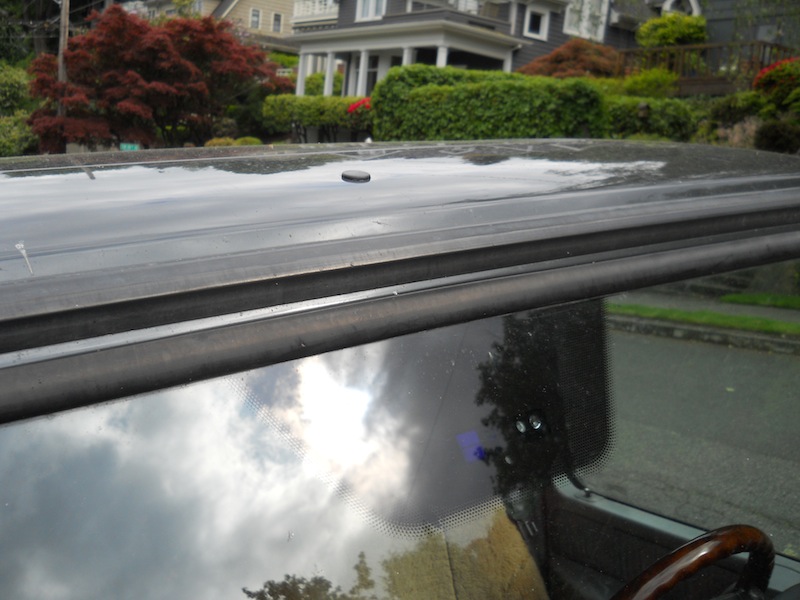

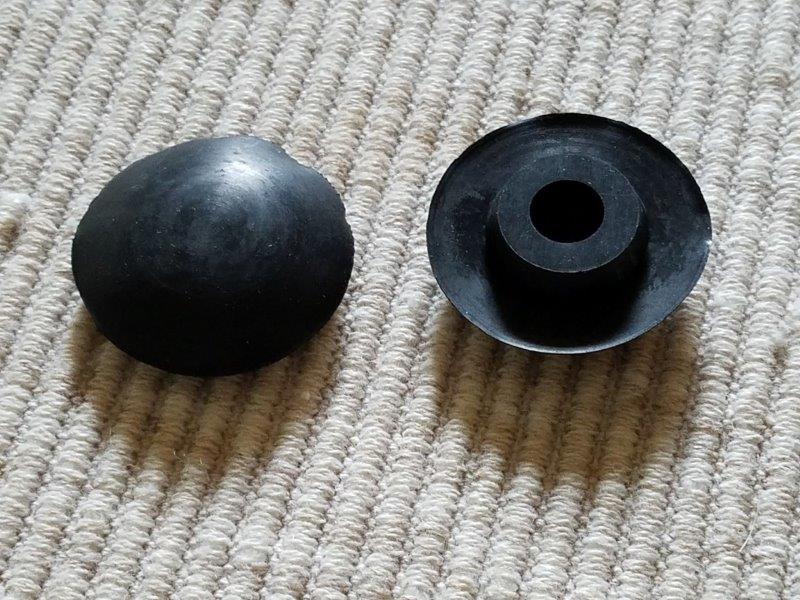

| Otiswesty Administrator Date registered: Jun 2007 Location: Portland, Oregon Vehicle(s): 463.241, 461.213 Posts: 3013 | RE: Repair of damaged roof top antenna I replaced that rhino horn with a 3/4" patio chair glide in black from ACE and some butyl sealant The original antenna is only for the cell phone (inop) and analog Tele-Aid (also inop), so I see no reason to keep or repair it. Future source of leaks. (PatioChairGlide.JPG) Attachments ---------------- PatioChairGlide.JPG (116KB - 30 downloads) | |
| ||
| ||
| Inkblotz Expert Date registered: Apr 2006 Location: Georgia Vehicle(s): 90 300GD "Thundering Turtle II", w/ 603A turbo Posts: 3187 | ||
| ||
| ||

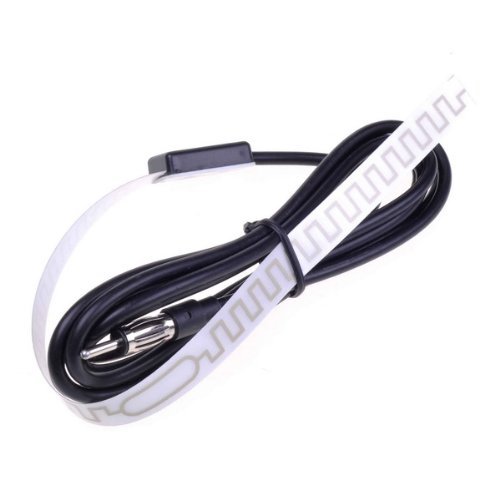

| Otiswesty Administrator Date registered: Jun 2007 Location: Portland, Oregon Vehicle(s): 463.241, 461.213 Posts: 3013 | RE: Repair of damaged roof top antenna Per EPC, they make a sliding window version with the in glass antenna, I think it would be hard to find this though. There are pretty nice through glass antennas that can be applied to the bottom of the windshield. I was thinking of going that route in my VW Bus https://www.amazon.com/dp/B013X8T8BC/ref=asc_df_B013X8T8BC5148447/?t... (41aAglSWgDL.jpg) Attachments ---------------- 41aAglSWgDL.jpg (21KB - 21 downloads) | |
| ||
| ||
| Inkblotz Expert Date registered: Apr 2006 Location: Georgia Vehicle(s): 90 300GD "Thundering Turtle II", w/ 603A turbo Posts: 3187 | ||
| ||
| ||
| gbenzer Extreme Veteran Date registered: Dec 2006 Location: Georgia Vehicle(s): 2007 G-500, 2017 Audi Q7 Posts: 418  | ||
| ||
| ||
| Otiswesty Administrator Date registered: Jun 2007 Location: Portland, Oregon Vehicle(s): 463.241, 461.213 Posts: 3013 | RE: Repair of damaged roof top antenna gbenzer - 4/25/2018 7:54 AM If you get a HAM style mount no drilling is required even though the salesman may tell you it needs a ¾" hole in the roof. I am pretty sure the hole is 3/4" as the patio chair glide was that size and fit perfect. There should already be a coax cable going up to the roof from the center console, although it may not be the right size for a HAM radio. Would be cool if you could reuse it. If not it can serve as a pull wire. | |
| ||
| ||

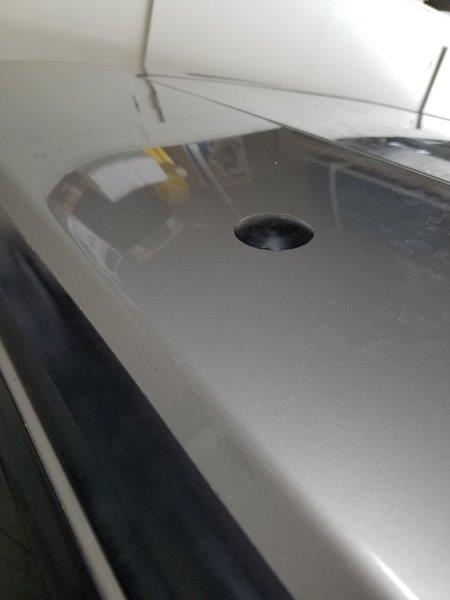

| Vehicross99 Veteran Date registered: May 2009 Location: So Texas/SW Colorado Vehicle(s): 2006 G500 Posts: 161 | RE: Repair of damaged roof top antenna Me too........  (20200217_115248.jpg) (20200217_154220.jpg) Attachments ---------------- 20200217_115248.jpg (109KB - 30 downloads) 20200217_154220.jpg (20KB - 26 downloads) | |
| ||
| ||
| ||
|
