DIY MB Hitch and MB wiring harness install

Photo DIY trailer hitch install with light wiring harness & brake controller wiring harness installation.
Caution: This post is for entertainment only. Do not try this at home unless you take responsibility for your own work.
Nor do I take responsibility for the lack of entertainment value…..

Many thanks to G-AMG for all his help and use of his specialized tools. (And lift!!) The better photo shots are all his!
Also thanks to everyone else that has posted earlier on various parts of the hitch installation. It helped me along the way on my install.

Parts list

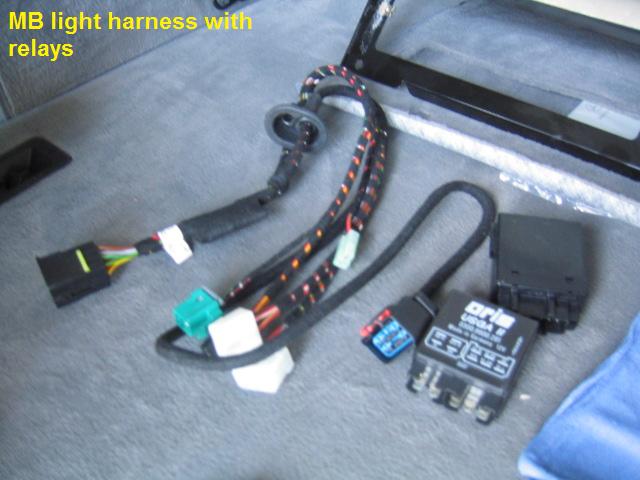

MB Trailer Hitch kit B6 685 0036 (includes light wiring harness)
MB Brake Controller wiring harness B6 685 0051
Draw-Tite harness Part #20127

Here are the install sheets to follow: You will want to download these because they have more detail than I am presenting.
Trailer Hitch install
http://www.fourbyfourclub.com/Manuals/W463TrailerHitchInstallation....
Brake controller wiring harness install
http://www.fourbyfourclub.com/Manuals/Brakes-Electric-Install[1].pd...
Thanks to fourbyfourclub.com.
You will want to pay attention to all the general safety notes & warnings in these 2 documents.

My install was done in 2 steps. We installed the trailer hitch on one day and installed the wiring for the lights & brake controller on another day.

Hitch install
This is Step #8 thru #12 in the Hitch Install sheet.

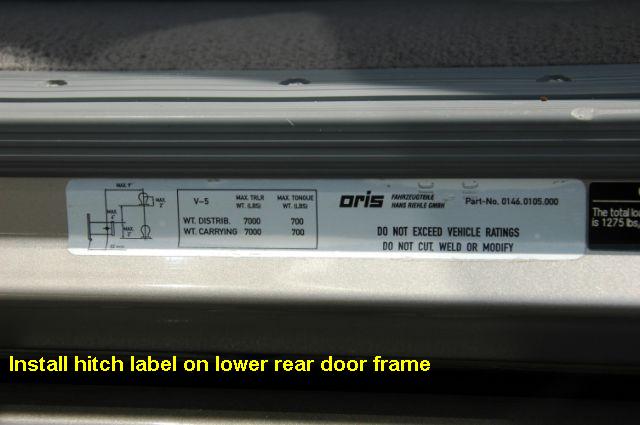

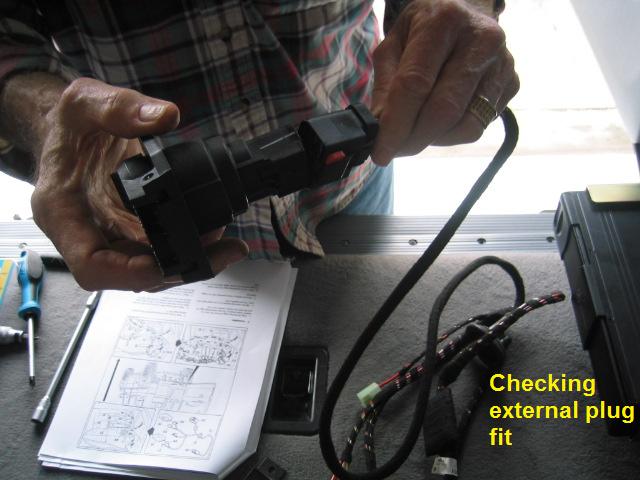

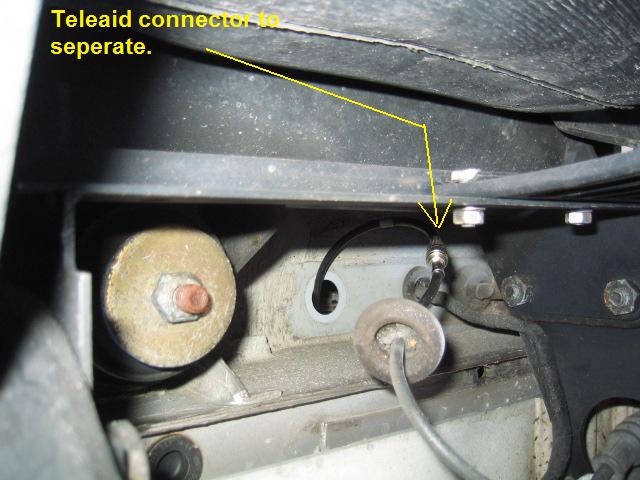

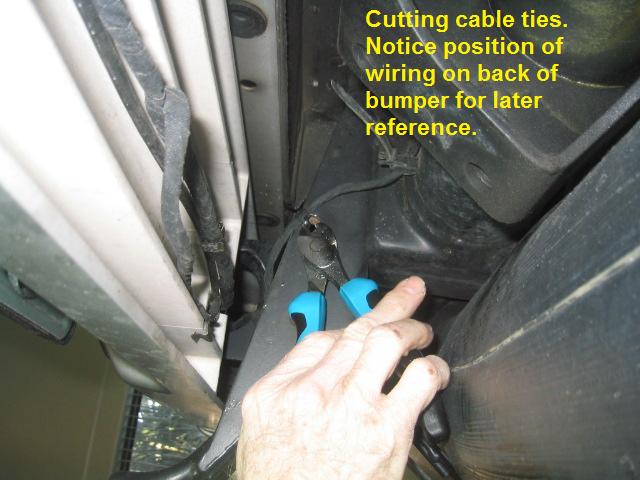

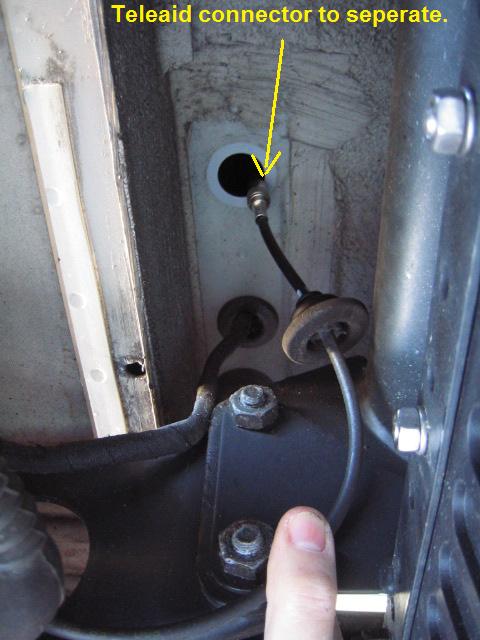

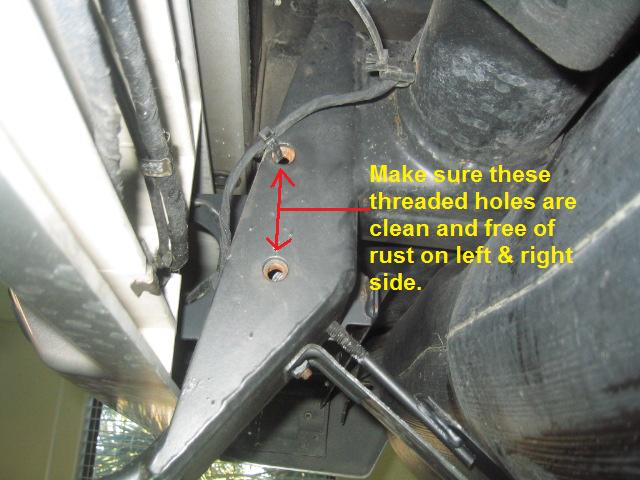

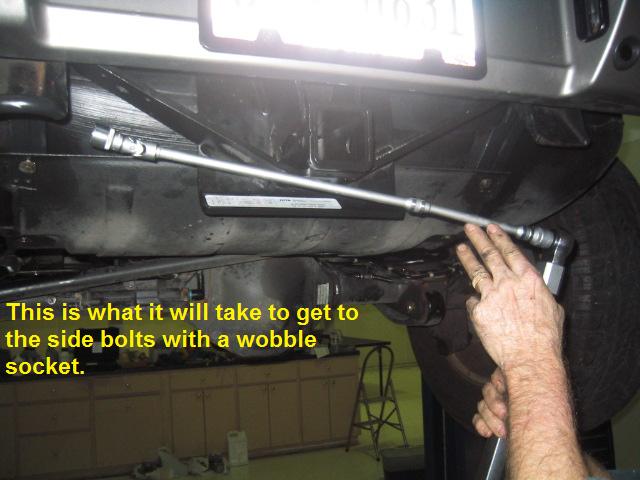

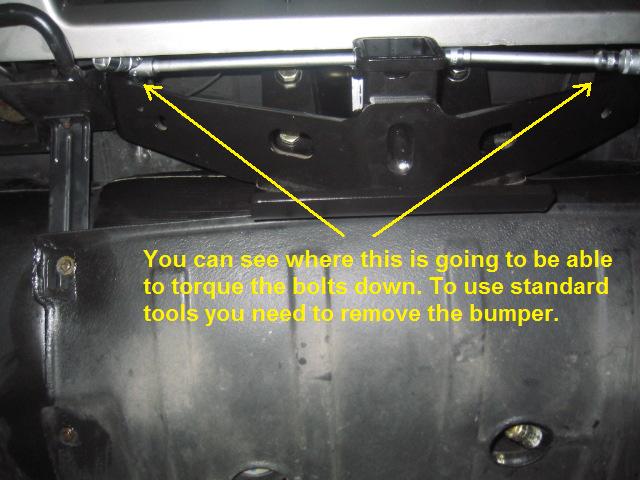

We found that the hitch could be positioned in place easily and the bolts reached with out removing the bumper so we proceeded with the bumper in place.

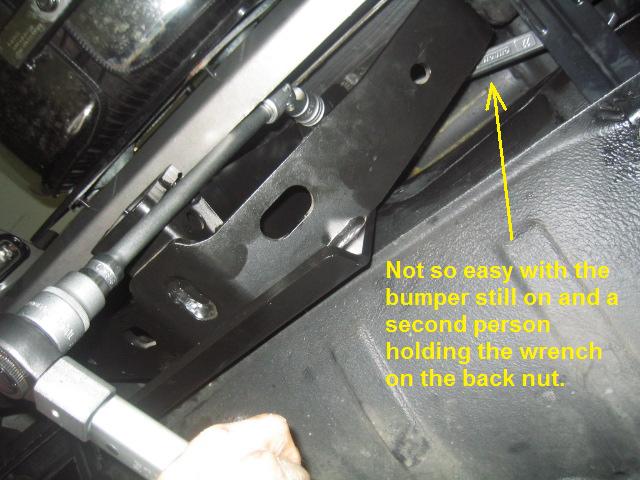

In retrospect, if you do not have the specialized tools available (wobble sockets, socket universal joints & extensions), you would be well advised to go ahead and remove the bumper. It gets very hard to correctly torque down the bolts with the bumper in place.

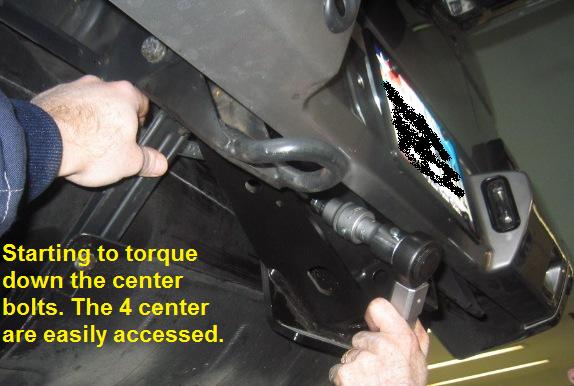

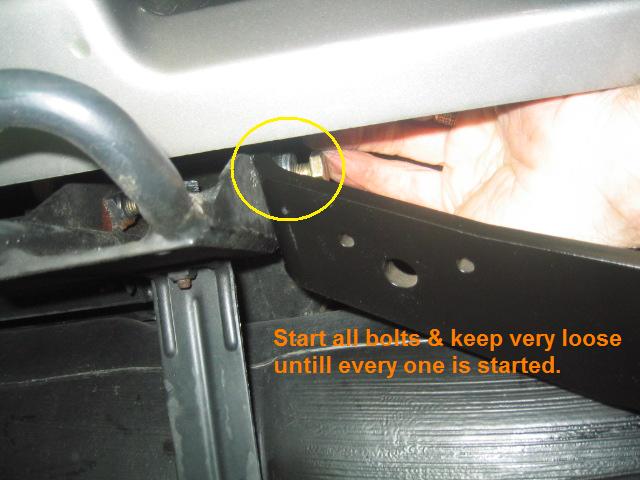

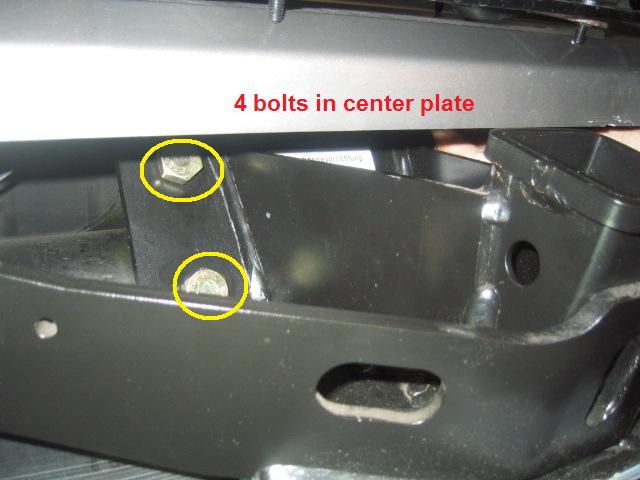

You will want to install all the bolts loose. The side tie bars were the hardest bolts to start. My threaded holes were rusty & needed to be cleaned out with a tap. Once all the bolts are started tighten the side tie bar bolts and then the 4 center bolts.
You will need to tighten them to the required torque.



Edited by Vehicross99 11/21/2019 3:09 PM




(IMG_6955a.jpg)



(IMG_6954a.jpg)



(IMG_6957a.jpg)



(IMG_6956a.jpg)



(IMG_6959a.jpg)



(IMG_6960a.jpg)



(IMG_6958a.jpg)



(IMG_6962a.jpg)



Attachments
----------------
Attachments IMG_6955a.jpg (51KB - 220 downloads)
Attachments IMG_6954a.jpg (55KB - 208 downloads)
Attachments IMG_6957a.jpg (46KB - 217 downloads)
Attachments IMG_6956a.jpg (39KB - 202 downloads)
Attachments IMG_6959a.jpg (47KB - 218 downloads)
Attachments IMG_6960a.jpg (51KB - 201 downloads)
Attachments IMG_6958a.jpg (46KB - 204 downloads)
Attachments IMG_6962a.jpg (58KB - 190 downloads)
#169346
Top of the page Bottom of the page
Author
Posted 4/6/2010 11:42 PM
Vehicross99
Veteran




Date registered: May 2009
Location: So Texas/SW Colorado
Vehicle(s): 2006 G500
Posts: 161
100
RE: Photo DIY Hitch and wiring install

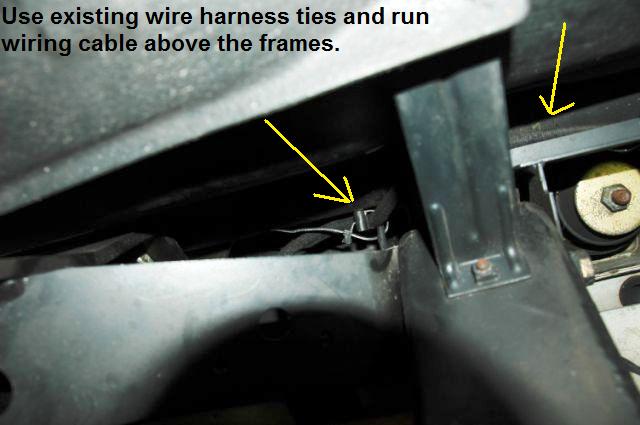

Wiring installation
Both the light harness & Brake Controller was done at the same time.
There were 2 items different from the instruction sheets:

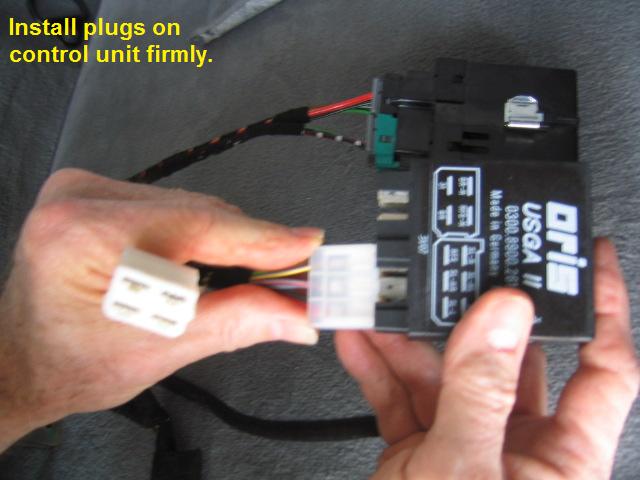

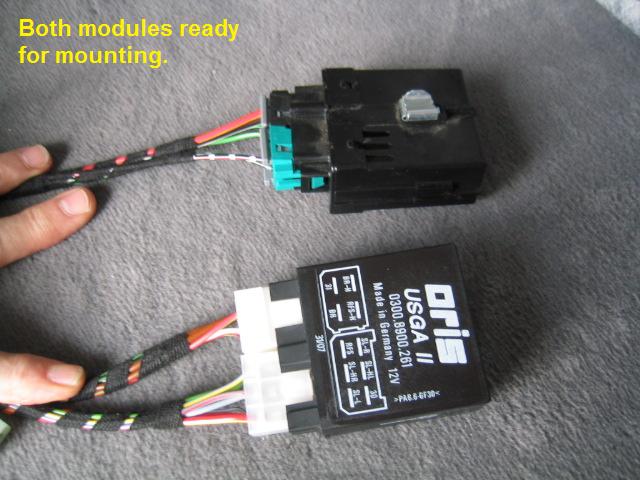

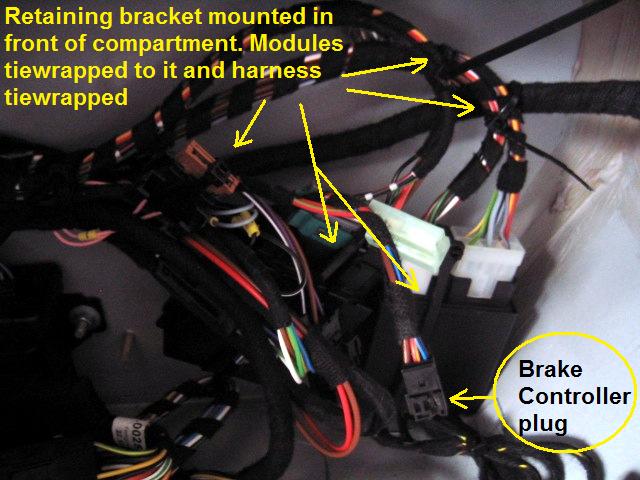

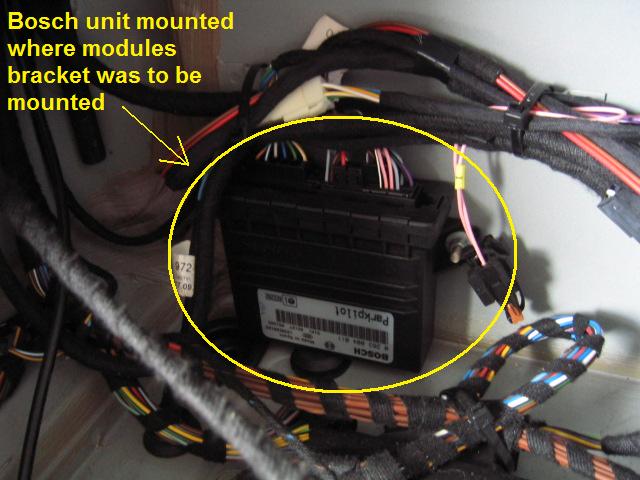

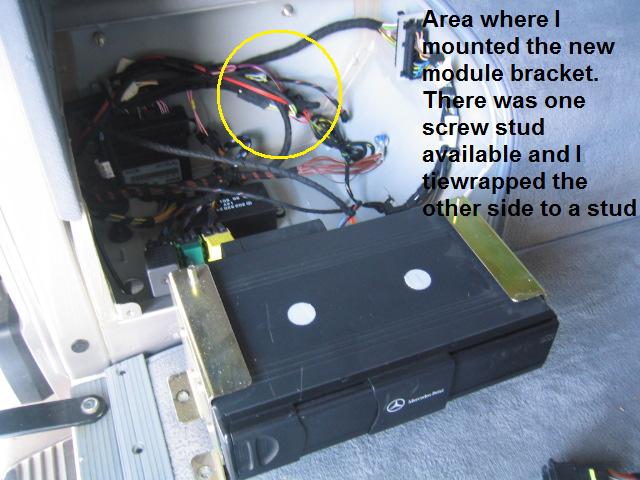

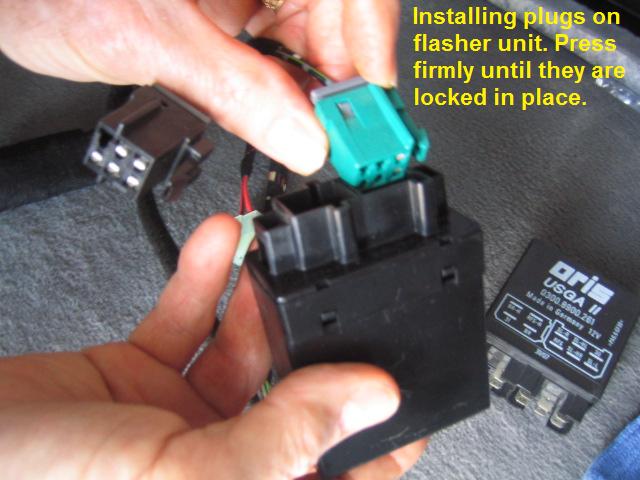

1. I had a Bosch unit where the instructions said to mount the relay bracket so I mounted the bracket in the front of the compartment and then mounted the 2 relay assemblies to it.

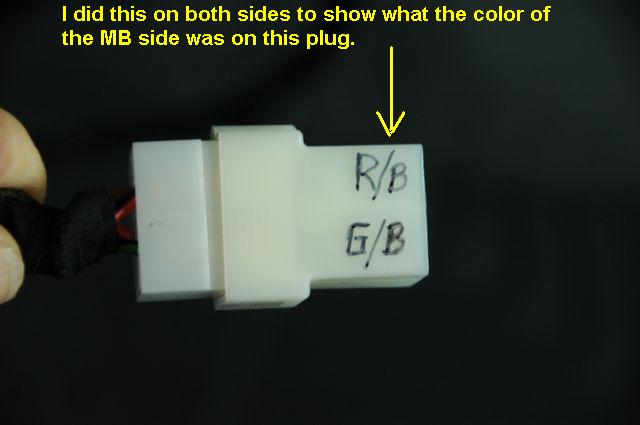

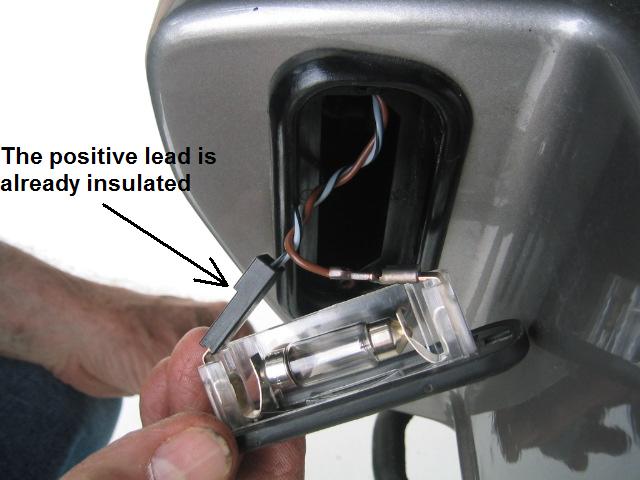

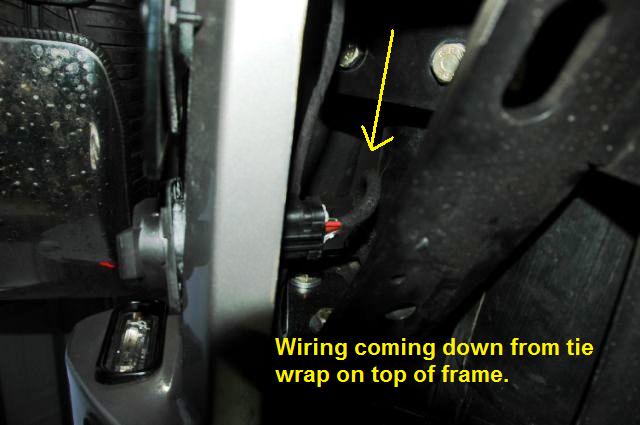

2. My license plate lights already had full insulators on the connectors.




(IMG_7013a.jpg)



(IMG_7014a.jpg)



(IMG_7016a.jpg)



(IMG_7017a.jpg)



(IMG_7019a.jpg)



(IMG_7020a.jpg)



(IMG_7022a.jpg)



(IMG_7023a.jpg)



(IMG_7024a.jpg)



(IMG_7025a.jpg)



Attachments
----------------
Attachments IMG_7013a.jpg (68KB - 221 downloads)
Attachments IMG_7014a.jpg (49KB - 205 downloads)
Attachments IMG_7016a.jpg (44KB - 205 downloads)
Attachments IMG_7017a.jpg (50KB - 206 downloads)
Attachments IMG_7019a.jpg (70KB - 211 downloads)
Attachments IMG_7020a.jpg (71KB - 215 downloads)
Attachments IMG_7022a.jpg (54KB - 200 downloads)
Attachments IMG_7023a.jpg (51KB - 219 downloads)
Attachments IMG_7024a.jpg (47KB - 220 downloads)
Attachments IMG_7025a.jpg (48KB - 198 downloads)
#169347 - in reply to #169346
Top of the page Bottom of the page
Author
Posted 4/6/2010 11:45 PM
Vehicross99
Veteran




Date registered: May 2009
Location: So Texas/SW Colorado
Vehicle(s): 2006 G500
Posts: 161
100
RE: Photo DIY Hitch and wiring install

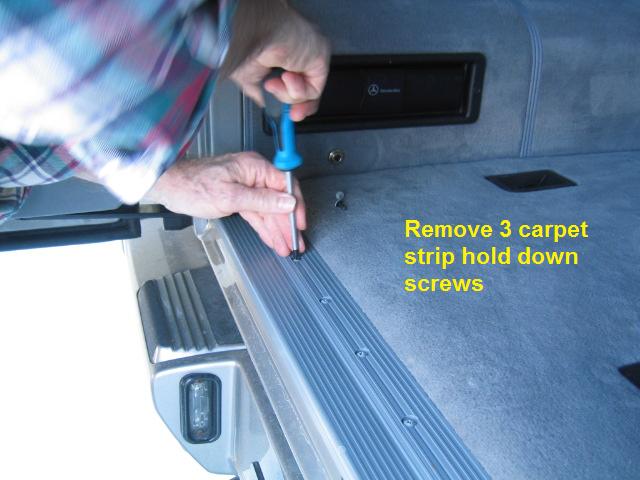

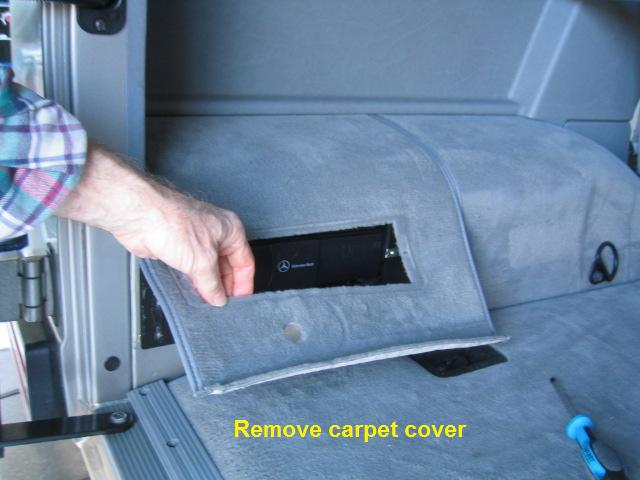

Wiring continued part 2:

Edited by Vehicross99 4/6/2010 11:51 PM




(IMG_7026a.jpg)



(IMG_7027a.jpg)



(IMG_7028a.jpg)



(IMG_7029a.jpg)



(IMG_7030a.jpg)



(IMG_7031a.jpg)



(IMG_7032a.jpg)



(IMG_7032b.jpg)



(IMG_7033a.jpg)



Attachments
----------------
Attachments IMG_7026a.jpg (48KB - 209 downloads)
Attachments IMG_7027a.jpg (43KB - 203 downloads)
Attachments IMG_7028a.jpg (48KB - 208 downloads)
Attachments IMG_7029a.jpg (47KB - 214 downloads)
Attachments IMG_7030a.jpg (59KB - 198 downloads)
Attachments IMG_7031a.jpg (36KB - 188 downloads)
Attachments IMG_7032a.jpg (52KB - 204 downloads)
Attachments IMG_7032b.jpg (59KB - 210 downloads)
Attachments IMG_7033a.jpg (47KB - 217 downloads)
#169348 - in reply to #169346
Top of the page Bottom of the page
Author
Posted 4/6/2010 11:52 PM
Vehicross99
Veteran




Date registered: May 2009
Location: So Texas/SW Colorado
Vehicle(s): 2006 G500
Posts: 161
100
RE: Photo DIY Hitch and wiring install

Wiring continued part 3:



(IMG_7034a.jpg)



(IMG_7035a.jpg)



(IMG_7037a.jpg)



(IMG_7038a.jpg)



(IMG_7039a.jpg)



(IMG_7040a.jpg)



(IMG_7042a.jpg)



(IMG_7043a.jpg)



(IMG_7044a.jpg)



(IMG_7046a.jpg)



(IMG_7047a.jpg)



(IMG_7049a.jpg)



Attachments
----------------
Attachments IMG_7034a.jpg (52KB - 205 downloads)
Attachments IMG_7035a.jpg (44KB - 203 downloads)
Attachments IMG_7037a.jpg (59KB - 222 downloads)
Attachments IMG_7038a.jpg (56KB - 206 downloads)
Attachments IMG_7039a.jpg (33KB - 215 downloads)
Attachments IMG_7040a.jpg (51KB - 207 downloads)
Attachments IMG_7042a.jpg (43KB - 202 downloads)
Attachments IMG_7043a.jpg (61KB - 214 downloads)
Attachments IMG_7044a.jpg (71KB - 207 downloads)
Attachments IMG_7046a.jpg (74KB - 218 downloads)
Attachments IMG_7047a.jpg (66KB - 223 downloads)
Attachments IMG_7049a.jpg (43KB - 211 downloads)
#169349 - in reply to #169346
Top of the page Bottom of the page
Author
Posted 4/7/2010 12:00 AM
Vehicross99
Veteran




Date registered: May 2009
Location: So Texas/SW Colorado
Vehicle(s): 2006 G500
Posts: 161
100
RE: Photo DIY Hitch and wiring install

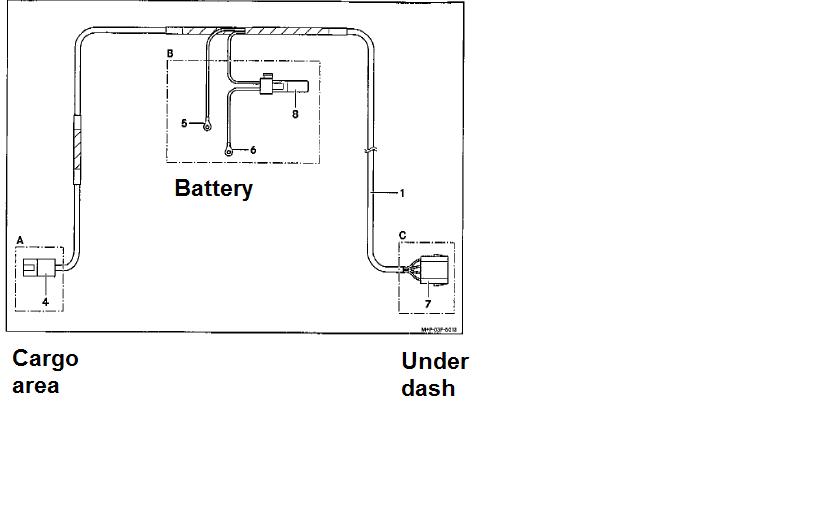

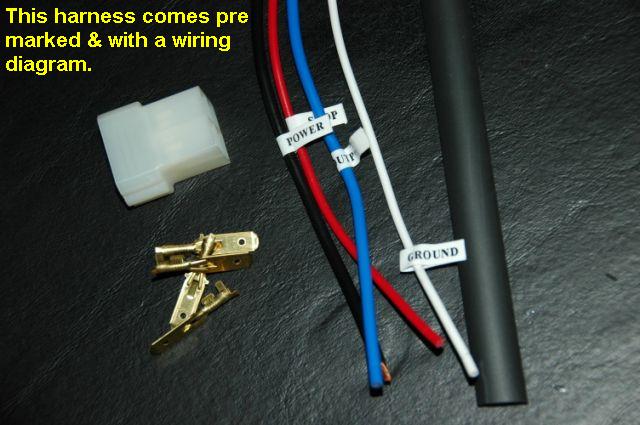

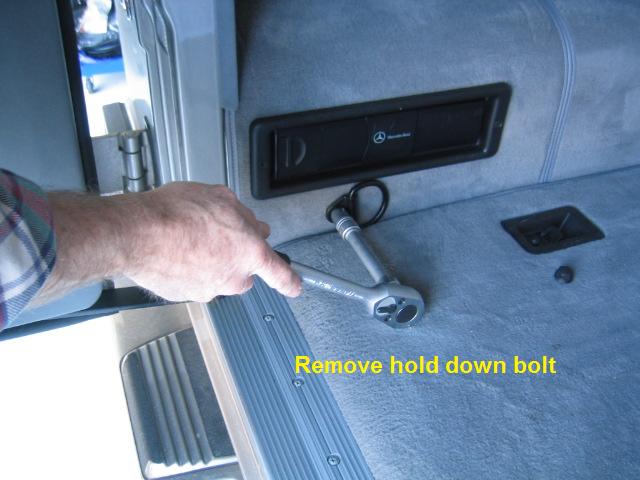

Next you add the Brake controller wiring harness

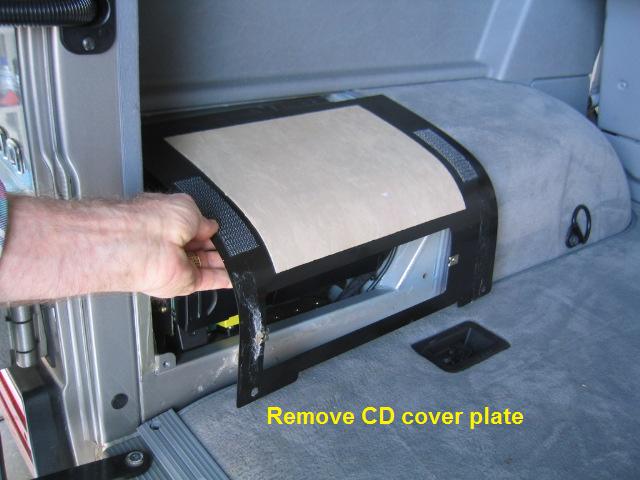

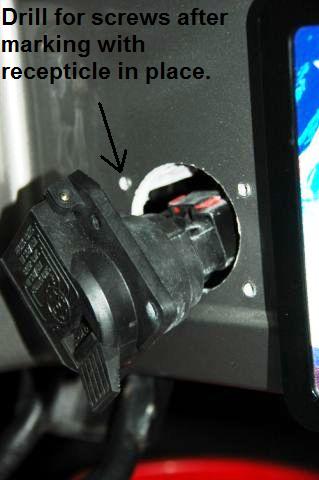

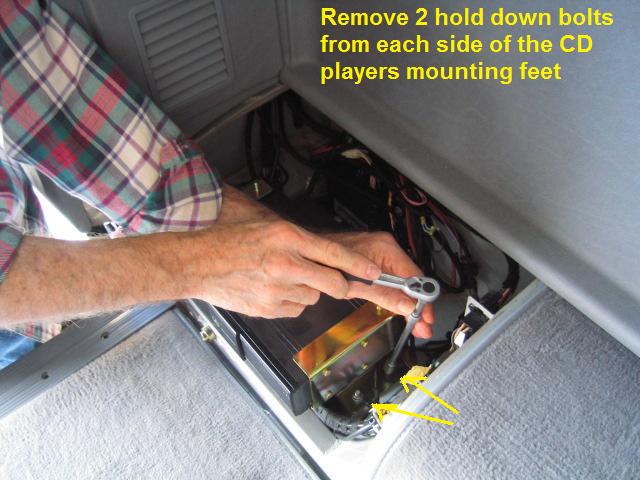

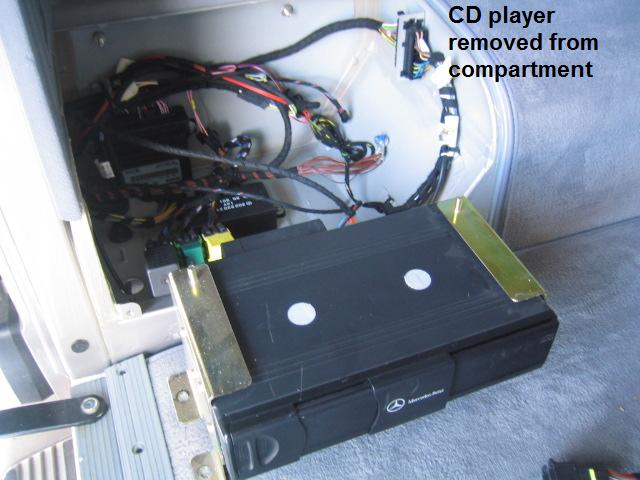

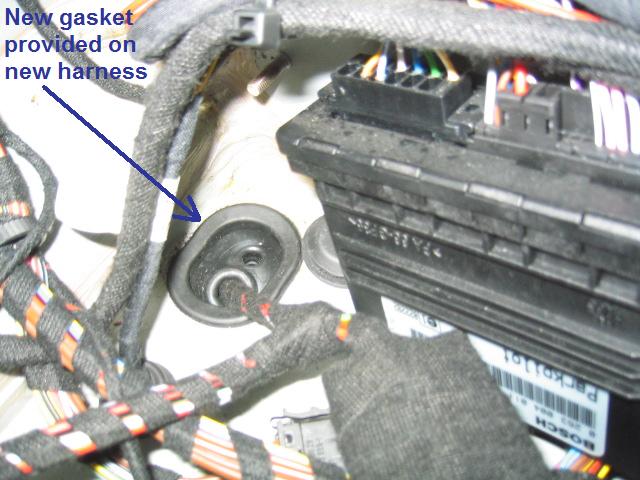

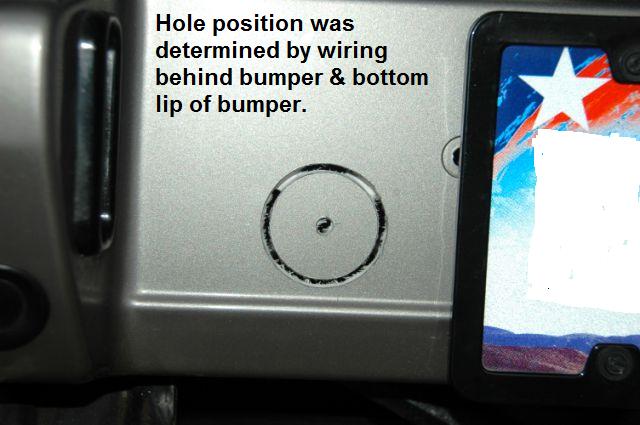

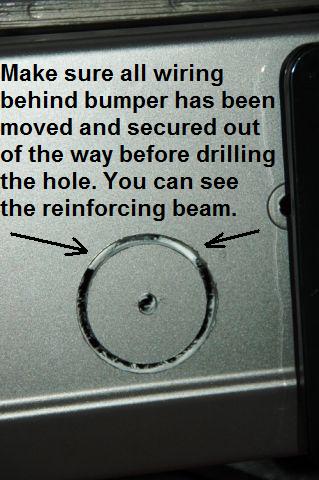

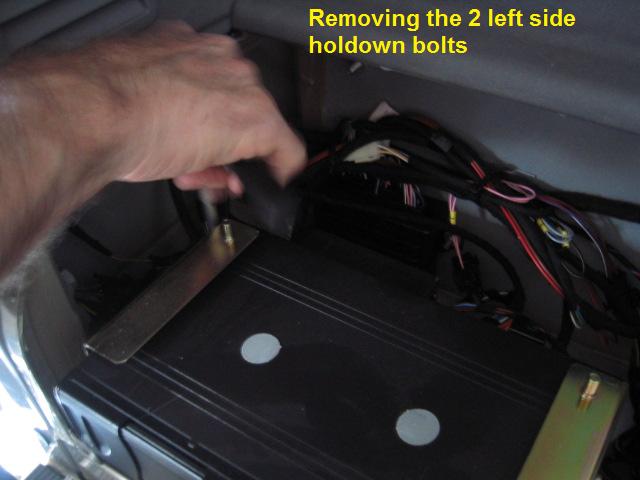

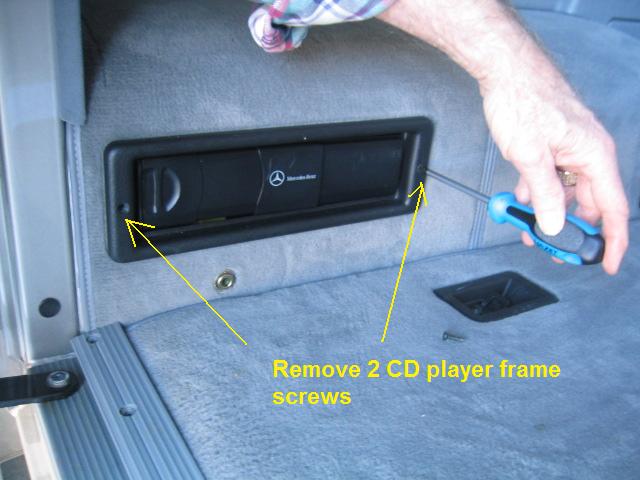

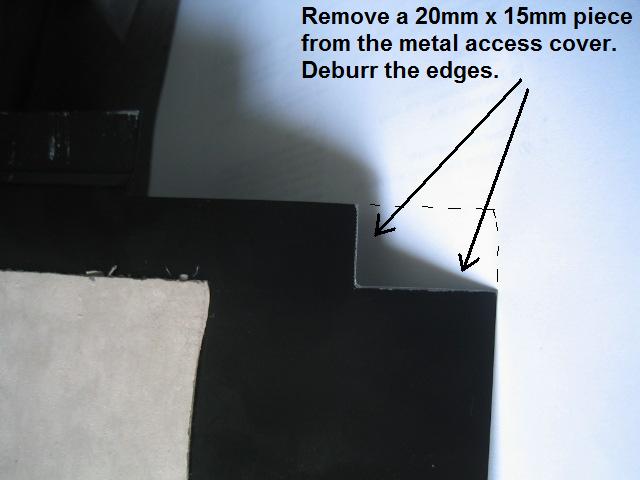

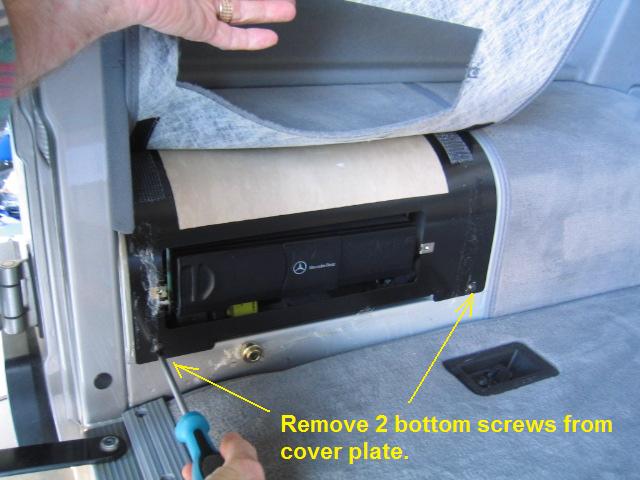

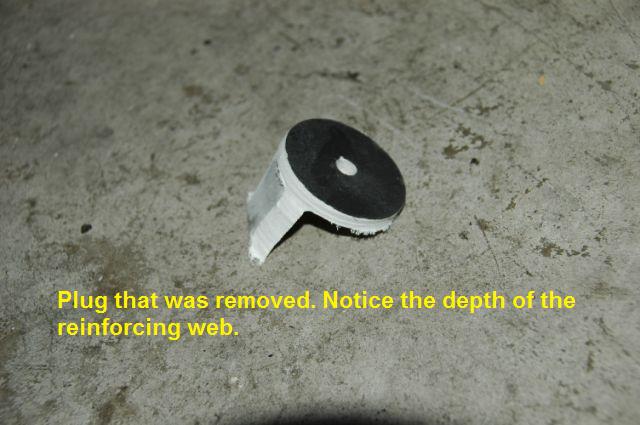

Cut the metal CD cover plate for harness exit. 20mm x15mm.

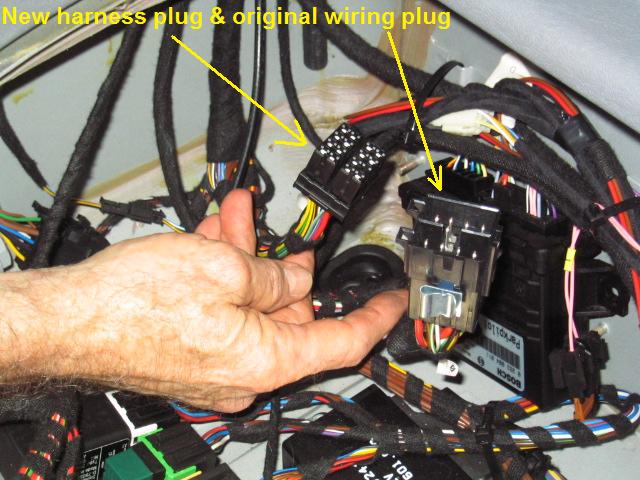

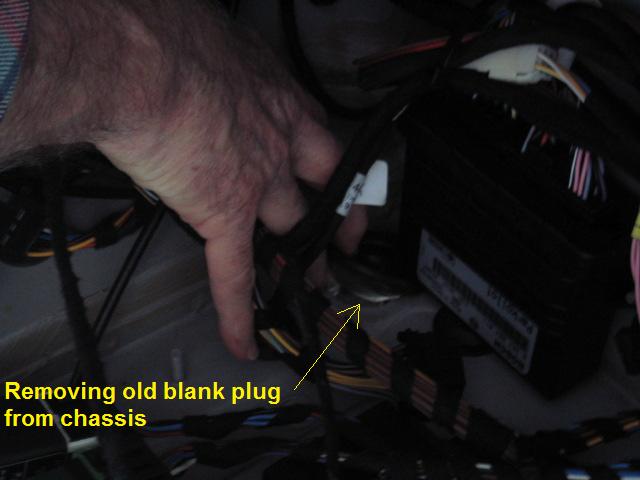

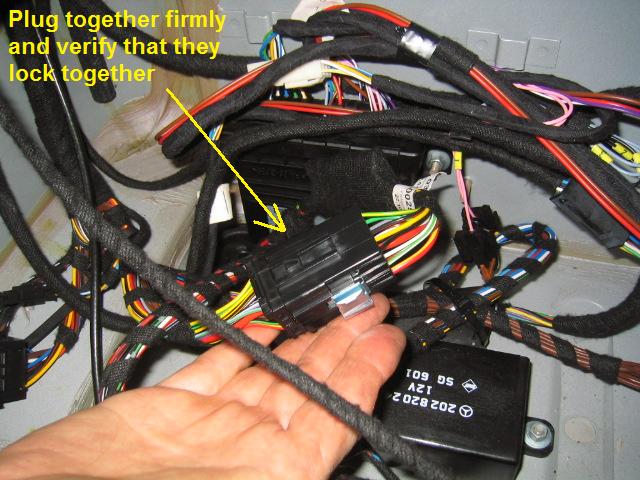

Install plug (2 wires) #4 into #15. (See the install sheets)

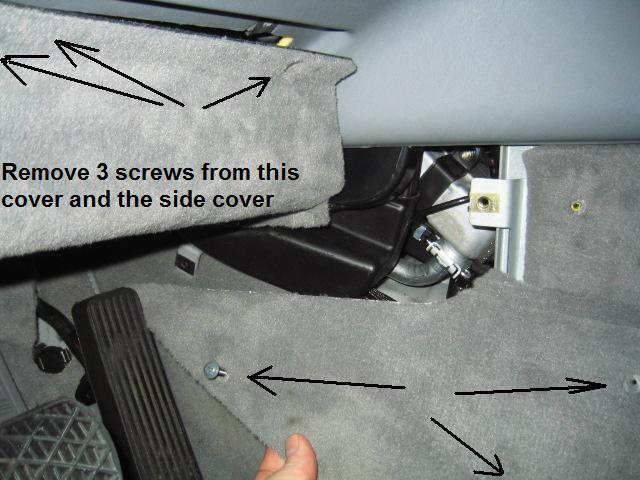

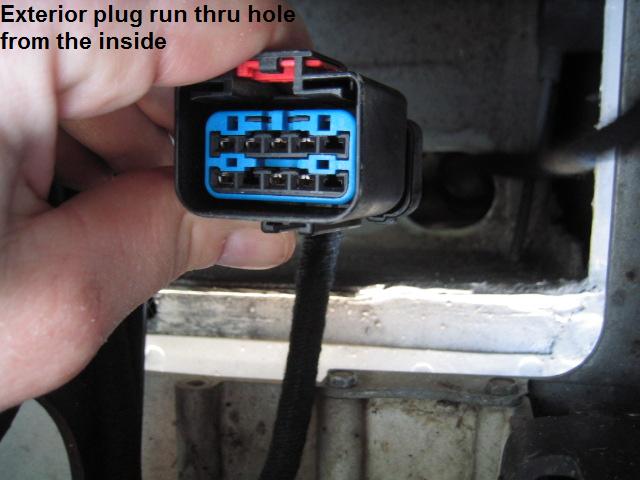

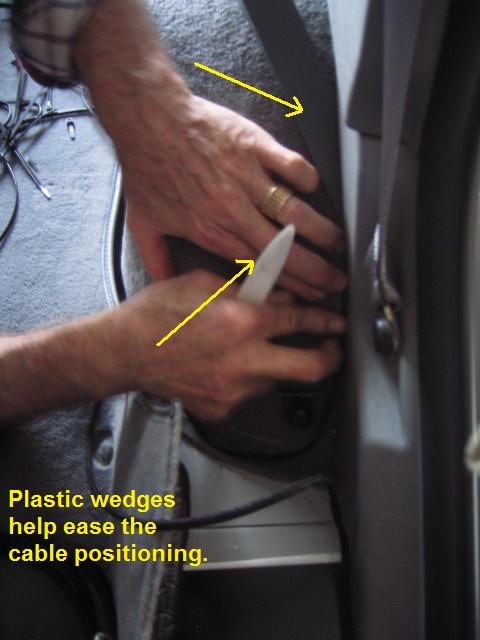

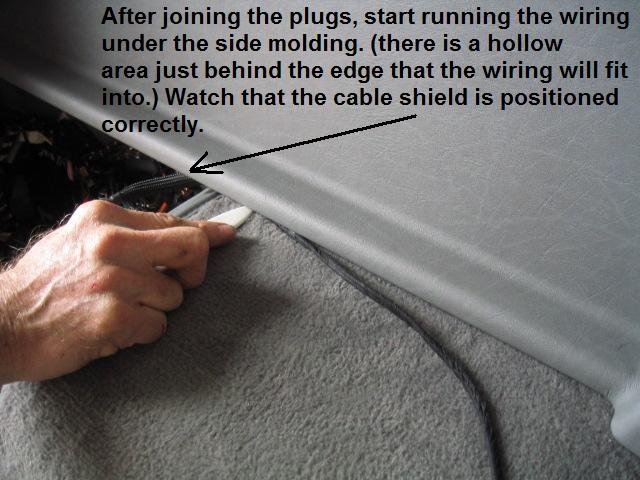

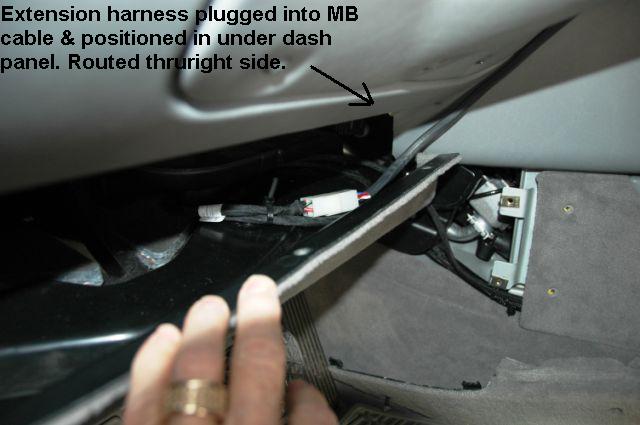

Route wiring harness out & to the front under the left trim panel after folding the left rear seat to its upright position. Be careful not to damage the wiring harness.
Pay attention to harness cable shield position.



(IMG_7050a.jpg)



(IMG_7050aa.jpg)



(IMG_7052a.jpg)



(IMG_7053a.jpg)



(IMG_7054a.jpg)



(IMG_7055a.jpg)



(IMG_7056a.jpg)



(IMG_7058a.jpg)



(IMG_7060a.jpg)



(IMG_7061a.jpg)



Attachments
----------------
Attachments IMG_7050a.jpg (30KB - 218 downloads)
Attachments IMG_7050aa.jpg (25KB - 204 downloads)
Attachments IMG_7052a.jpg (59KB - 219 downloads)
Attachments IMG_7053a.jpg (41KB - 194 downloads)
Attachments IMG_7054a.jpg (44KB - 213 downloads)
Attachments IMG_7055a.jpg (40KB - 212 downloads)
Attachments IMG_7056a.jpg (42KB - 200 downloads)
Attachments IMG_7058a.jpg (38KB - 210 downloads)
Attachments IMG_7060a.jpg (50KB - 205 downloads)
Attachments IMG_7061a.jpg (50KB - 215 downloads)
#169350 - in reply to #169346
Top of the page Bottom of the page
Author
Posted 4/7/2010 12:04 AM
Vehicross99
Veteran




Date registered: May 2009
Location: So Texas/SW Colorado
Vehicle(s): 2006 G500
Posts: 161
100
RE: Photo DIY Hitch and wiring install

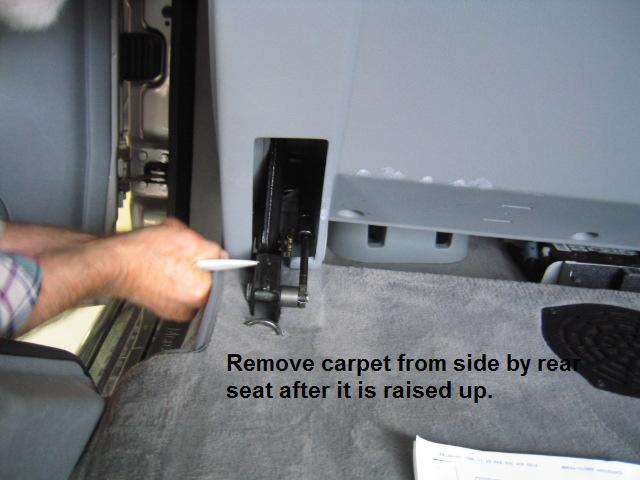

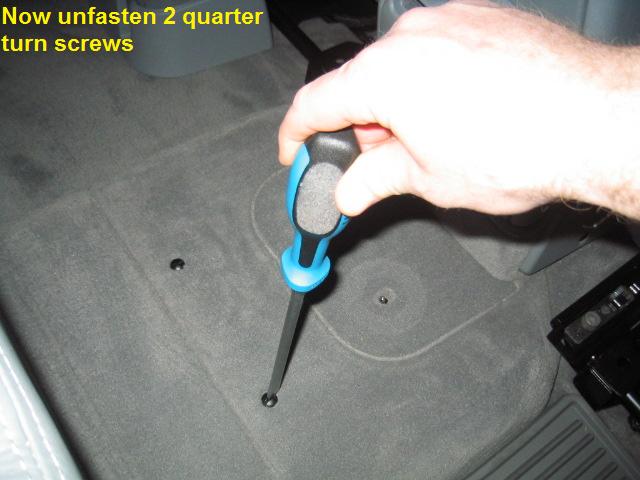

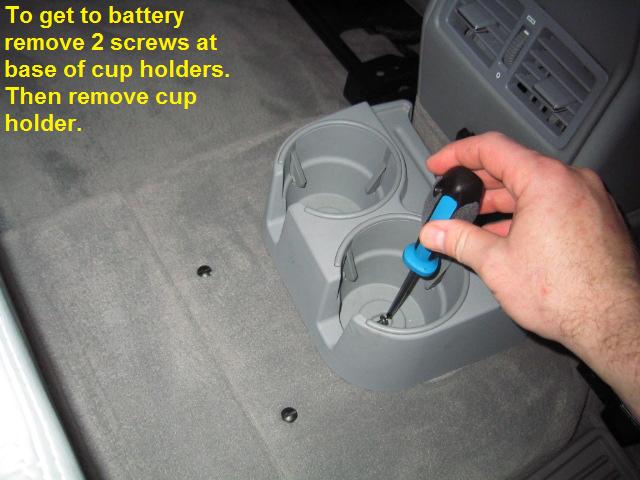

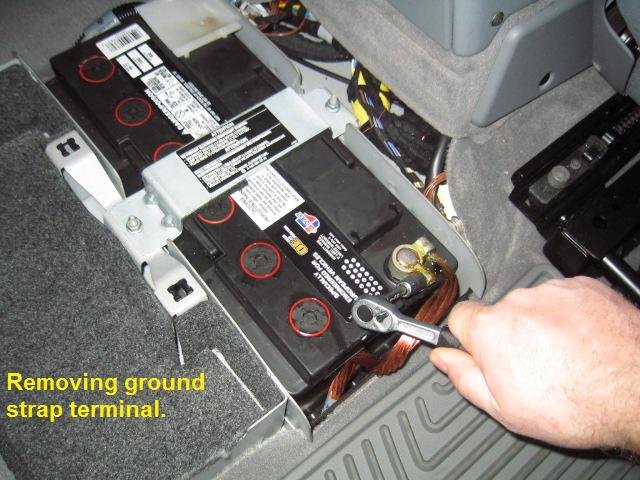

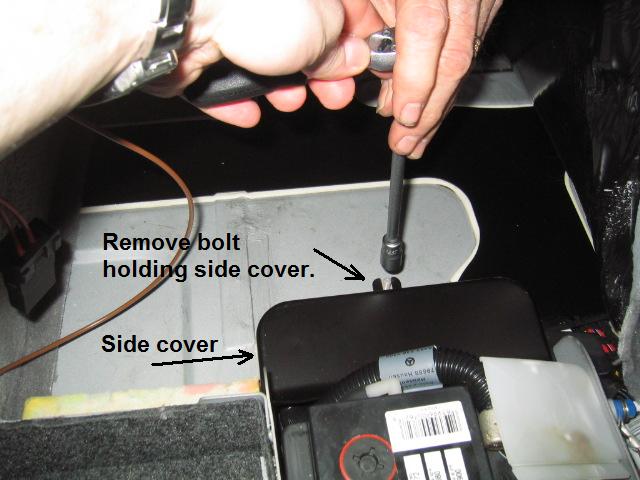

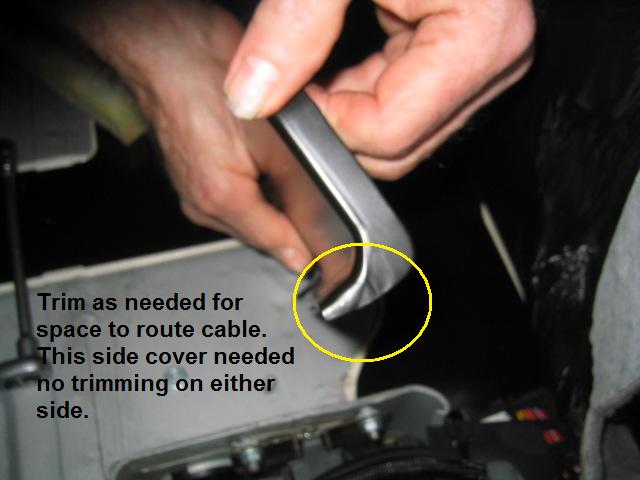

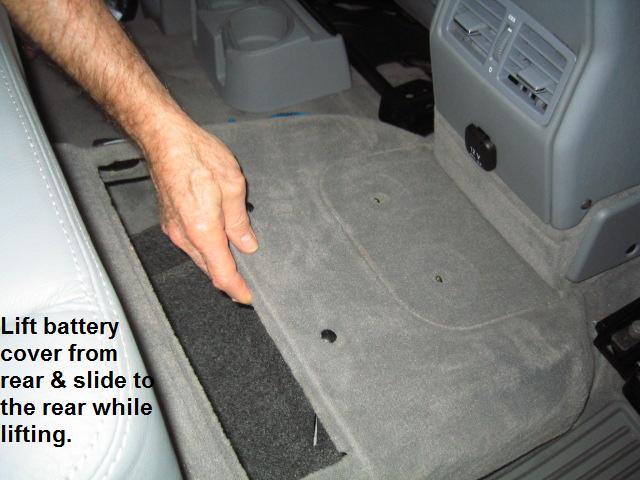

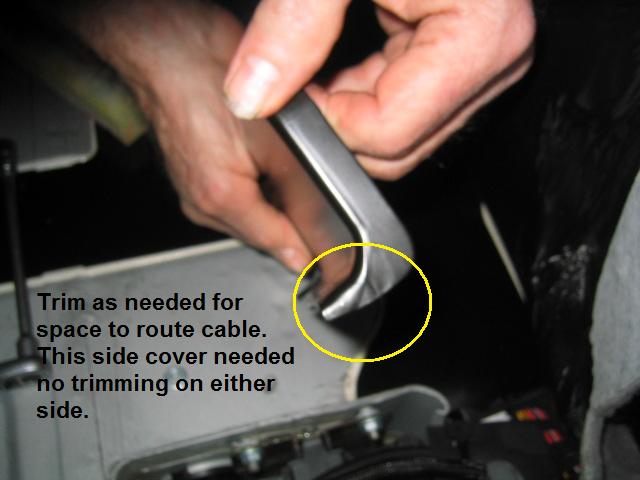

The instructions call for you to trim the sides of the left battery cover but I found there was more than enough clearance on mine.

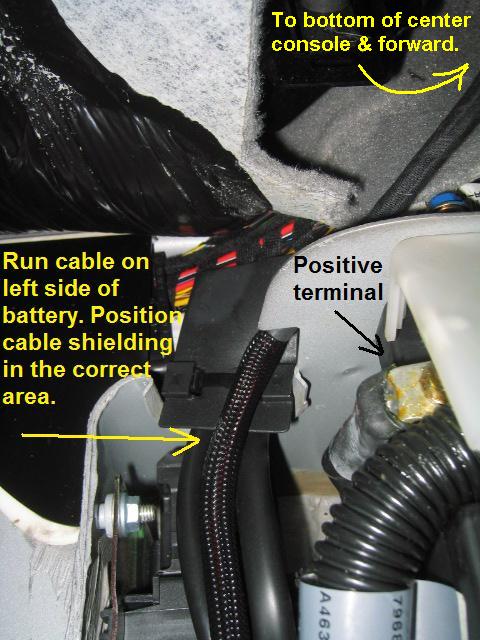

Pay attention to harness cable shield position.

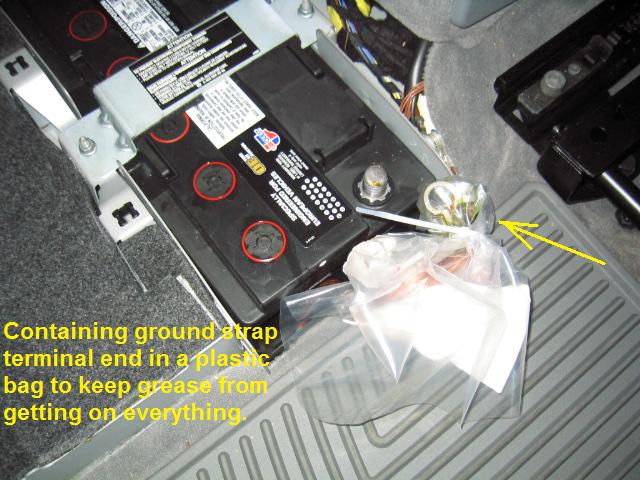

Attach neg connector to neg terminal pinch bolt.

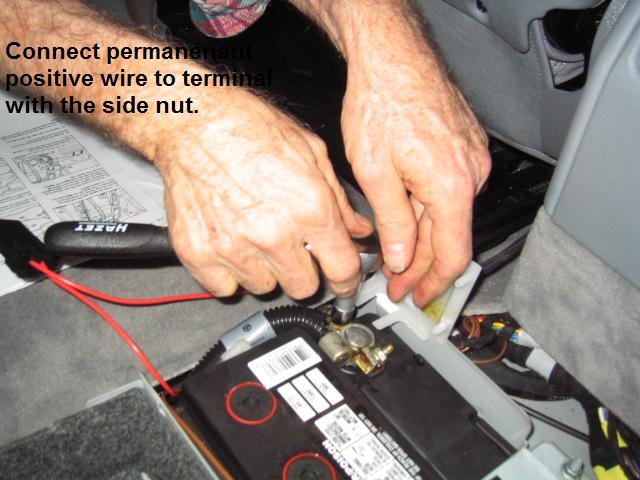

Attach pos terminal wire to nut on pinch bolt assy.

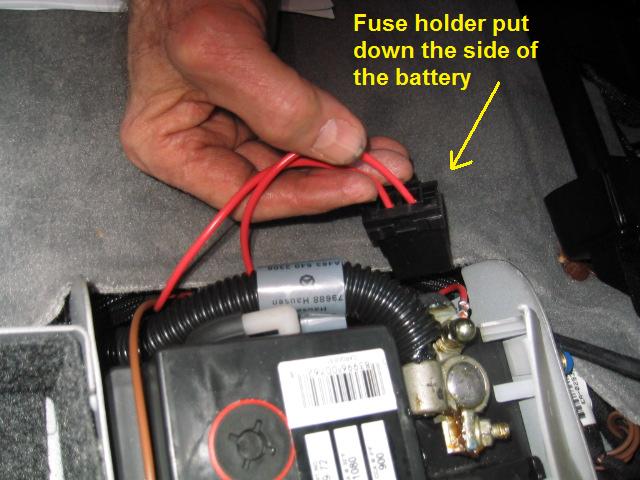

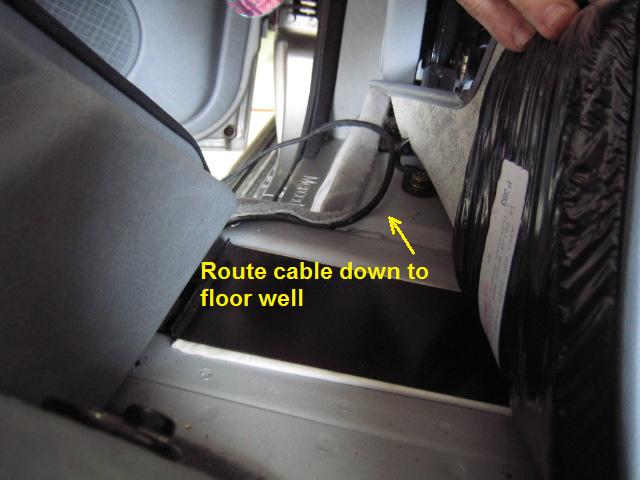

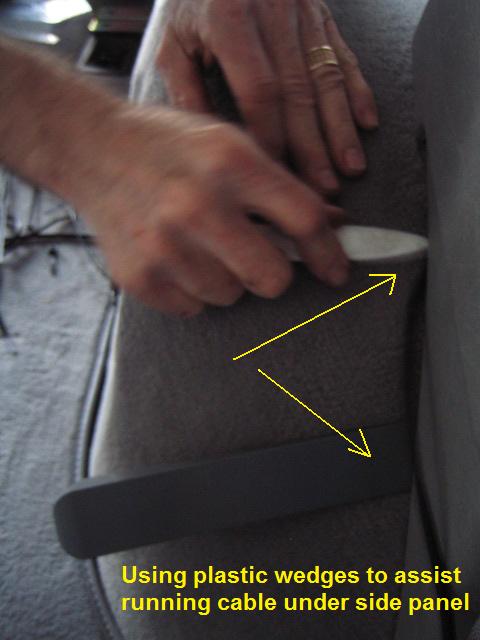

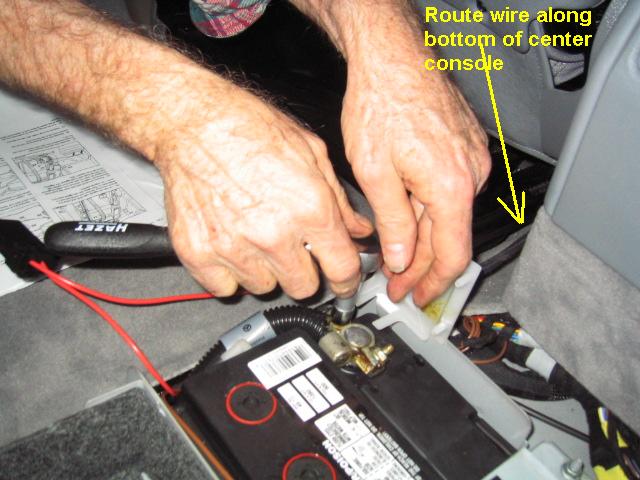

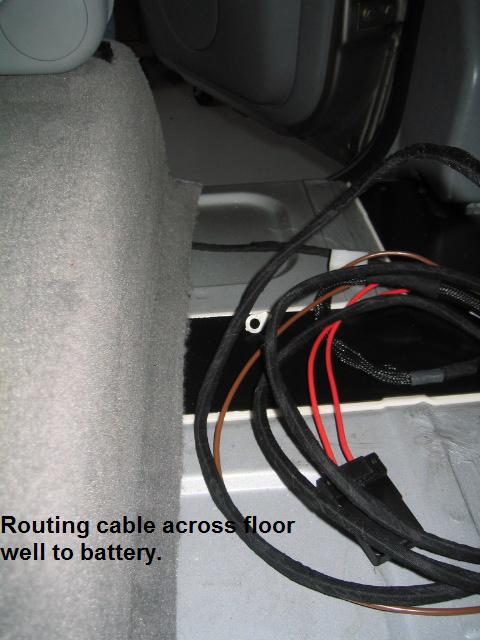

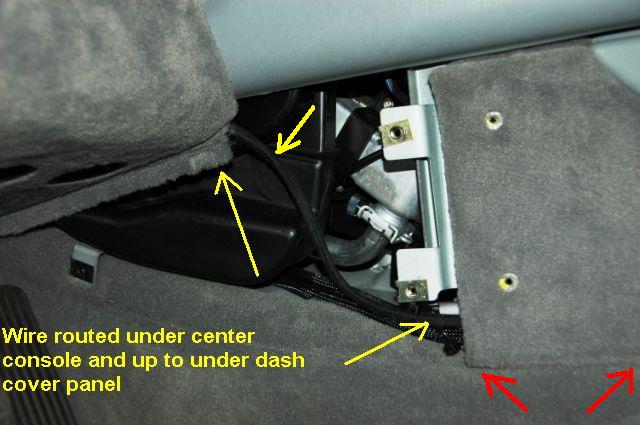

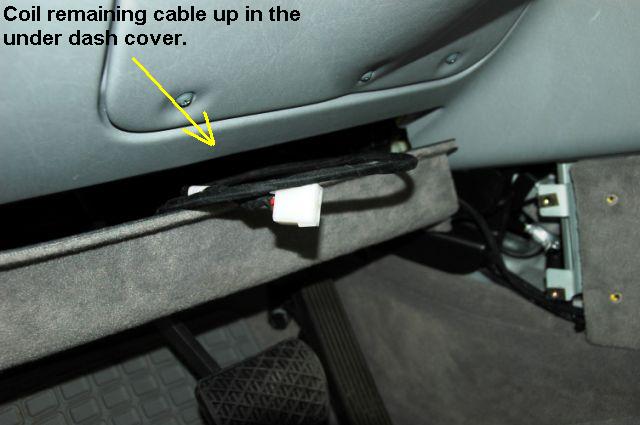

Run wiring under left side of center console to petal cluster. (Hard to do because of limited access)




(IMG_7063a.jpg)



(IMG_7064a.jpg)



(IMG_7065a.jpg)



(IMG_7065b.JPG)



(IMG_7066a.jpg)



(IMG_7067a.jpg)



(IMG_7068.JPG)



(IMG_7069.JPG)



Attachments
----------------
Attachments IMG_7063a.jpg (66KB - 190 downloads)
Attachments IMG_7064a.jpg (39KB - 222 downloads)
Attachments IMG_7065a.jpg (60KB - 207 downloads)
Attachments IMG_7065b.JPG (60KB - 192 downloads)
Attachments IMG_7066a.jpg (57KB - 220 downloads)
Attachments IMG_7067a.jpg (58KB - 244 downloads)
Attachments IMG_7068.JPG (45KB - 212 downloads)
Attachments IMG_7069.JPG (35KB - 219 downloads)
#169351 - in reply to #169346
Top of the page Bottom of the page
Author
Posted 4/7/2010 12:09 AM
Vehicross99
Veteran




Date registered: May 2009
Location: So Texas/SW Colorado
Vehicle(s): 2006 G500
Posts: 161
100
RE: Photo DIY Hitch and wiring install

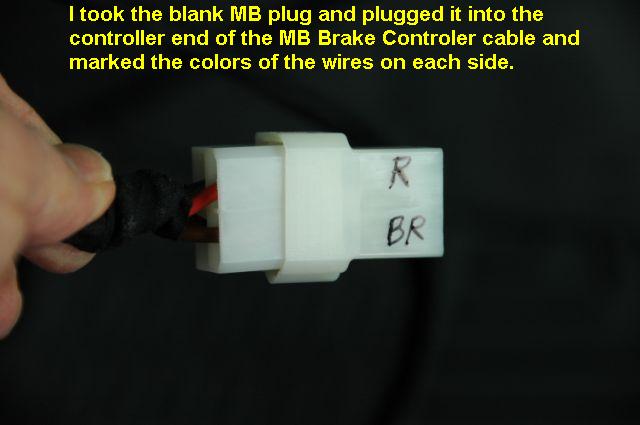

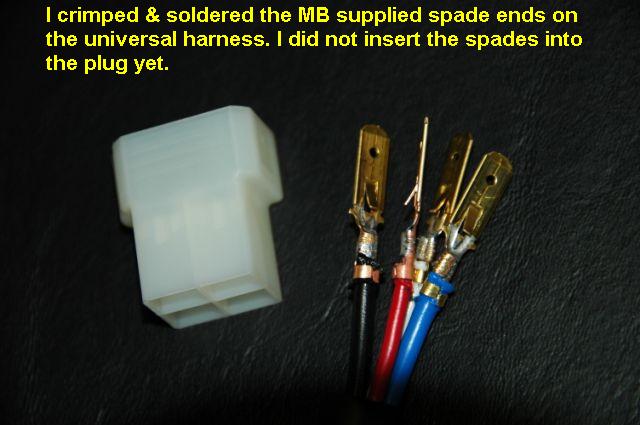

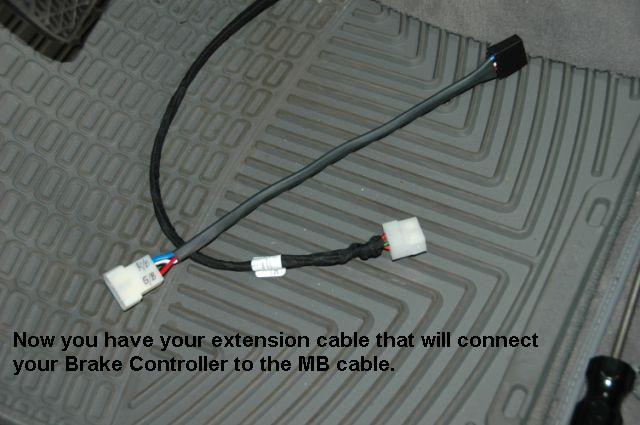

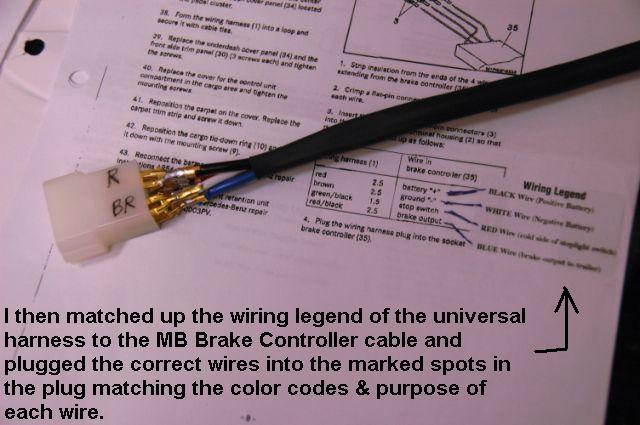

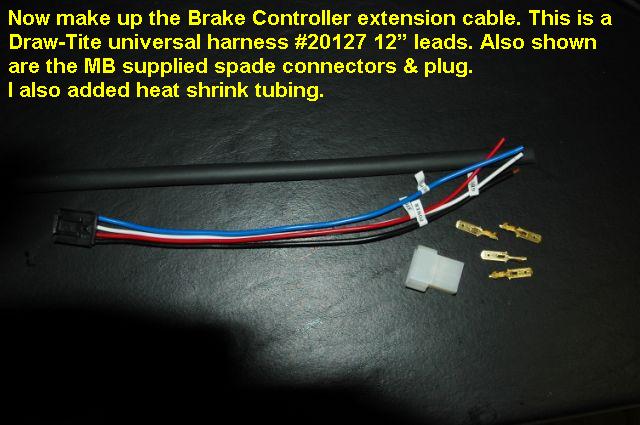

Now you will need to make the Brake Controller universal harness and install it to the MB harness being careful to match up the correct wires. . I used a Draw-Tite harness part #20127



(IMG_7070.JPG)



(IMG_7071.JPG)



(IMG_7072.JPG)



(IMG_7073.JPG)



(IMG_7074.JPG)



(IMG_7075.JPG)



(IMG_7076.JPG)



Attachments
----------------
Attachments IMG_7070.JPG (50KB - 233 downloads)
Attachments IMG_7071.JPG (48KB - 207 downloads)
Attachments IMG_7072.JPG (40KB - 201 downloads)
Attachments IMG_7073.JPG (28KB - 222 downloads)
Attachments IMG_7074.JPG (21KB - 221 downloads)
Attachments IMG_7075.JPG (46KB - 229 downloads)
Attachments IMG_7076.JPG (41KB - 223 downloads)
#169352 - in reply to #169346
Top of the page Bottom of the page
Author
Posted 4/7/2010 12:14 AM
Vehicross99
Veteran




Date registered: May 2009
Location: So Texas/SW Colorado
Vehicle(s): 2006 G500
Posts: 161
100
RE: Photo DIY Hitch and wiring install

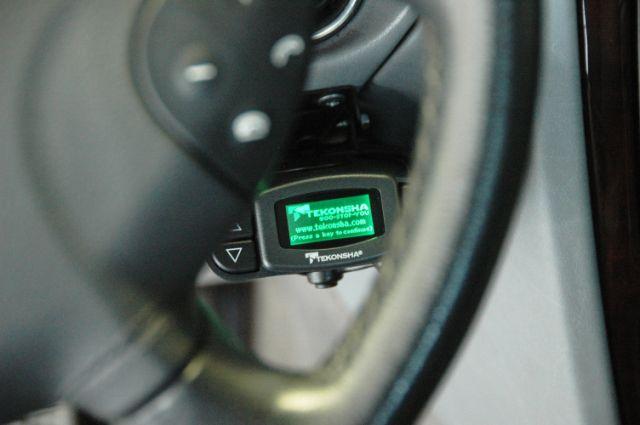

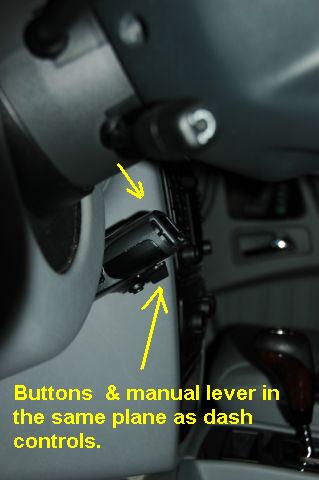

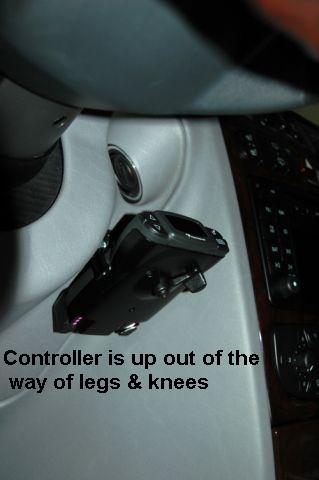

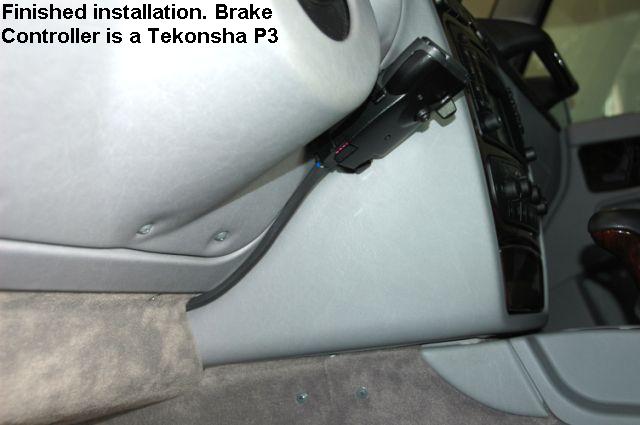

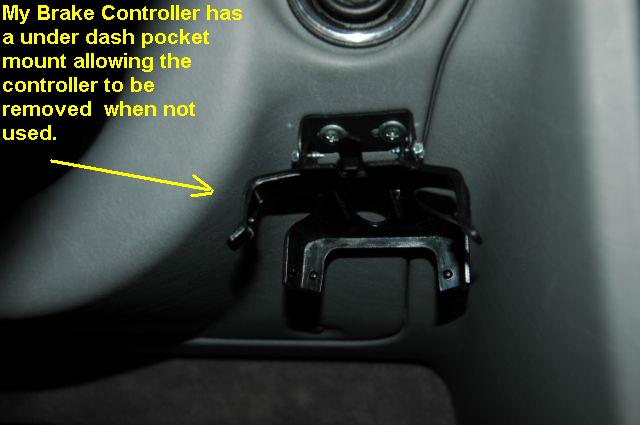

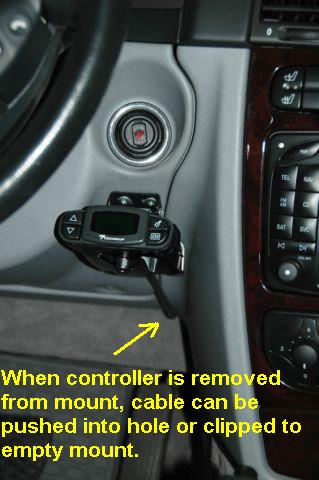

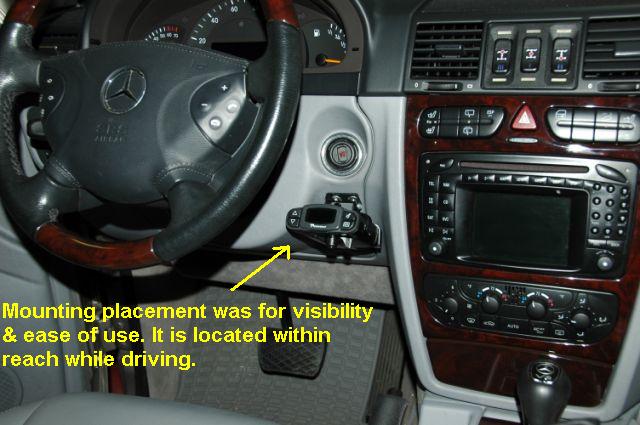

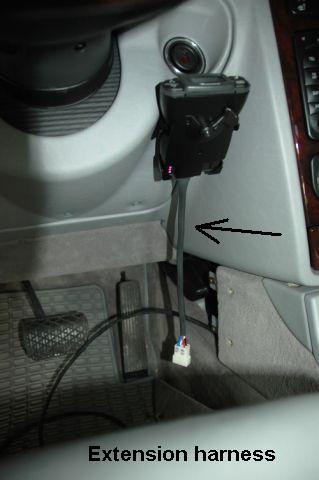

Decide on mounting for Brake Controller & run wiring accordingly. The following was my choice.



(IMG_7077.JPG)



(IMG_7078.JPG)



(IMG_7079.JPG)



(IMG_7080.JPG)



(IMG_7081.JPG)



(IMG_7082.JPG)



(IMG_7083.JPG)



(IMG_7084.JPG)



(IMG_7085.JPG)



Attachments
----------------
Attachments IMG_7077.JPG (31KB - 211 downloads)
Attachments IMG_7078.JPG (52KB - 222 downloads)
Attachments IMG_7079.JPG (18KB - 209 downloads)
Attachments IMG_7080.JPG (17KB - 215 downloads)
Attachments IMG_7081.JPG (20KB - 216 downloads)
Attachments IMG_7082.JPG (36KB - 213 downloads)
Attachments IMG_7083.JPG (32KB - 232 downloads)
Attachments IMG_7084.JPG (26KB - 205 downloads)
Attachments IMG_7085.JPG (30KB - 215 downloads)
#169353 - in reply to #169346
Top of the page Bottom of the page
Author
Posted 4/7/2010 12:20 AM
Vehicross99
Veteran




Date registered: May 2009
Location: So Texas/SW Colorado
Vehicle(s): 2006 G500
Posts: 161
100
RE: Photo DIY Hitch and wiring install

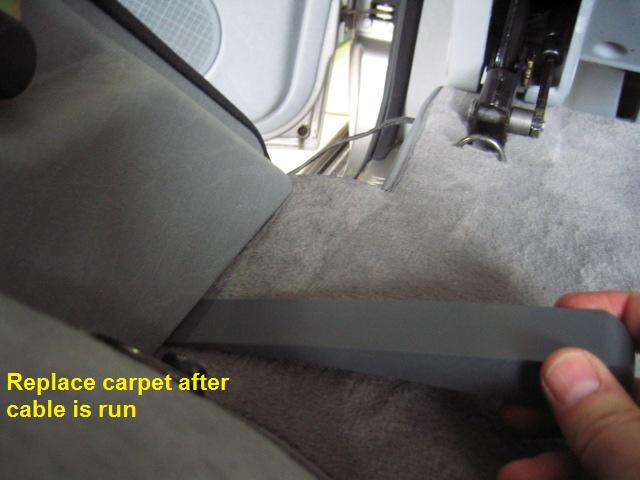

Reassemble everything in the reverse order. (Instruction sheets have that description.)
Connect neg battery terminal

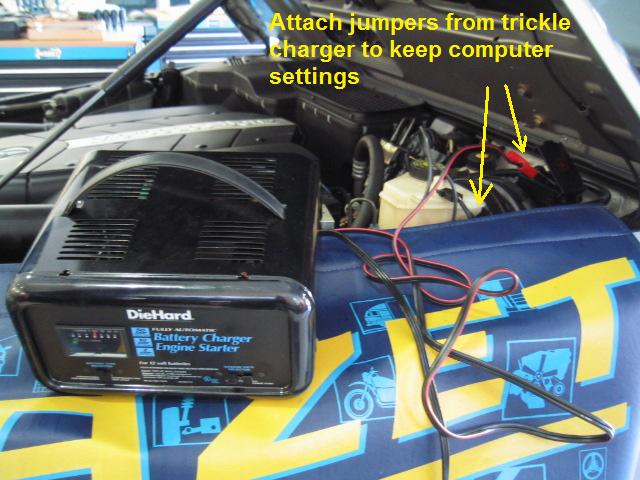

Disconnect Trickle charger.

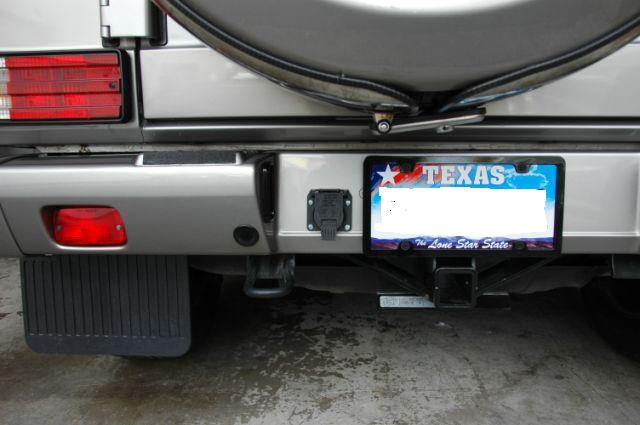

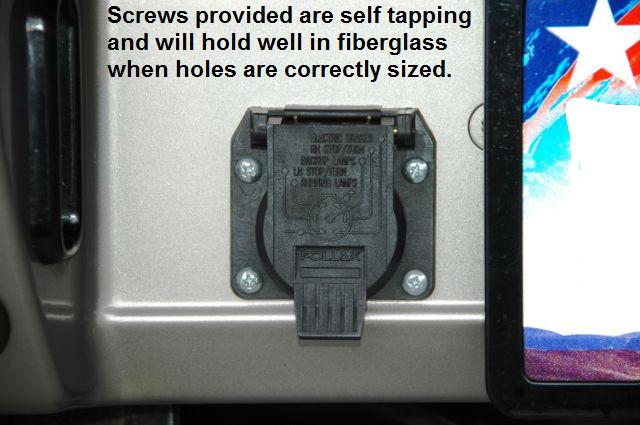

I did not want to have the electrical connector plate hanging down below the hitch (standard mounting) so I followed Karl’s lead in installing the connector on the bumper.



(MBHI 026a.jpg)



(MBHI 027a.jpg)



(MBHI 028a.jpg)



(MBHI 033a.jpg)



(MBHI 034a.jpg)



(MBHI 040a.jpg)



(MBHI 042a.jpg)



(MBHI 041a.jpg)



(IMG_7049b.JPG)



Attachments
----------------
Attachments MBHI 026a.jpg (39KB - 223 downloads)
Attachments MBHI 027a.jpg (33KB - 185 downloads)
Attachments MBHI 028a.jpg (44KB - 237 downloads)
Attachments MBHI 033a.jpg (32KB - 224 downloads)
Attachments MBHI 034a.jpg (33KB - 228 downloads)
Attachments MBHI 040a.jpg (21KB - 205 downloads)
Attachments MBHI 042a.jpg (44KB - 213 downloads)
Attachments MBHI 041a.jpg (36KB - 220 downloads)
Attachments IMG_7049b.JPG (33KB - 231 downloads)
#169354 - in reply to #169346
Top of the page Bottom of the page
Author
Posted 4/7/2010 12:26 AM
Vehicross99
Veteran




Date registered: May 2009
Location: So Texas/SW Colorado
Vehicle(s): 2006 G500
Posts: 161
100
RE: Photo DIY Hitch and wiring install

That's it!
#169355 - in reply to #169346
Top of the page Bottom of the page
Author
Posted 4/7/2010 1:34 AM
koly
Elite Veteran




Date registered: Jul 2006
Location: Scottsdale, AZ USA
Vehicle(s): 2000 G500
Posts: 823
500
RE: Photo DIY Hitch and wiring install

That's quite the DIY - great write-up!
#169360 - in reply to #169355
Top of the page Bottom of the page
Author
Posted 4/7/2010 5:49 AM
nadd
Expert




Date registered: Apr 2006
Location: UAE, Dubai
Vehicle(s): G500 2016 LHD, numerous Chevys
Posts: 1285
1000
Re: Photo DIY Hitch and wiring install

Great photos and work - must've taken a few hours.

Only thing I would recommend revising is the location of the brake controller. In a crash, that location is often a prime contact area for knees and/or hands. There's a reason why the key hole is recessed like that - to avoid any possible interaction with knees in a crash. I'd hate to have that metal bracket "interact" with any body part in the event of a rollover.
#169373 - in reply to #169346
Top of the page Bottom of the page
Author
Posted 4/7/2010 6:03 AM
bram_r
Expert




Date registered: Apr 2007
Location: the Netherlands
Vehicle(s): 1984 MB 280GE, 1982 MB 300GD, 1986 Subaru XT 4WD
Posts: 1659
1000
Re: Photo DIY Hitch and wiring install

Is this hitch for 463 models or will it also fit the 460/461 range?

Bram
#169374 - in reply to #169346
Top of the page Bottom of the page
Author
Posted 4/7/2010 9:35 AM
Vehicross99
Veteran




Date registered: May 2009
Location: So Texas/SW Colorado
Vehicle(s): 2006 G500
Posts: 161
100
Re: Photo DIY Hitch and wiring install

nadd,
Brake controller positioning is always a problem since it is an add-on.
I have used the lever in mountain driving, while towing, so its position was important to me.
It would be interesting to see other controller installations.

Bram,
I suspect only 463 but one of the experts should be able to answer that.
#169390 - in reply to #169346
Top of the page Bottom of the page
Author
Posted 7/25/2010 3:15 AM
sharkmobil
Member


Date registered: Feb 2010
Location: Nor*Cal
Vehicle(s): 1970 Camaro SS, 1989 Colt GT :12 sec 1/4 mile easy
Posts: 8

Re: Photo DIY Hitch and wiring install

You got to be kidding me.
#175183 - in reply to #169346
Top of the page Bottom of the page
Author
Posted 7/25/2010 7:38 PM
DUTCH
Administrator Doppelgänger




Date registered: Apr 2006
Location: US, GA, Atlanta
Vehicle(s): 2015 Audi Q7 3.0 TDI,2018 Sprinter
Posts: 9965
5000
Re: Photo DIY Hitch and wiring install

sharkmobil - 7/25/2010 3:15 AM

You got to be kidding me.


Oh really? How so?
#175204 - in reply to #175183
Top of the page Bottom of the page
Author
Posted 7/27/2010 10:07 AM
G-AMG
G-Class DIY Host




Date registered: May 2006
Location: South Texas
Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350
1000
Re: Photo DIY Hitch and wiring install

sharkmobil - 7/25/2010 3:15 AM

You got to be kidding me.


Actually, it's not as bad as it looks... there are just alot of steps to it.

The only "difficult" part is the hitch install.

I think if we did it over again, we would have simply removed the bumper, and made a much easier job of it.
#175245 - in reply to #175183
Top of the page Bottom of the page
Author
Posted 7/27/2010 12:18 PM
Vehicross99
Veteran




Date registered: May 2009
Location: So Texas/SW Colorado
Vehicle(s): 2006 G500
Posts: 161
100
Re: Photo DIY Hitch and wiring install

Yes indeed....I was kidding you!

On top of all this, a while back I had changed out all my lights on the trailer to LEDs. Much better visibility than the old 1959 light units.

BUT....If you have followed any of the towing threads you know that presents unique conditions also.
When hooked up, the trailer lights do work however the brake controller does not.
It seems that the G is looking for resistance in the trailer light curcuit proving that there is a trailer back there to use the brakes on.
Long story short is the availability of cheap adapters to correct this condition for MB, Volkswagen Touareg, Audi Q7, and Porsche Cayenne.
They provide in-line resisters to bypass the factory trailer monitoring system.
I used a Valley Wiring 7-Way to 7-Way Trailer Adapter part #V39010.
They also have 4 & 5 wire adapters for the same purpose.

#175250 - in reply to #175183
Top of the page Bottom of the page
« View previous thread :: View next thread »
Page 1 of 1 1
Forum Jump :
All times are EST.  The time is now 9:36:01 PM.

Execution: 0.390 seconds, 104 cached, 27 executed.
