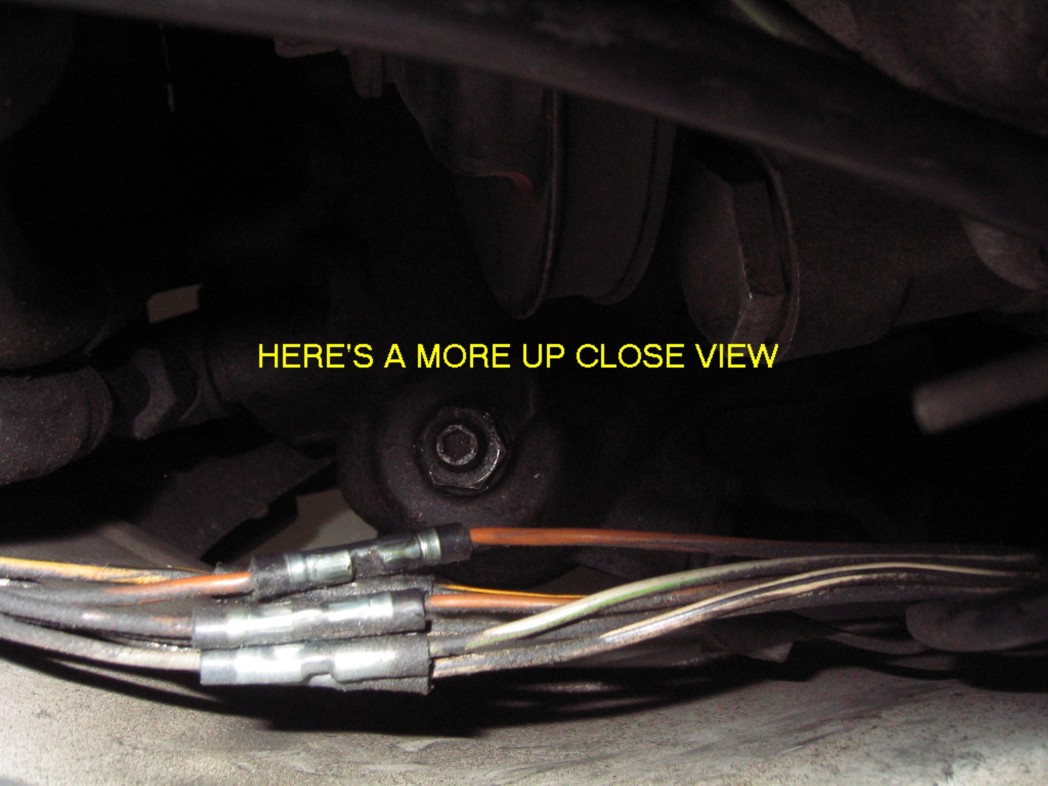

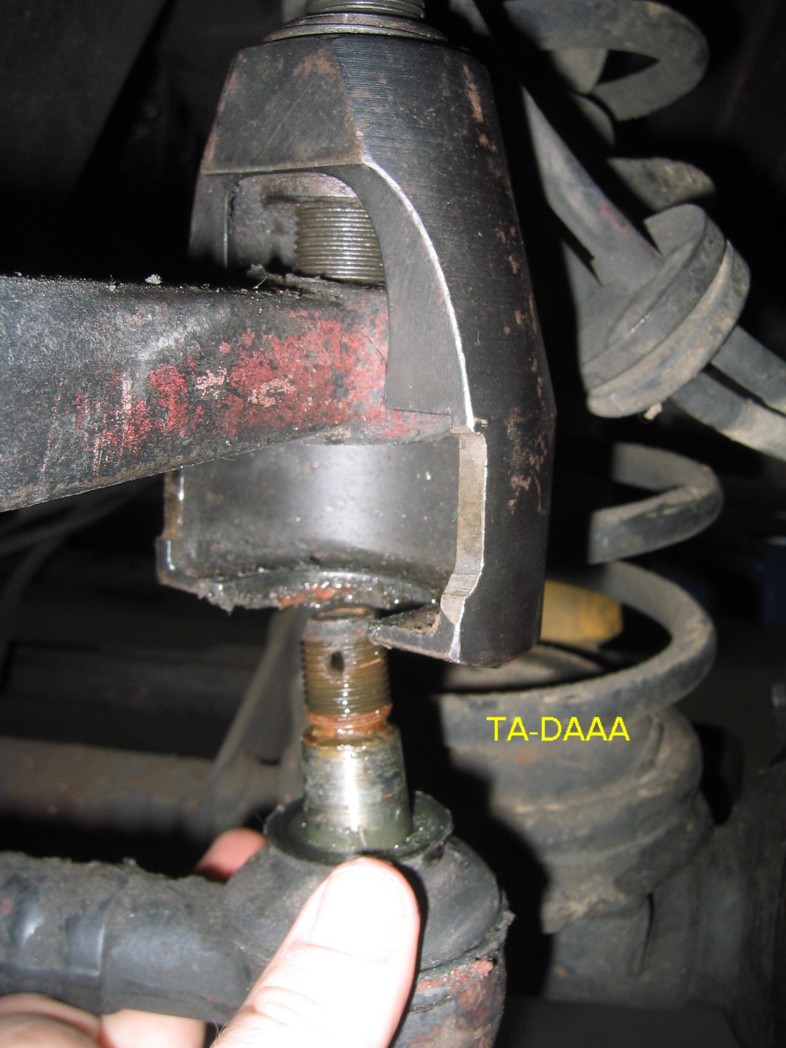

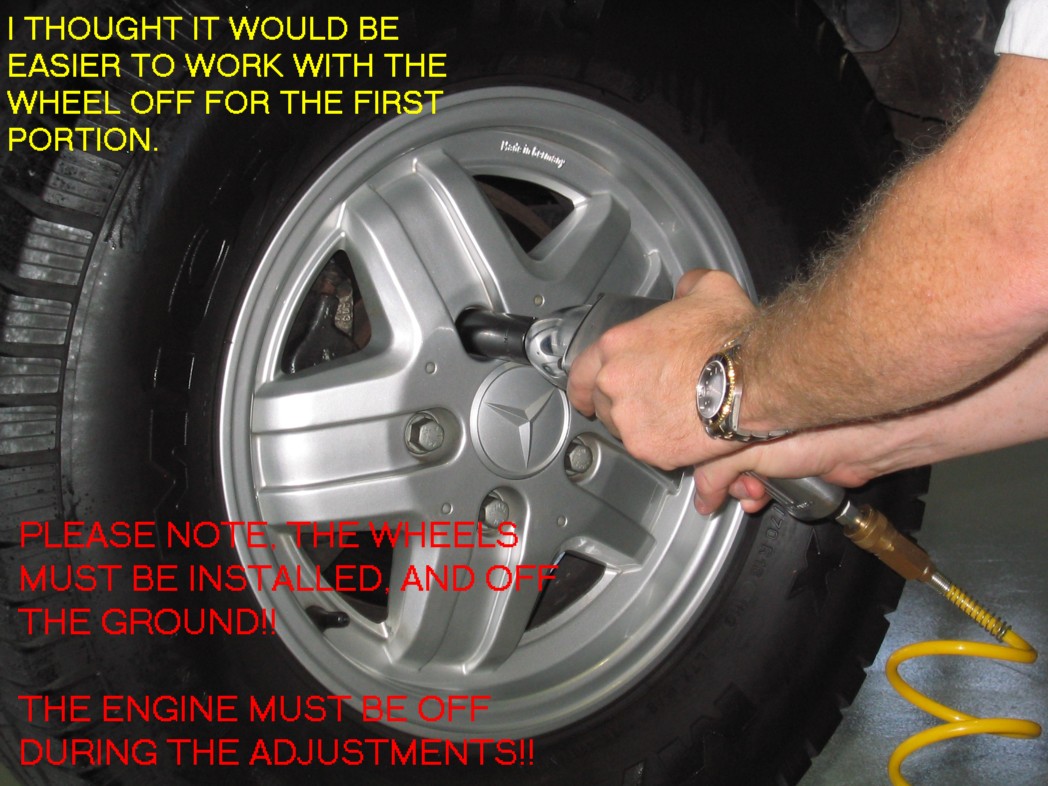

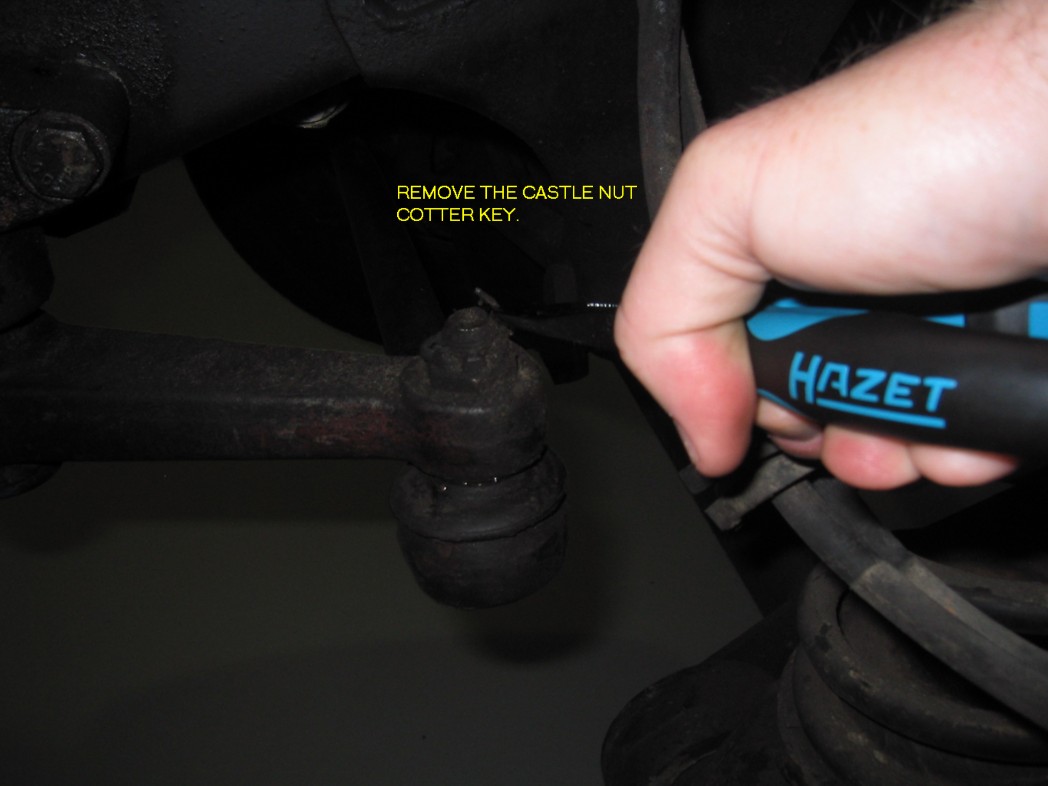

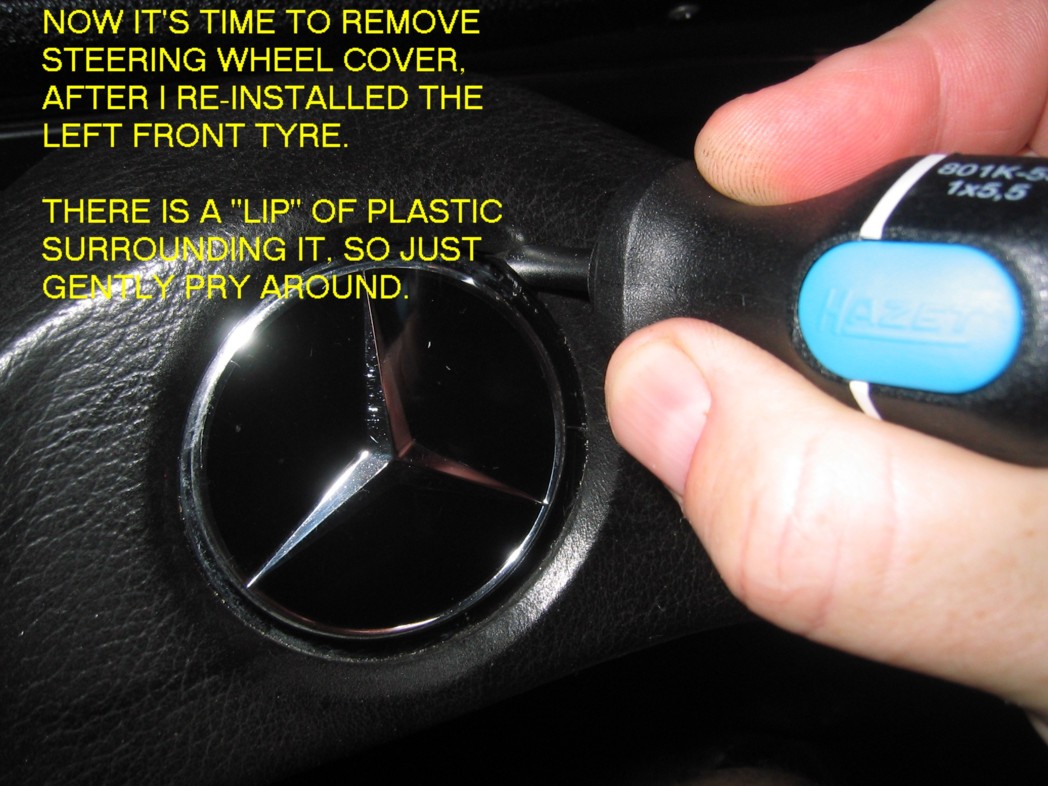

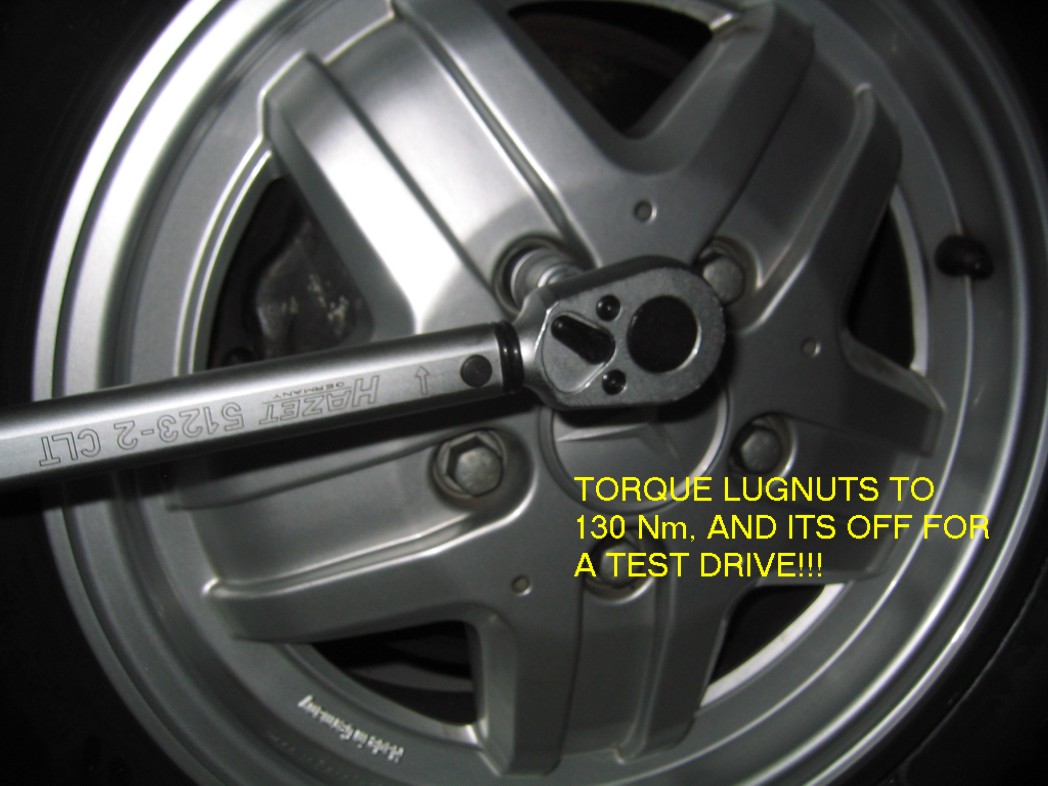

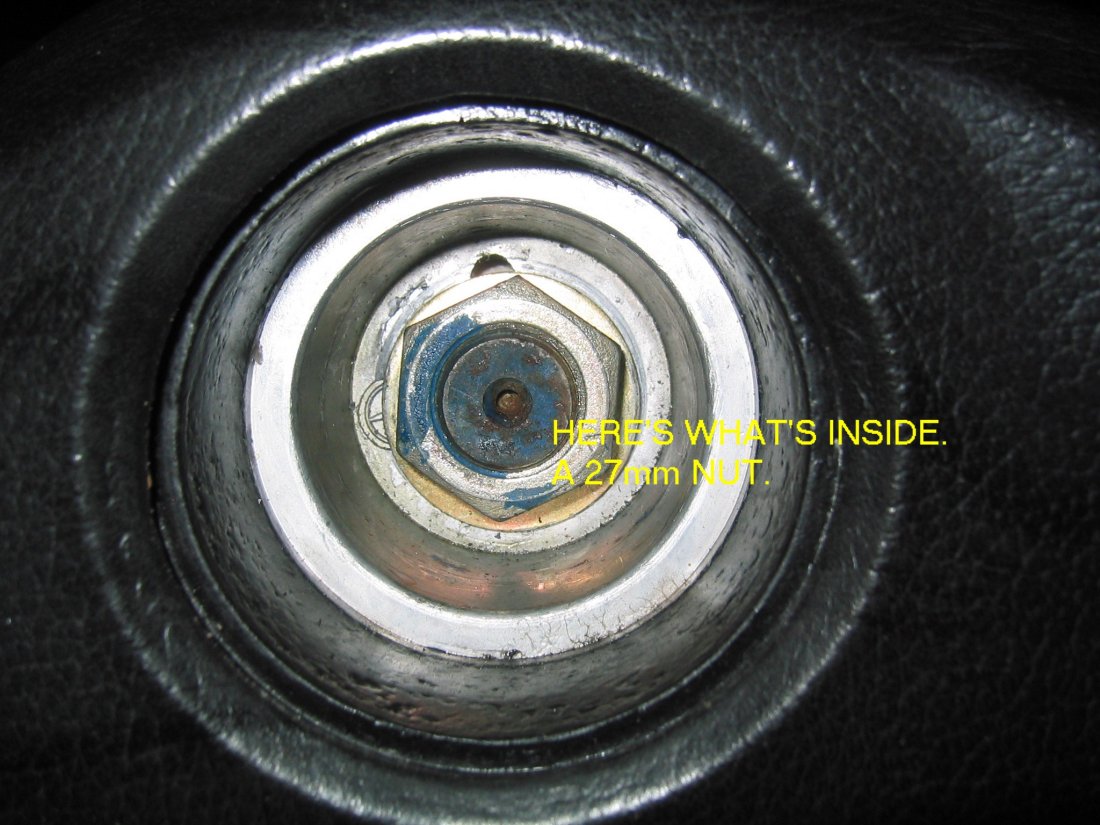

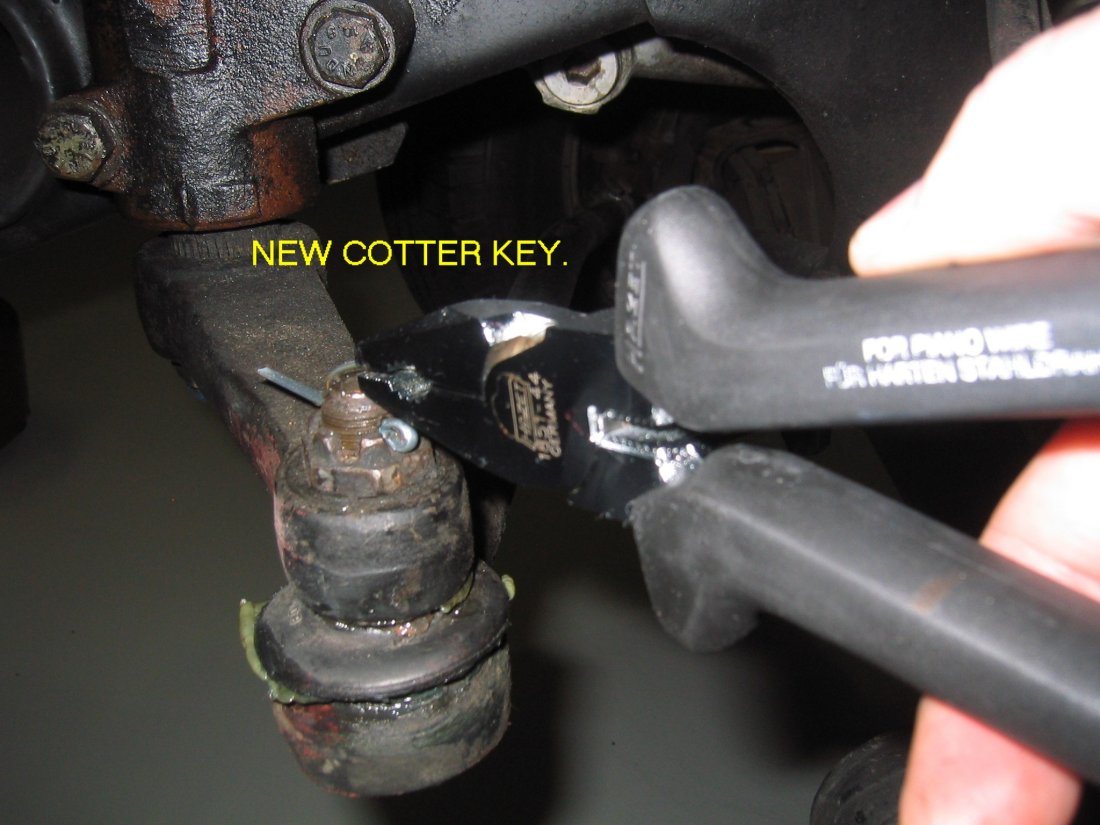

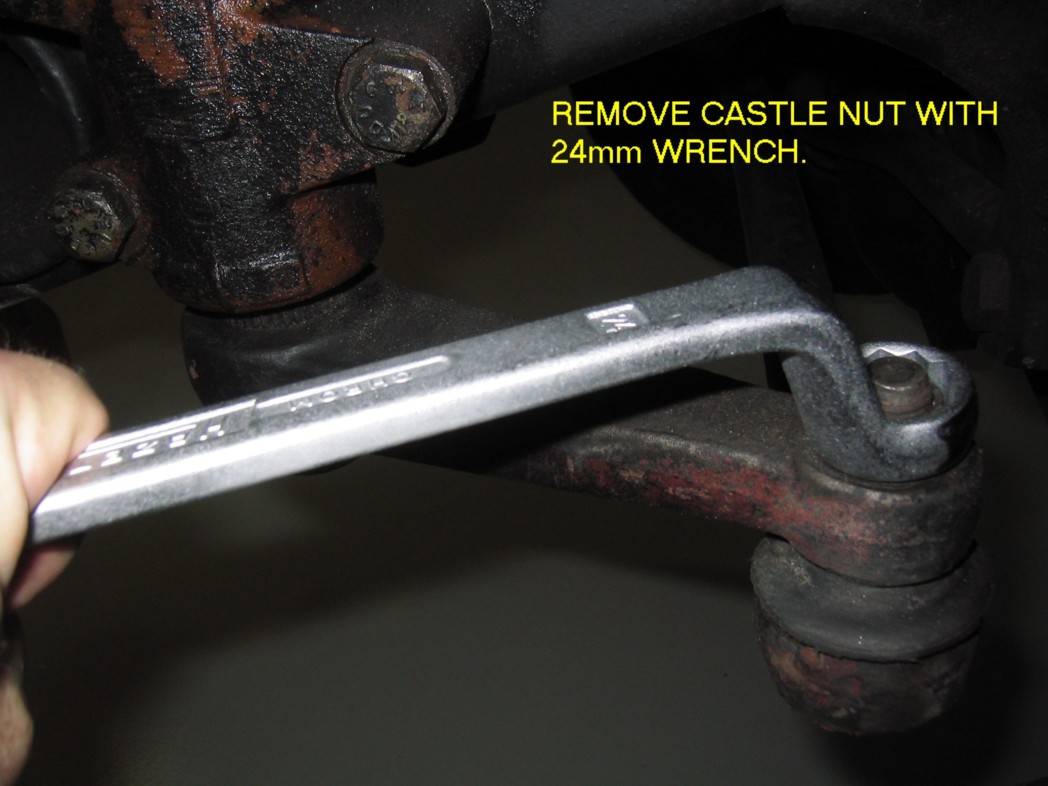

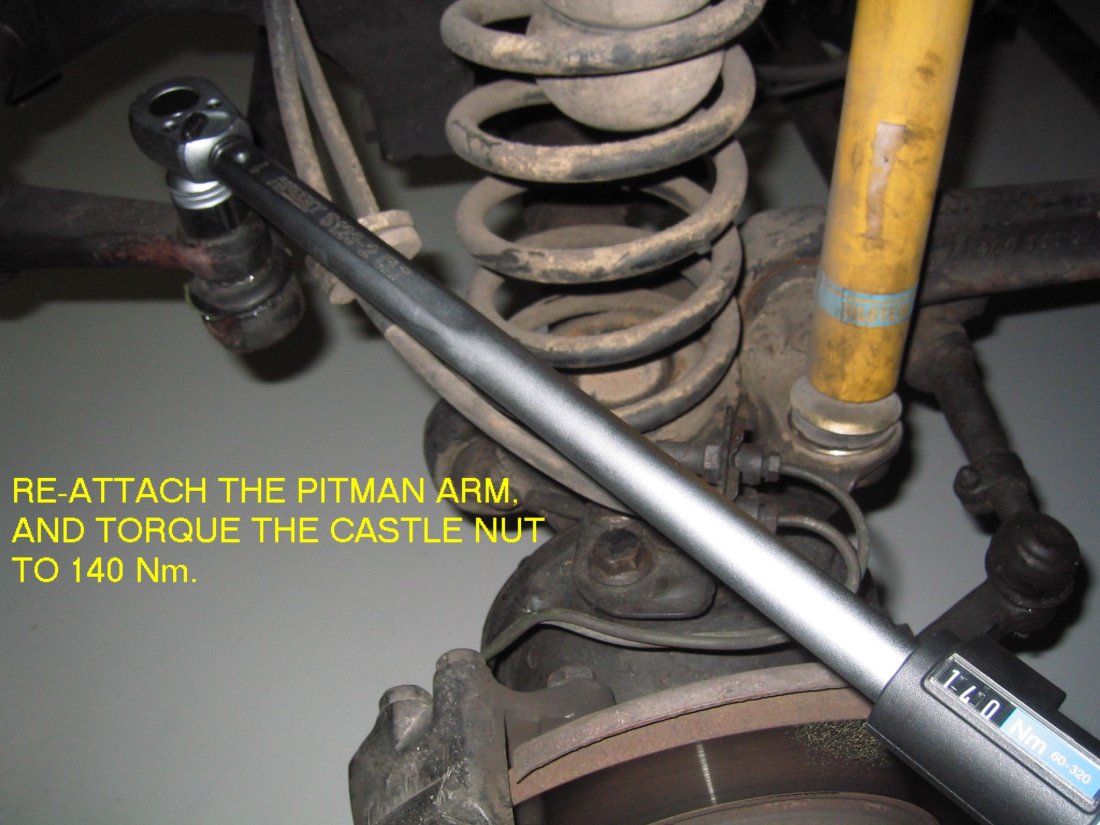

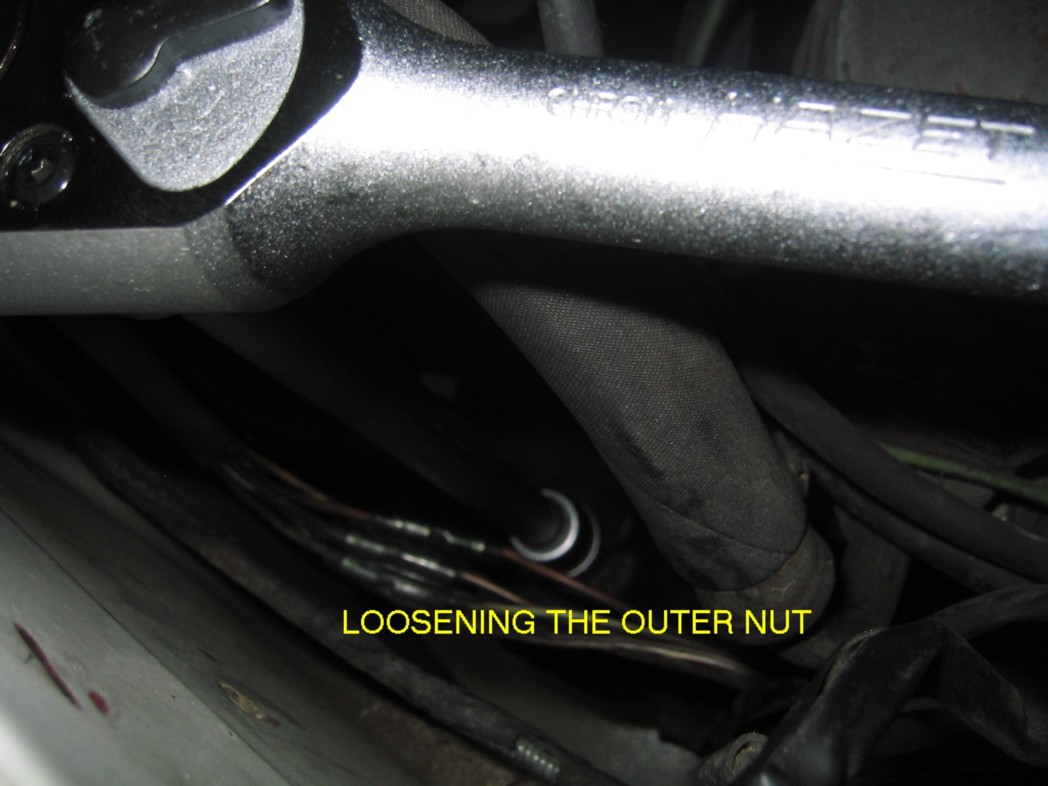

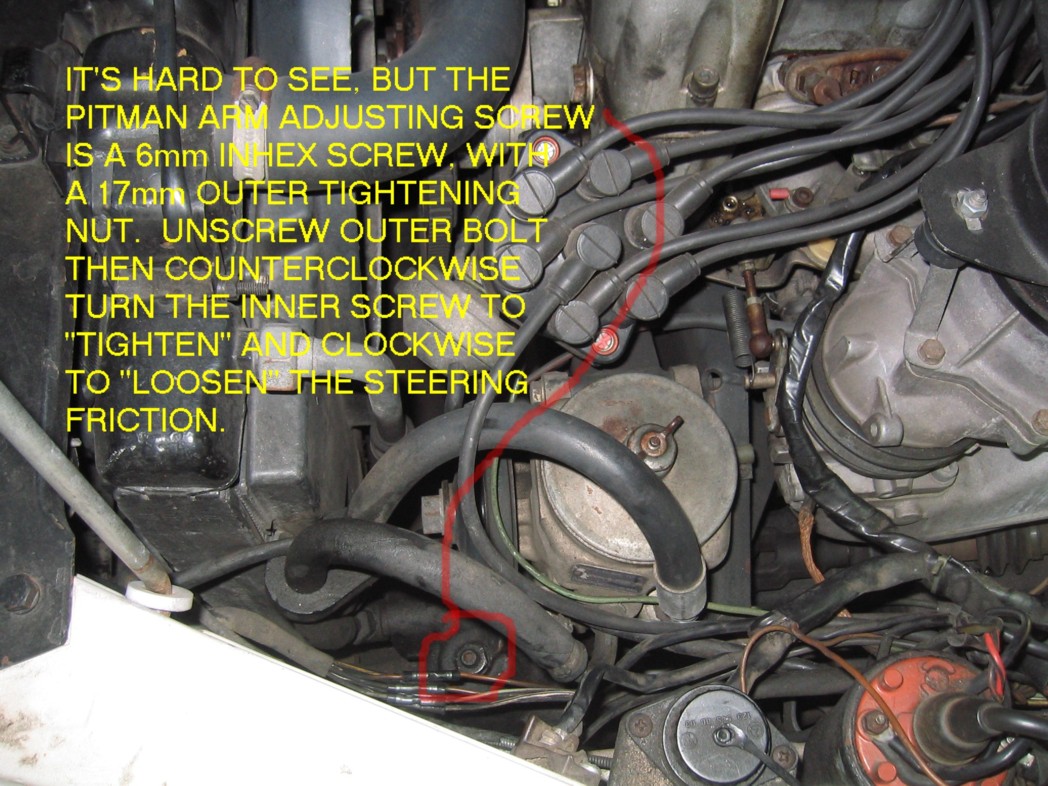

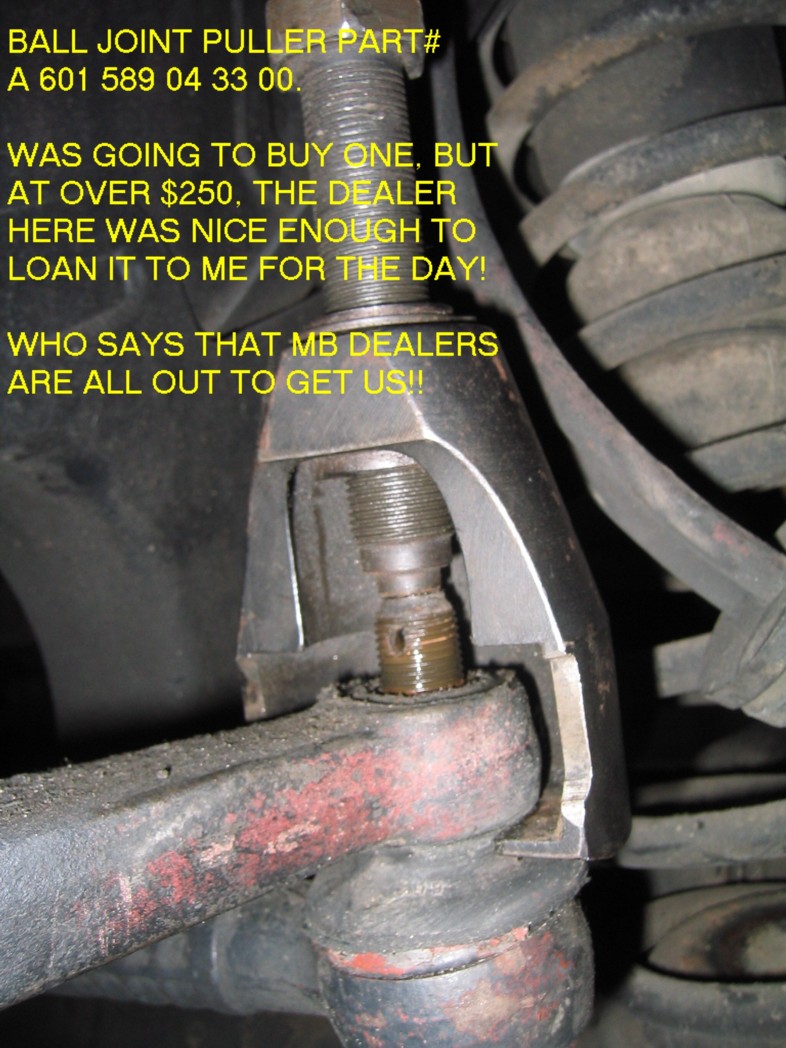

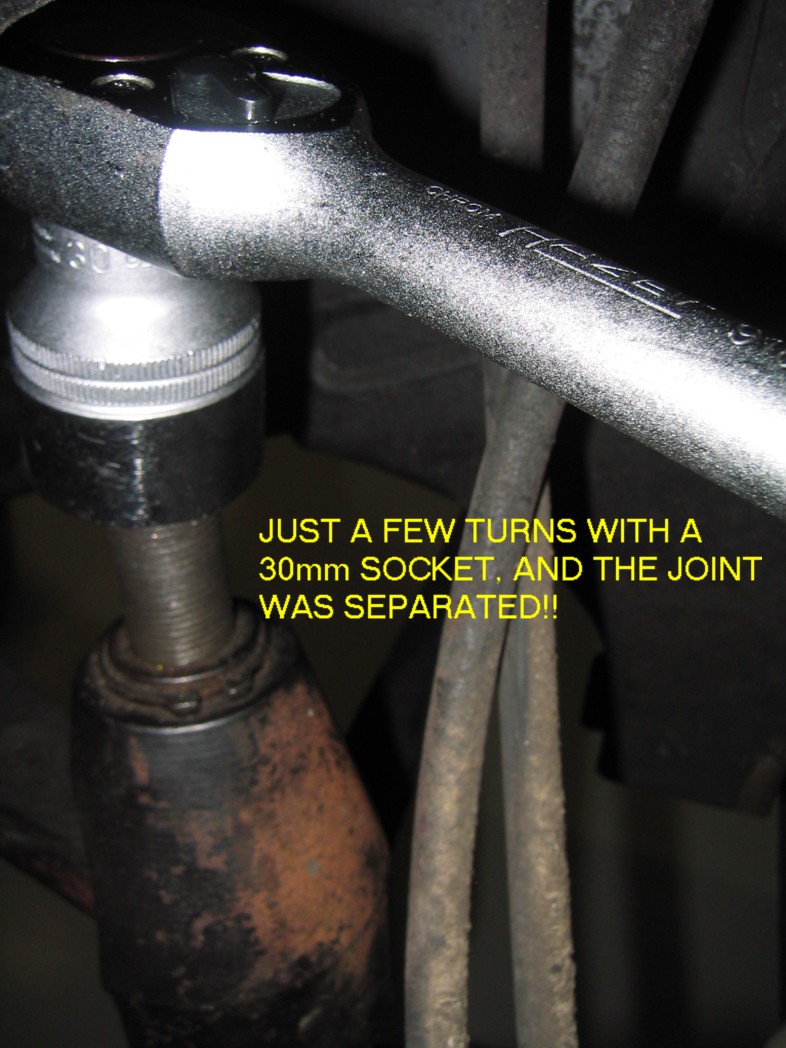

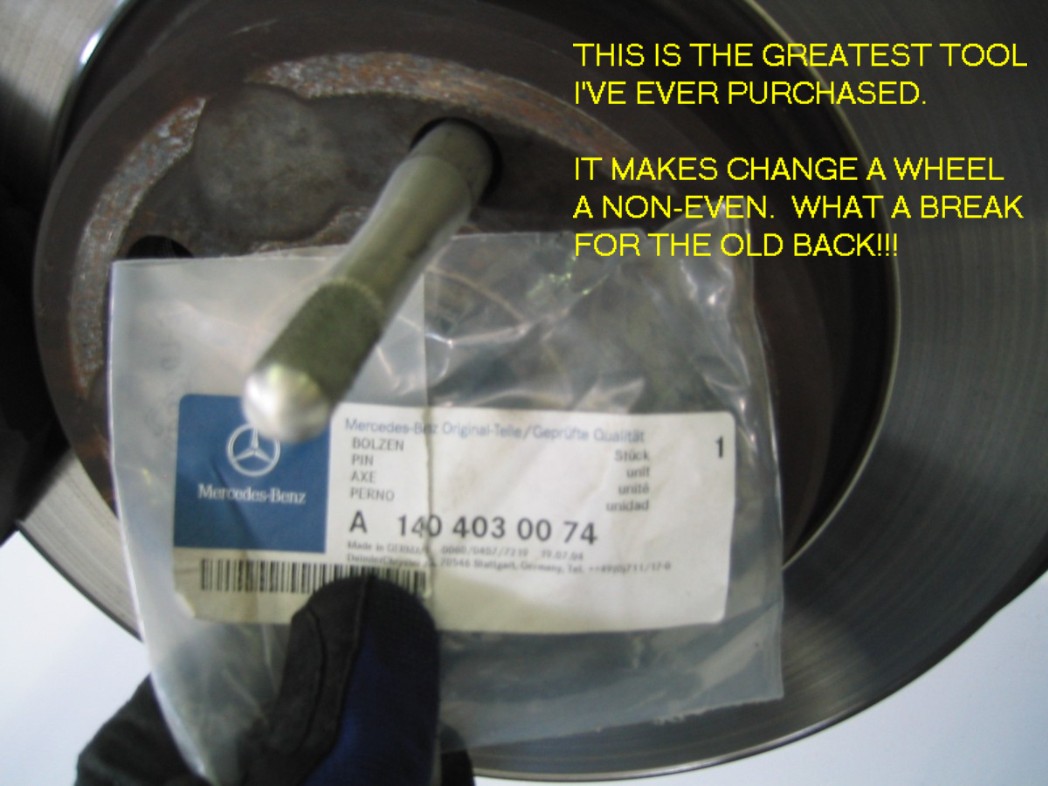

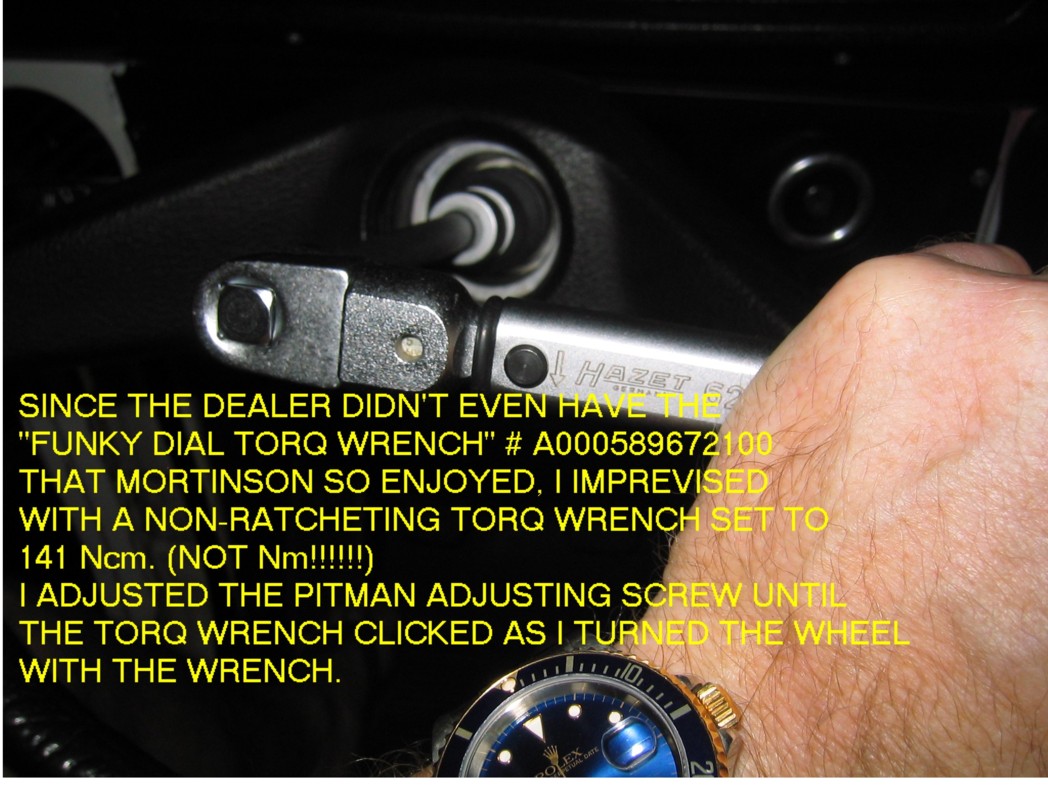

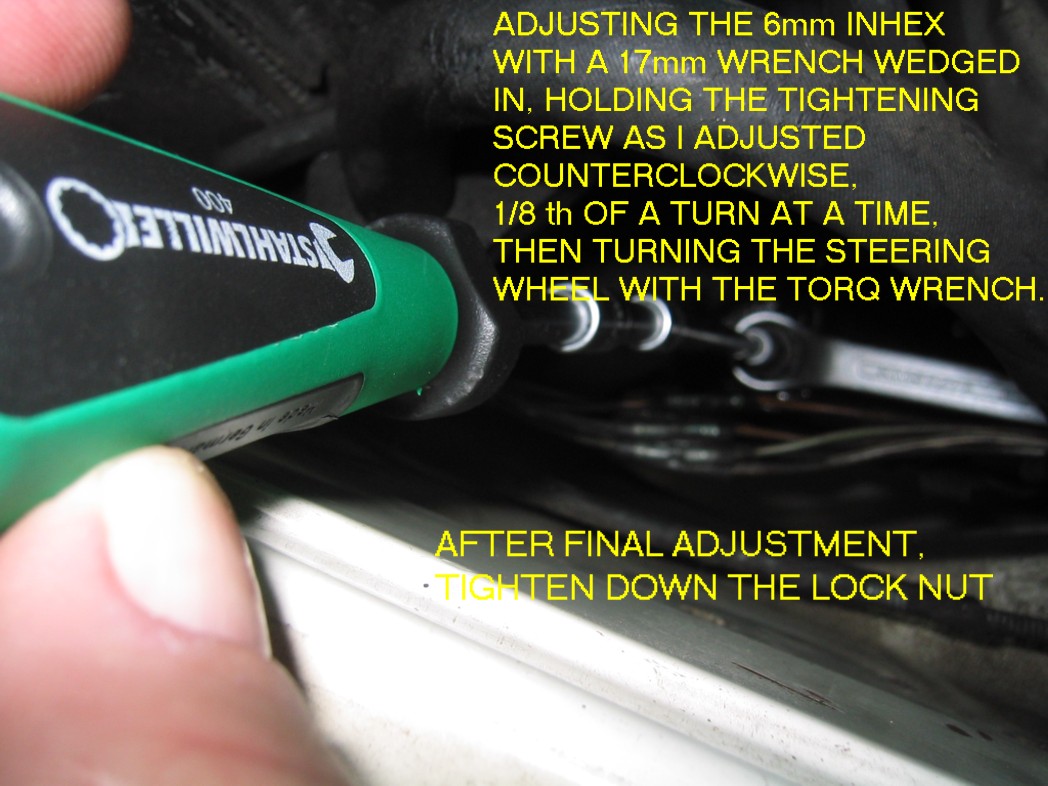

| G-AMG G-Class DIY Host Date registered: May 2006 Location: South Texas Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350  | PHOTO DIY OF PITMAN ARM ADJUSTMENT Greetings. Since DUTCH was nice enough to share the Workbook method of Pitman Arm Adjustment, to help me with my sloppy steering, I thought I would share a photo layout of my rendition of the repair. As a novice mechanic, it is geared more for the lower end ability person interested in trying it themselves (at their own risk of course). It was a very easy job, done in under an hour. This is just a tiny way of me being able to "Give Something Back" to those I have solicited help from in the past. I am always up for comments/suggestions. This is my first attempt at any kind of image uploading, so be gentle!! (1.JPG) (1A.JPG) (2.JPG) (3.JPG) (4.JPG) (5.JPG) (6.JPG) (7.JPG) (7A.JPG) (8.JPG) (8A.JPG) (8b.jpg) (8C.JPG) (8D.JPG) (8e.jpg) (8f.jpg) (8G.JPG) Attachments ----------------  1.JPG (191KB - 161 downloads) 1A.JPG (131KB - 143 downloads) 2.JPG (91KB - 134 downloads) 3.JPG (133KB - 144 downloads) 4.JPG (195KB - 129 downloads) 5.JPG (154KB - 148 downloads) 6.JPG (154KB - 150 downloads) 7.JPG (244KB - 147 downloads) 7A.JPG (137KB - 128 downloads) 8.JPG (124KB - 141 downloads) 8A.JPG (183KB - 142 downloads) 8b.jpg (154KB - 139 downloads) 8C.JPG (202KB - 125 downloads) 8D.JPG (179KB - 141 downloads) 8e.jpg (131KB - 133 downloads) 8f.jpg (120KB - 149 downloads) 8G.JPG (134KB - 143 downloads) | |
| ||
| ||
| Greg S. Regular Date registered: Jul 2006 Location: Newfoundland Vehicle(s): 1985 300GD, 1973 Unimog 416 DOKA Posts: 51  | Re: PHOTO DIY OF PITMAN ARM ADJUSTMENT Awesome job on the photos! Super clear and detailed. I wish I had the patients to stop and take pictures while doing the work! Then again I wish I had a camera that worked.....doh! PS nice Rolex  Edited by Greg S. 11/20/2006 5:33 AM | |
| ||
| ||
| ||
| ||
