| Photo DIY- Squeeky Door Lube Locations
Since purchasing Vlad's "WunderPaste", I have gone from annoying squeeks and rattles, requiring re-lubing every few MONTHS... to NO squeeks with a protection lasting MORE THAN A YEAR.
I had several pics scattered on various posts which I conglomerated into one.

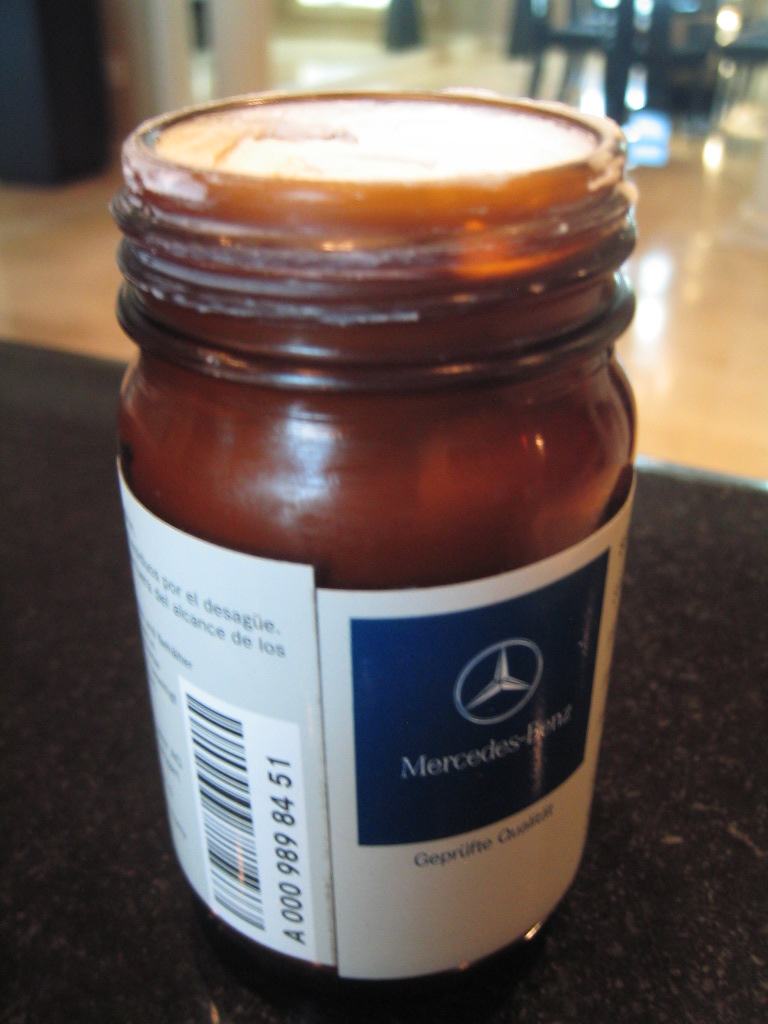

The first two pics show the MB paste A 000 989 84 51 and the scant amount needed to do the job.

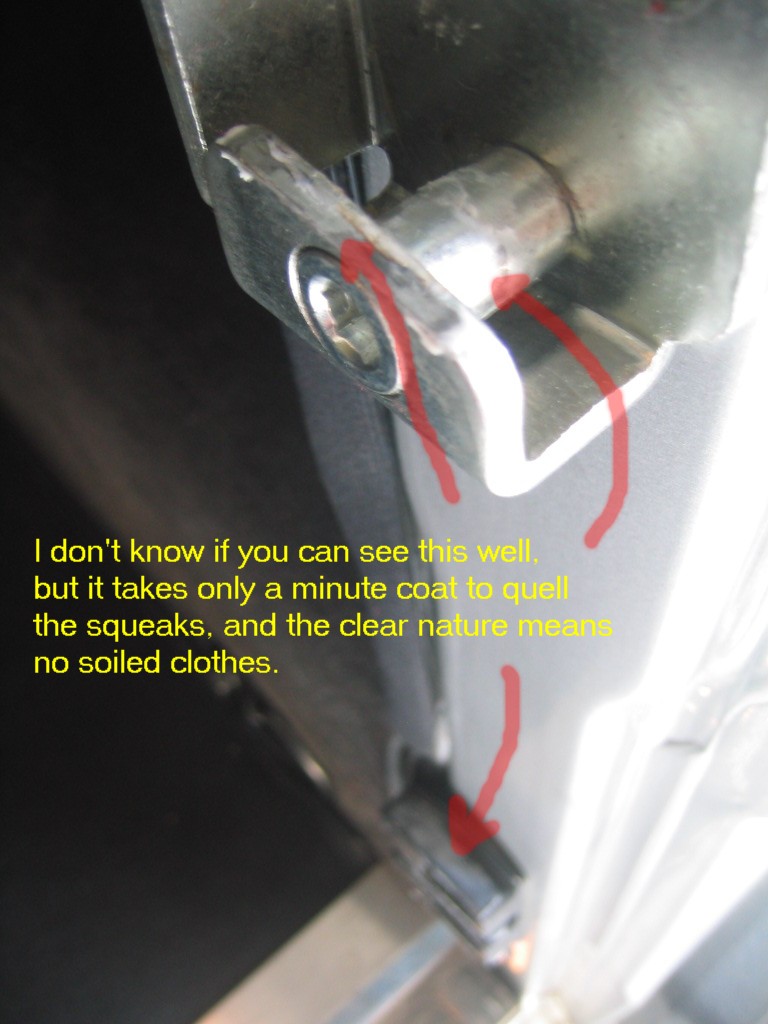

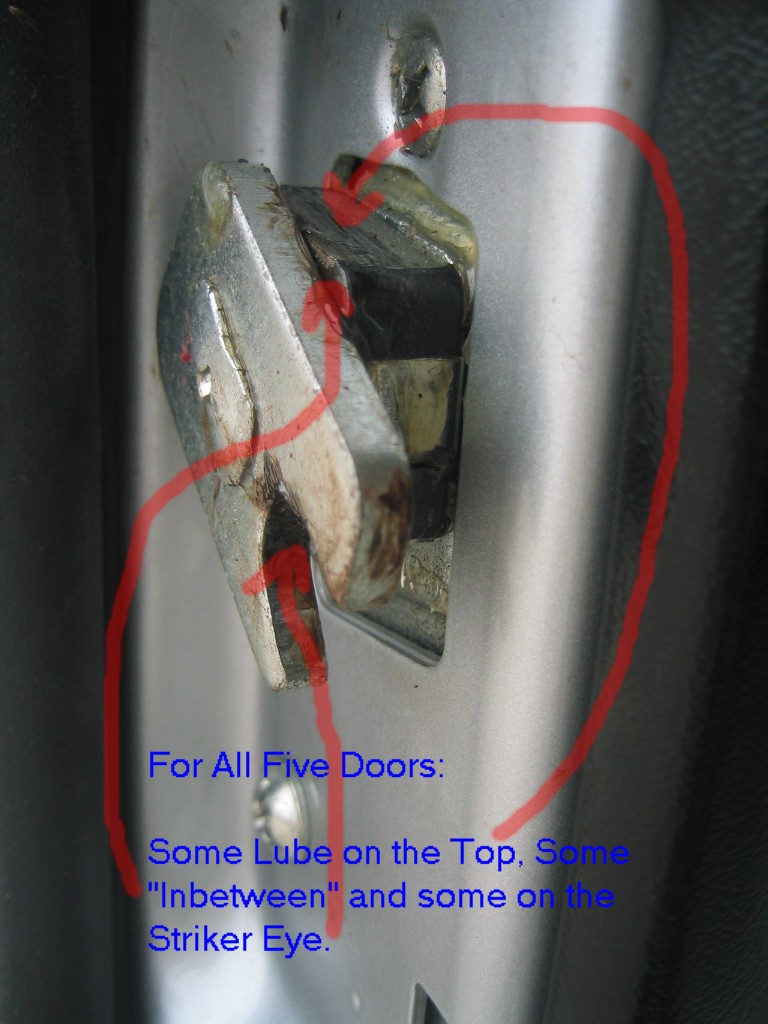

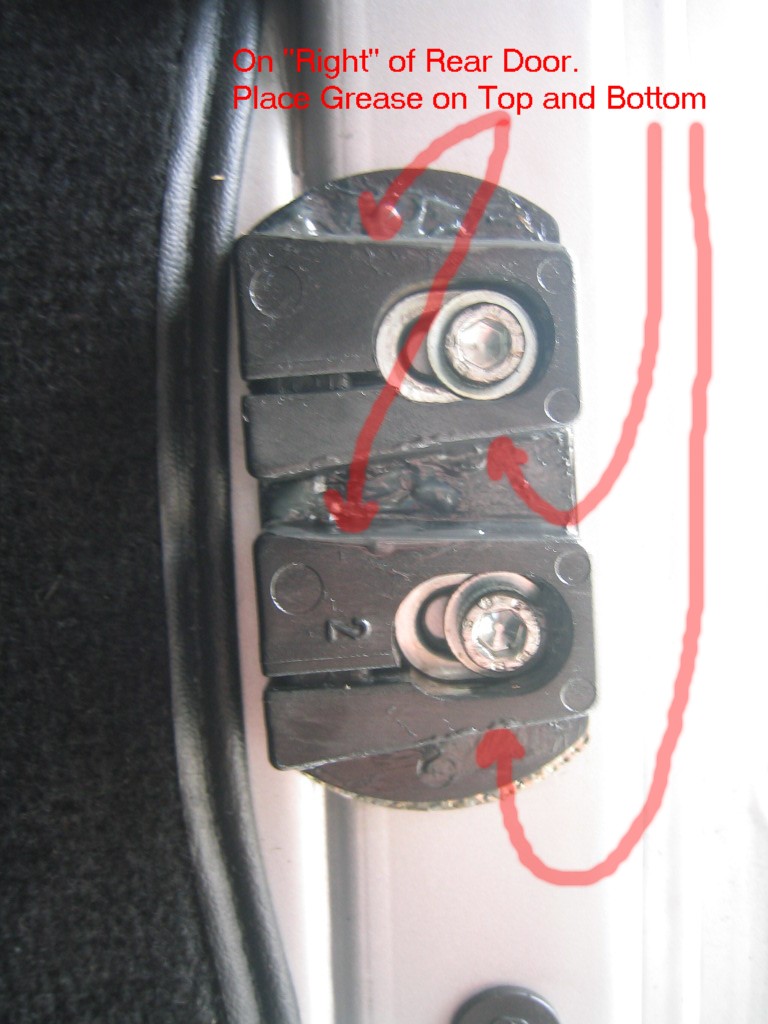

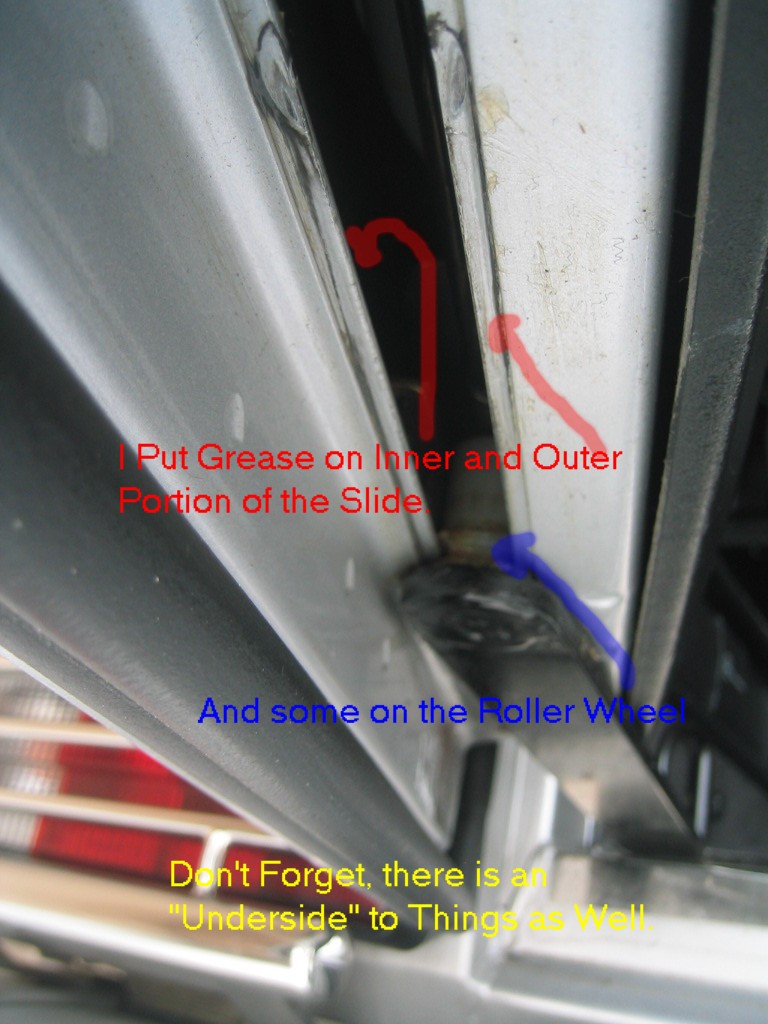

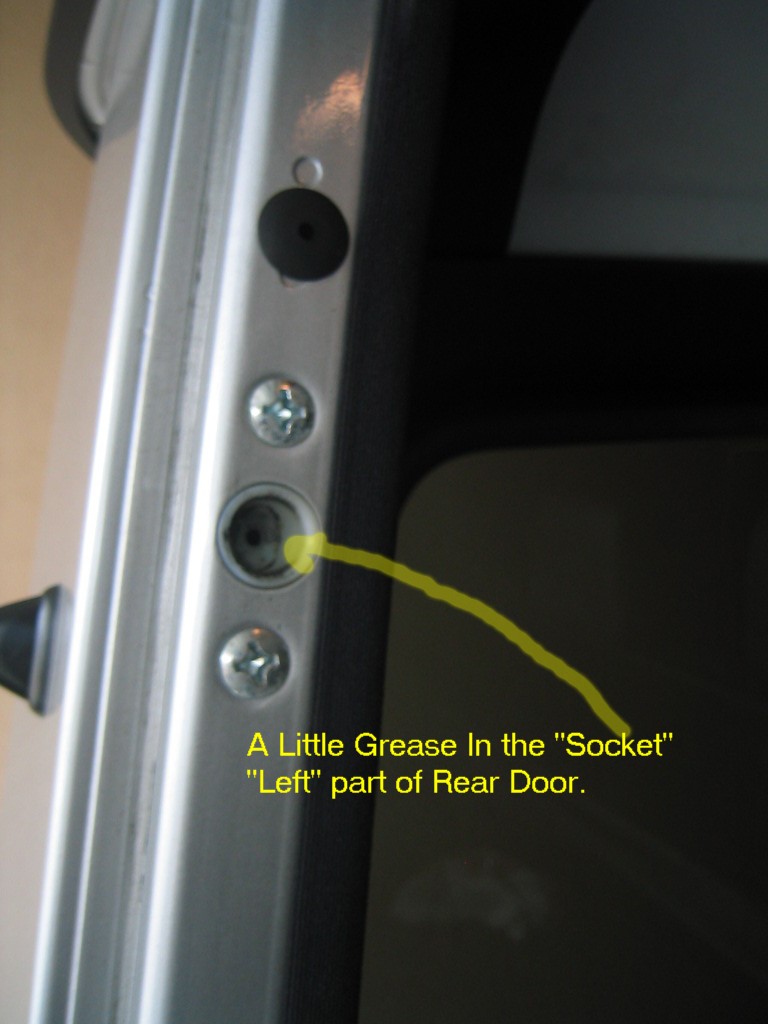

The later pics show the lube points with the OLD grease present. I just used a cloth to remove every trace of the old material, prior to using the MB Paste.
In terms of the Door Rubber Seals themselves, I just use Meguires Vinyl and Rubber Conditioner to keeps things quiet. I have tried the MB paste on the rubber seals and have been disappointed.
 (IMG_4747.JPG)
 (IMG_4748.JPG)
 (1.JPG)
 (2.JPG)
 (3.JPG)
 (4.JPG)
 (5.JPG)
Attachments
----------------
|
|
| |
|
DUTCH
Administrator Doppelgänger
Date registered: Apr 2006
Location: US, GA, Atlanta
Vehicle(s): 2015 Audi Q7 3.0 TDI,2018 Sprinter
Posts: 9963
| Rear Door Clunk
There is no question that the lube, even though a bit pricey, is well worth it. It will eliminate a lot of objectionable noises.

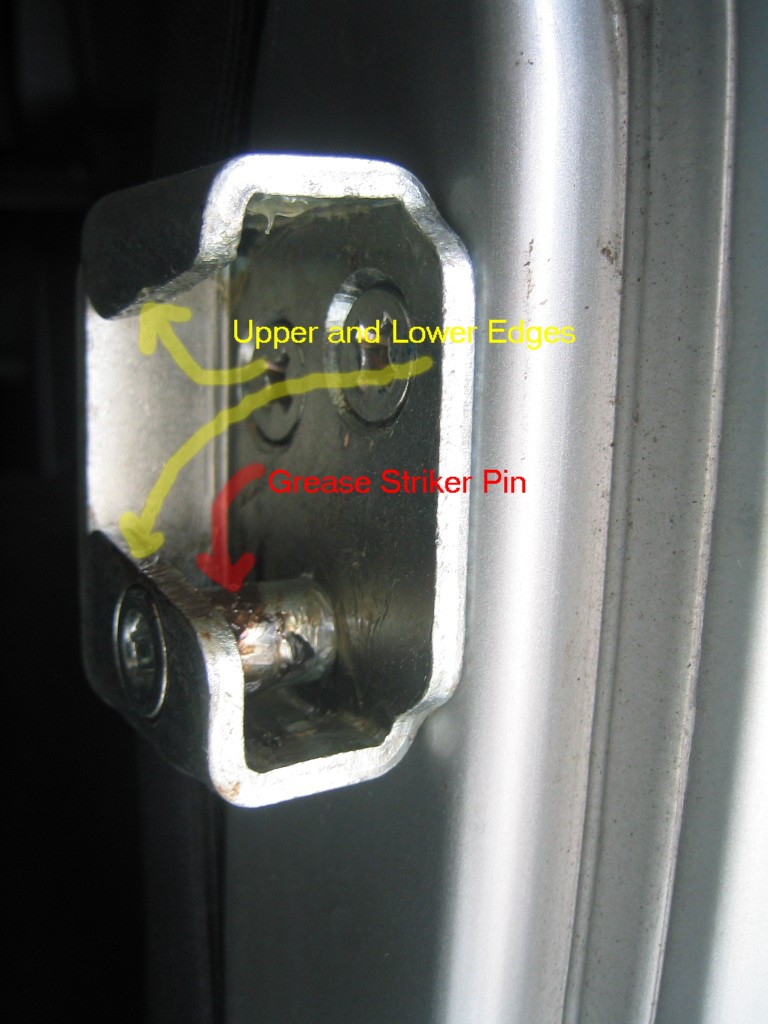

And a little easy adjustment to that wedge shown in 1.jpg will further eliminate any clunking of that rear cargo door.
1.) Slightly loosen the two hex head (Allen) screws - just enough to be able move it with some force. Not enough to be sloppy loose.
2.) Climb in the back and close the door tightly.
3.) Use a 1/4" piece of wood to tap that wedge firmly back against the door wedge. Be sure that you've seated it firmly against the door wedge.
4.) Open the door and tighten the Allen screws.
Excess play in the door latch and the source of the rear door clunk is now removed. |
|
| |
|
Ericdy
Member
Date registered: Jan 2013
Location: Christchurch, New Zealand
Vehicle(s): 1992 300GE LWB
Posts: 8
| RE: Photo DIY- Squeeky Door Lube Locations
Amazing what a difference the "magic paste" makes. My truck was very squeaky, however all squeaks and creaks gone after just wiping a bit on all the areas as shown on this thread. Thank you very much for this information it has saved me a lot of time and money! Not to mention making driving the truck even more of a joy, squeaks and rattles are a pet peeve of mine.
MB Silicone Paste, P/N A.000.989.84.51
Cheers!
Eric |
|
| |
|
G-AMG
G-Class DIY Host
Date registered: May 2006
Location: South Texas
Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350
| Re: Photo DIY- Squeeky Door Lube Locations
Eric,
Glad you now have a nice quiet ride!
It is also surprising how LONG that particular paste lasts. I don't think I've re-applied in nearly 2 years!! |
|
| |
|
Silver g500
Regular
Date registered: Nov 2013
Location: Amelia Island, FL
Vehicle(s): 2003 G500, 1998 Volvo V70
Posts: 64
| Re: Photo DIY- Squeeky Door Lube Locations
Purchased this product about a month ago to deal with rear door creak issues. Have applied to all doors, with great success.
Pricey but very good results. |
|
| |
|
DiscoDino
Member
Date registered: Nov 2011
Location: UAE, Lebanon
Vehicle(s): '12 G500, '84 RRC 2dr, '91 D110 CSW, '83 D110 HCPU
Posts: 25
| RE: Photo DIY- Squeeky Door Lube Locations
So after 33,000km from brand new in July 8 2012, I've taken my G500 into the dealership for at LEAST 5 times for squeaks that A $100K car shouldn't have (mind you I've put it through its paces pretty well).
Finally I caved and bought this grease...They had one unit in stock for a little over $100...I got a "preferred customer discount and got it at under $70...it's all good..."there is a thread on pointed three that said it's the cat's meow!".
Well, today I cleaned up all the "black" grease that has been applied in previous attempts...I could not bear the squeaks that were coming from the rear door...as if in an old wooden ship creaking and moaning under the pressures of the ocean...and I applied a small amount on all the mentioned areas (thanks a bunch to the OP...great DIY thread).
So...took it immediately for a ride...the good news is that the rear door is now SILENT...and I mean 100% silent!...Bad news is that now I can hear other noises :)...so I got back from the trip around the house and did all 4 doors...yesterday I installed a new set of springs (Iron Man +2")...I guess they need to settle as well (they ride great and compliment the King 2.5s very well).
Overall...I'm astonished at how easy this worked...now looking at how long it'll last...
Thanks again!
Nadim |
|
| |
|
G-AMG
G-Class DIY Host
Date registered: May 2006
Location: South Texas
Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350
| Re: Photo DIY- Squeeky Door Lube Locations
Dino,
Glad to hear this solved your Squeaks! Like I said per above... I don't think I have re-applied for nearly 2 years. |
|
| |
|
DiscoDino
Member
Date registered: Nov 2011
Location: UAE, Lebanon
Vehicle(s): '12 G500, '84 RRC 2dr, '91 D110 CSW, '83 D110 HCPU
Posts: 25
| RE: Photo DIY- Squeeky Door Lube Locations
So now that the vehicle is MUCh quieter...I can hear a slight squeak coming "in front of me" (Dashboard &/or engine bay)...is that the infamous top shock mount? i recall that came out as a "thump" rather than a squeak...
Any other ideas what to lube there? |
|
| |
|
atg
Veteran
Date registered: Nov 2014
Location: Los Angeles
Vehicle(s): 2005 G55, 1985 300tdt
Posts: 129
| Re: Photo DIY- Squeeky Door Lube Locations
Great thread. Appreciate the striker adjustment info for tailgate also. Thanks. |
|
| |
|
atg
Veteran
Date registered: Nov 2014
Location: Los Angeles
Vehicle(s): 2005 G55, 1985 300tdt
Posts: 129
| Re: Photo DIY- Squeeky Door Lube Locations
Anybody add those sill plates from the g63 to an older G? Just wondering if they make any difference.
Edited by atg 11/28/2014 11:34 PM
|
|
| |
|
beepers90
Regular
Date registered: Dec 2006
Location: charlotte, nc
Vehicle(s): 02 G500, 05 C230 Kompressor
Posts: 52
| Re: Photo DIY- Squeeky Door Lube Locations
^a guy in germany did it Hansehl I beleive. They are from the Armored G's a plate on the bottom of the door and on the sill. It helps with the extra weight of the door and would prevent rusty rocker/sillls |
|
| |
|
kotton
Regular
Date registered: Sep 2014
Location: California, Orange County
Vehicle(s): 2006 G-500
Posts: 84
| Re: Photo DIY- Squeeky Door Lube Locations
I hate to necro thread the forums, but thank God I found this because my '06 G500 sounded like the flying dutchman since Ive purchased it. I bought this lube for $70 with free shipping from ebay and now the Gwagon is completely silent! |
|
| |
|
ychung
Veteran
Date registered: Aug 2015
Location: SO CAL
Vehicle(s): 2004 G500, 2014 ML350, 2008 S550
Posts: 196
| Re: Photo DIY- Squeeky Door Lube Locations
I just want to thank you guys for this simple but great DIY information.
I've bought a "WUNDER PASTE" and went thru all five doors and all squeaks are gone.
I also had clunking noise from cargo area whenever I went thru bumps and holes, but it's all gone now too after adjusting rear door striker per instruction by Dutch |
|
| |
|
amg55driver
New user
Date registered: May 2017
Location: Hanover, MD
Vehicle(s): G63 AMG
Posts: 4
| Re: Photo DIY- Squeeky Door Lube Locations
its funny, this is my first post, and I love this stuff!
my rear doors and rear trunk was squeeking, and with this paste, the squeek is gone!
but i have to say, 1 out of 10 times, when I or my wife close the front doors (or open), touching the greese on the doors. haha |
|
| |
|
Gfancanada
New user
Date registered: Dec 2017
Location:
Vehicle(s):
Posts: 3
| RE: Photo DIY- Squeeky Door Lube Locations
Dear Forum Users,
I am new to forum and appreciate the excellent advice which appears. The posted photos are the really helpful.
I would like to lubiricate my door locks and hood latch with the suggested MB Silicone Paste 000 989 84 51 but understand from this forum that it has since been discontinued.
My issue, like many others, is noise when going over bumps on a G 63 2017. Has anyone found a suitable replacement?
Thank you kindly,
|
|
| |
|
G-AMG
G-Class DIY Host
Date registered: May 2006
Location: South Texas
Vehicle(s): '04 G55, '80 280GE, '99 S420, '98 E320, 2011 E350
| Re: Photo DIY- Squeeky Door Lube Locations
Don’t know “who” said it was NLA...
But even *IF* NLA from a dealer?? You can find it through numerous online vendors |
|
| |
|
Gfancanada
New user
Date registered: Dec 2017
Location:
Vehicle(s):
Posts: 3
| Re: Photo DIY- Squeeky Door Lube Locations
Dear G-AMG,
Called the dealer this morning (I live in Canada). They said no longer available and no listed replacement part. Realize that you are Texas. Are you or other forum users aware of any Canadian suppliers that would carry the White Silicone Paste.
Thank you kindly, |
|
| |
|
DUTCH
Administrator Doppelgänger
Date registered: Apr 2006
Location: US, GA, Atlanta
Vehicle(s): 2015 Audi Q7 3.0 TDI,2018 Sprinter
Posts: 9963
| Re: Photo DIY- Squeeky Door Lube Locations
Gfancanada - 1/8/2018 8:17 AM
Dear G-AMG,
Called the dealer this morning (I live in Canada). They said no longer available and no listed replacement part. Realize that you are Texas. Are you or other forum users aware of any Canadian suppliers that would carry the White Silicone Paste.
Thank you kindly,
It shows a still available from this MBUSA dealer:
https://www.oediscountparts.com/parts/index.cfm?searchText=000+989+8... |
|
| |
|
Gfancanada
New user
Date registered: Dec 2017
Location:
Vehicle(s):
Posts: 3
| Re: Photo DIY- Squeeky Door Lube Locations
Dear Dutch,
Thank you, |
|
| |
|
hhuytho
New user
Date registered: May 2016
Location:
Vehicle(s):
Posts: 2
| Re: Photo DIY- Squeeky Door Lube Locations
I’ve been trying to locate the lube but to no available, both online and local dealers. The squeaking and creaking are becoming very annoying now. If anyone has some spare amount of this lube available, I would like to buy it from you. I’m willing to pay generously for both the item and your time. Please let me know. Thanks in advance. |
|
| |
